A Complete Description of PVC, PP Material Honeycomb Oblique Tube Filler
PVC, PP Material Honeycomb Oblique Tube Filler
Loren Industry Co., Ltd, located on the shores of the beautiful Lake Tai, is dedicated to the research, development and production of water and drainage equipment and equipment. To a number of national scientific research institutions for the technical backing, relying on comprehensive technology and management of high-quality staff, so that enterprises to maintain the industry's leading position.
Science and technology are the first productive forces. Loren Group has established a long-term technology, with a number of national scientific research institutions and industrial and mining enterprises business cooperation Since its establishment 8 years ago by committing itself to market research and new product development. With over one thousand performance Site such as the national petroleum, chemical, light, Textile printing and dyeing, electricity, coal, steel, paper, pharmaceutical, tap water and other industries, excellent product quality and perfect after-sales service awarded by users.
The Company is a dynamic growth of enterprises, quality and credibility is its eternal pursuit/ Loren Group is a community with a high sense of responsibility and dedication to society, with a firm belief and full courage, with wisdom and knowledge, with the most active ideas, the latest technology and the most scientific management to create the enterprise's glory and grasp the future of the enterprise.

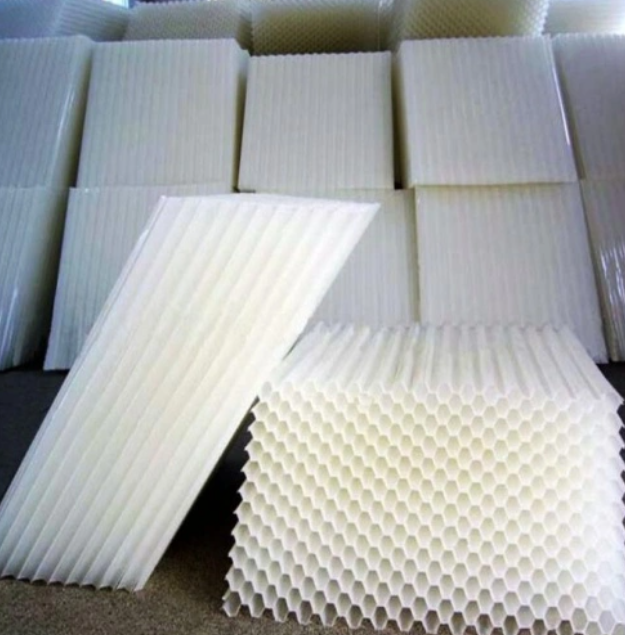

Our company produces hexagonal honeycomb fillers with oblique and straight tube forms. The materials are Mainly Two Kinds， namely polypropylene (PP) and PVC
The oblique tube is mainly used for all kinds of precipitation and sand removal, and is a water treatment device with a wide range of surfaces and maturity in water supply and drainage engineering for more than ten years. It has a wide range of applications, high treatment effect, small footprint and other advantages, suitable for inlet sand removal, general industrial and domestic water precipitation, sewage precipitation, oil separation and tailings concentrate treatment.it can be adopted as for both new projects. And the transformation of existing old pools to achieve good economic benefits.
Key Characteristics
1. Large wet week, small hydroradius,
2.The layer flow state is good. Particle settling is not disturbed by turbulence.
3. When the length of the oblique tube is 1 meter, the payload is designed at 3-5 tons/m2. V0 is controlled in the range of 2.5-3.0 mm/s and the water quality is optimal.
4. The use of glass-steel honeycomb oblique tube at the water intake, the length of the tube at 2.0-3.0 m, can be 50-100 kg / cubic meters of high turbidity of mud and sand content safe operation treatment
5. The use of oblique tube precipitation pool, its processing power is 3-5 times that of flat-flow precipitation pool, is 2-3 times the acceleration of clarification pool and pulse clarification pool.
Straight tube is mainly used for biofiltration tanks and high-load biofiltration tanks, tower biofiltration tanks, immersion biofiltration tanks (also known as contact oxidation tanks) and microbial carriers of bio-turntables, for biochemical treatment of industrial organic wastewater and urban sewage.
6. The treatment efficiency is higher than the activated sludge method, the general hydraulic load is 100-200M3/M2. day. Organic load of 2000-5000 g/m3, thus reducing the footprint
7. Aeration strength is lower than the activated sludge method, and no sludge reflux is required, so it can reduce power consumption and simplify management.
8. Less sludge volume- reduces the post-treatment workload such as sludge dehydration.
9. The resulting sludge settlement is good, which is conducive to the removal of the latter suspension
10. A wide range of water quality can be adapted. The impact load and endurance of water quality and water mutation are strong. Maintain a stable treatment.
11. Pharmaceuticals carry out scientific operation and management, regular flushing of sewage, generally do not cause clogging
Reinforced straight tube can also be used as a natural or mechanical ventilation cooling tower cooling device, due to larger than the surface area, high porosity, low ventilation resistance, thermal capacity is much higher than the cement grid and wood grid structure. Also because of good heat resistance, the general plastic oblique corrugated filler use cycle is longer, honeycomb straight tube can also be used as insulation sound insulation.
Specification of Lamella Clarifier Filler
Material | Tube DN Size (mm) | Thick (mm) | Specific Area (m2/m3) | Gap Ratio (m2/m3) | Reference Weight (kg/m2) |
PVC | 25 | 0.5 | 236.0987 | 0.9487 | 80 |
30 | 0.5 | 169.4159 | 0.9570 | 64 |
40 | 0.5 | 148.4537 | 0.9875 | 48 |
50 | 0.5 | 119.0055 | 0.9739 | 40 |
60 | 0.5 | 99.3071 | 0.6781 | 33 |
PP | 25 | 0.5 | 236.0987 | 0.9487 | 37 |
30 | 0.5 | 169.4159 | 0.9570 | 42 |
35 | 0.5 | 153.7468 | 0.9823 | 37 |
40 | 0.5 | 148.4537 | 0.9875 | 33 |
50 | 0.5 | 119.0055 | 0.9739 | 26 |
60 | 0.5 | 99.3071 | 0.6781 | 22 |
Comment:
1. The PVC, PP thickness can be tailored design
2. The Length of the filler normally Have 900/1000/1200mm three size, for special size, need welding forming
3. The Diameter of Tube in clarifier can be as per clarifier capacity and sludge thickness to choose right one
