Waste Treatment Plant PVDF MBR Membrane

Payment Type: T/T

Supply Ability: 20000 Set Per Months

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LI-MBR-10

Brand: Loren and Other agented famous brand

Applicable Industry: Food Shop, Manufacturing Plant, Food &Amp; Beverage Shops, Building Material Shops, Restaurant, Energy &Amp; Mining, Construction Works, Food &Amp; Beverage Factory, Hotels, Garment Shops, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 3 Years

Core Components: Pump, Pressure Vessel

Old And New: New

Place Of Origin: China

Warranty Period: 1 Year

Service System: Online Support

Average Pore Diameter: 0.01μm-0.1μm,

30-50% Mounting Room: Saved

Can Be Used To Replace: Secondary Clarifier

Realize Total Separation Of: HRT and SRT

Excellent: Effluent Quality

Applied In: both munucipal and industrial waste water reuse

Competitive Cost: Factory Directly Agent Price (shared )

Customized Solution: All in one Station Service

Budget Based Alternative: Solution

OEM ODM Service: Available

Product Description

LI-MBR Serious PVDF Membrane Assembly Unit

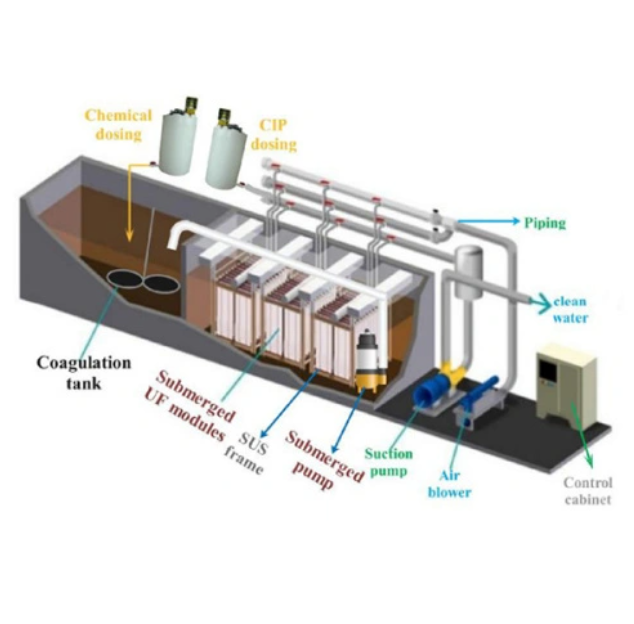

Definition Of Membrane Bioreactor MBR

The membrane element in the MBR system replaces the terminal secondary sedimentation tank in traditional Biological Treatment technology, maintains a high activated sludge concentration in the bioreactor, increases the organic load of the Biological Treatment System, and uses the excellent filtration performance of the membrane separation system to intercept the Activated sludge and macromolecular organic matter can achieve good sewage treatment effects, opening up a new path for the development of new sewage treatment processes.

Feature & Advantages of MBR Assembly

- Excellent Effluent Quality can be directly reused

- Realize Total Separation of HRT and SRT to get rid of Sludge Expansion or unstable outlet water quality

- Bear Large Shock Load Resistance

- Can Stable Run Under 3000-10000mg/L Activated Sludge Density to reduce Sludge Discharge thus to realize zero sludge discharge

- Has Certain Denitrification And Phosphorus Removal Functions due to prolonging sludge Service Time

- Save 30-50% Mounting Room or Replace Secondary Clarifier

- Can be carry on upgrading with existence pool to save RCC room

- PLC automatic Control All The System

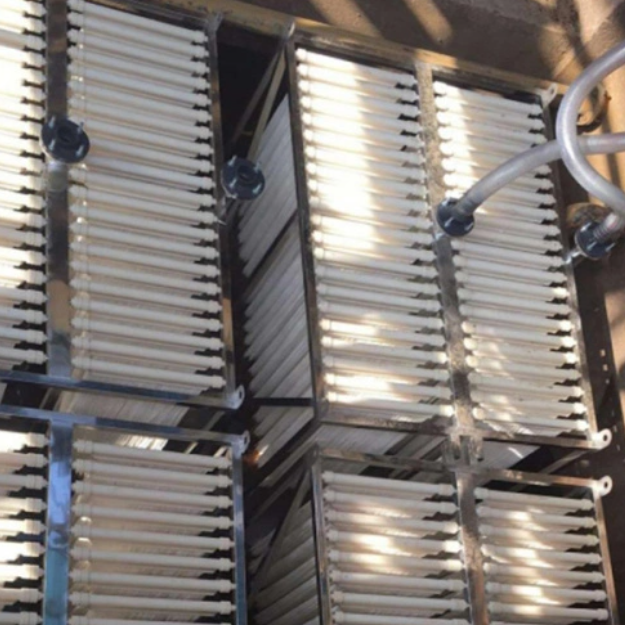

MBR Modules & Membrane Packs

-Material :PVDF

-Average Pore Diameter : 0.01μm-0.1μm,

-It Has Good Hydrophilicity And Strong Anti-Pollution Performance

-It Has Low (0.01-0.05MPa) Filtration Pressure To Save Energy Consumption

-Easy To Clean And Restore Duo To Good Drug Resistance,

-The Membrane Yarn Has High Mechanical Strength And Is Not Easy To Peel

-Easy To Be Installed Due to Modular Design

-Model: 10M2-32M2

PVDF MBR Model Selection

Model	Membrane Assembly Dimension (mm)	Effective Membrane Area(m2)	Max Capacity (m3/D)	Total Power (KW)
LI-MBR-5	600*540	5	2000	2.25
LI-MBR-10	1000*540	10	4000	2.25
LI-MBR-15	1500*540	15	6000	3.00
LI-MBR-20	1800*540	20	8000	4.50
LI-MBR-25	2000*540	25	10000	5.20

PVDF MBR Modular General Data and Run Condition

Stratification	Joint DN/ Material	DN32/ABS
	Collection Pipe Size	DN32
	Filter Way	water Pressure Or Suction
	OD/ID of Hollow Fiber	21./3.1mm
	Nominal Pore Size	1.1μm
	Fiber Bonding Material	Epoxy Resin
Filtration Efficiency	Suspended Matter＞2um	98%
	Microorganism	92%
	Product Water Turbidity	≤1NTU
	Product Water SDI	≤2.5
Work Condition	Operation Way	Intermittent Water Production
	Filtration Method	External Pressure Type
	Filtration Pressure	0.02-0.06Mpa（Negative）
	Max. Inlet Grain Size	1-2 mm
	Temp. Range	5-45 ℃
	PH Range	6-9
	Chemical Flush PH Range	1-12
	Permit Mineral Oil Content In Raw Water	≤3mg/L
	Max. Incoming Residual Chlorine Concentration	200 mg/L (max.clean agent 5000mg/L)
	Recommended Air-Water Ratio	12:1-24:1
	Design Water Production Flux	10-25 M2.h
	Sludge MLSS	3000-8000 mg/l
	Maximum Transmembrane Pressure Difference	-0.1

Design MBR Flux Selection Table

SN	Waste Water Type	Recommend Flux （L/m2h）	Comment
1	Municipal Sewage	16-25
2	General Industrial Wastewater	12-20
3	Oily Wastewater	08-15	Animal &Veg Oil≤50mg/L; Mineral Oil ≤3mg/L.
4	Difficult-to-treat Industrial Wastewater	10-15
5	Garbage Leachate	6-12	Membrane Pool ph <8

Applicant of loren UF System

-Large Municipal STP Biological Treatment

-Industrial Park Waste Water Treatment

-Pretreatment Before NF or RO System

-Metallurgy Waste Water Treatment

-Surface Water or Groundwater Treatment

-Water Supply Treatment for The Power Plant Industry

-Pharmaceutical Waste Water Disposal

-Other Industrial Waste Water Treatment

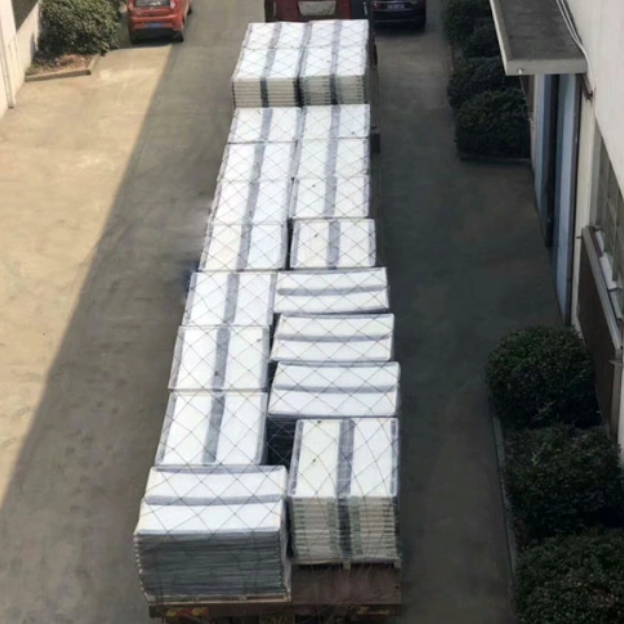

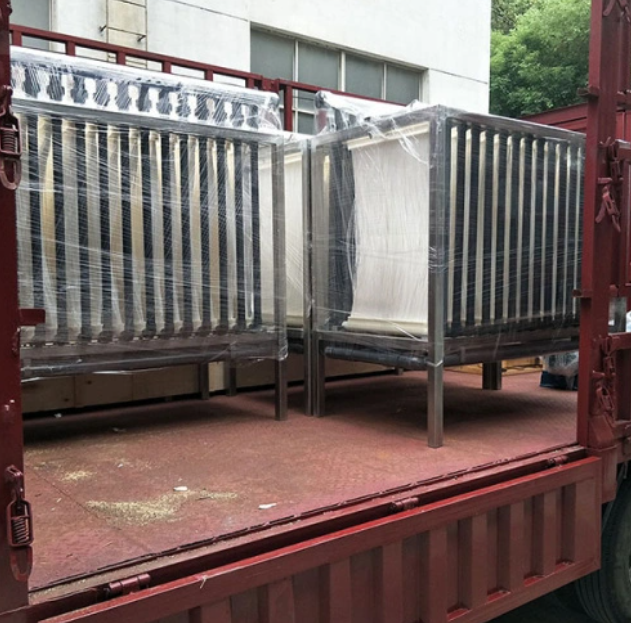

Packaging & Delivery
