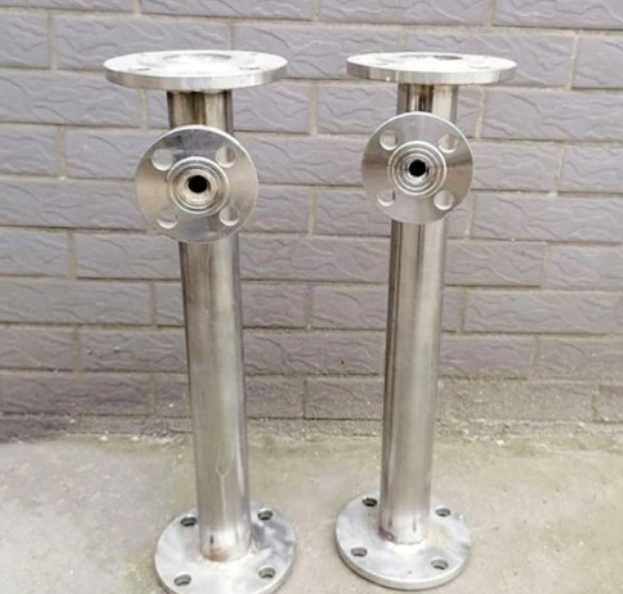

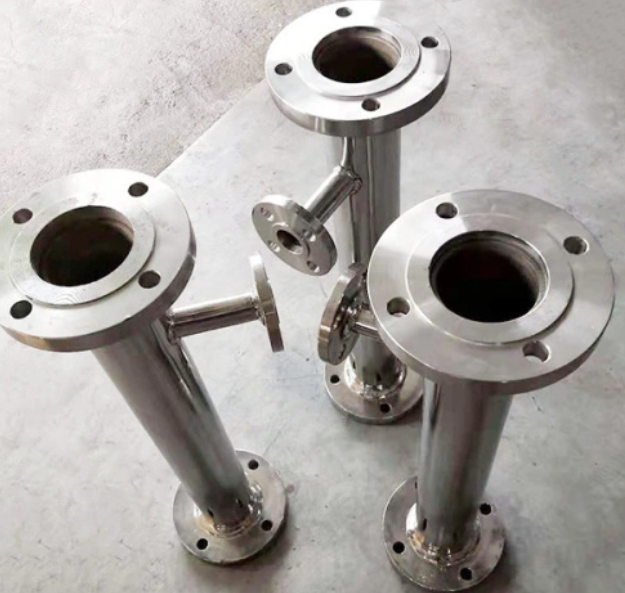

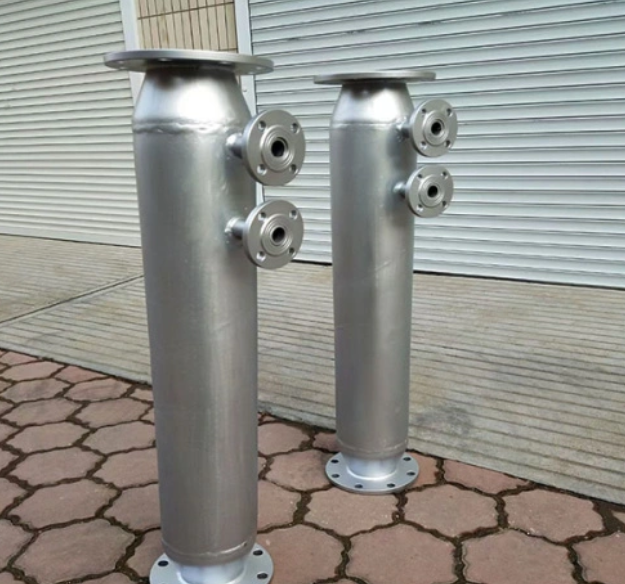

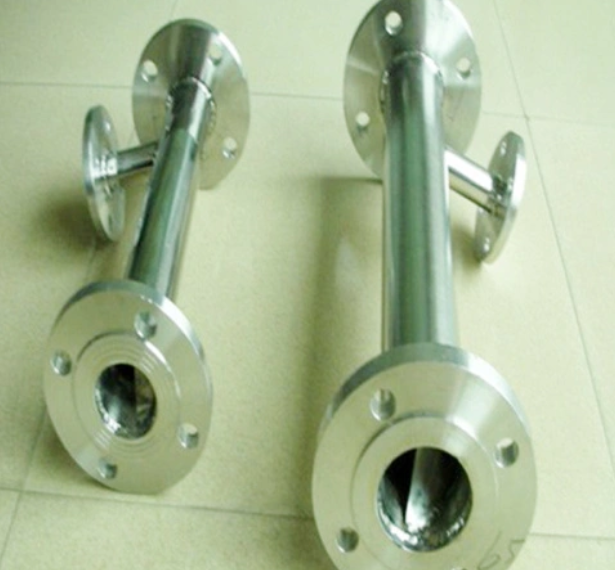

Tube Static Mixer

Payment Type: T/T

Supply Ability: 200 sets Per Months

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LTM600

Brand: Loren

Place Of Origin: China

Key Function: Chemical Dilution and Resolution

Compact: Design

Cost Effective: Characteristic compared with reaction tank

Continuous Blending Of: Fluids Without Any Intervention

Small Shear Force: Without Destroying Mixture

Mixing Effects Can Be: Calculated And Controlled

Small Mixing Distance: And Installing Space

High: Transmission Efficiency

Maintenance-Free: Due To No Moving Parts

Fast: Delivery

Product Description

Pipe Mixer

Tubular Static Mixer

Pipe Coagulation Tank

Tube Floculation Tank

Overview

Loren Pipeline/Tubular Static Mixer Is Widely Used In All Kinds Of Water Treatment And Environmental Project By Dosing Coagulant and Flocculant , Coagulant Aids, Ozone, Liquid Chlorine And Acid-Base Neutralization. It is An Ideal Equipment For Flash Mixing Of Fluid Material

Principle

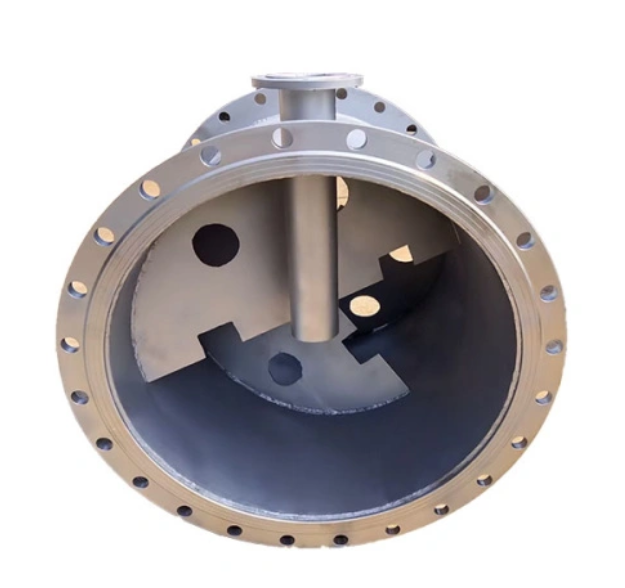

The Flow Stream Will Produce Distribution, Cross-Mixing, Counter-Swirling Function. This Will Lead To Instant Mix Of Chemical And Liquid. The Mixing Efficiency Will Reach To 90~95%. So Static Mixer Can Not Only Save Chemical Dosage But Also Improve Water Treatment Effects And Save Energy.

Features

-Simple & Compact Structure

-Cost Effective

-Quick Delivery

-Continuous Blending Of Fluids Without Any Intervention

-Small Shear Force Without Destroying Mixture

-Mixing Effects Can Be Calculated And Controlled

-Small Mixing Distance And Installing Space

-High Transmission Efficiency

-Low Pressure Drop And Energy Consumption

- Maintenance-Free Due To No Moving Parts

-Optional Installation Mode, Material And Size

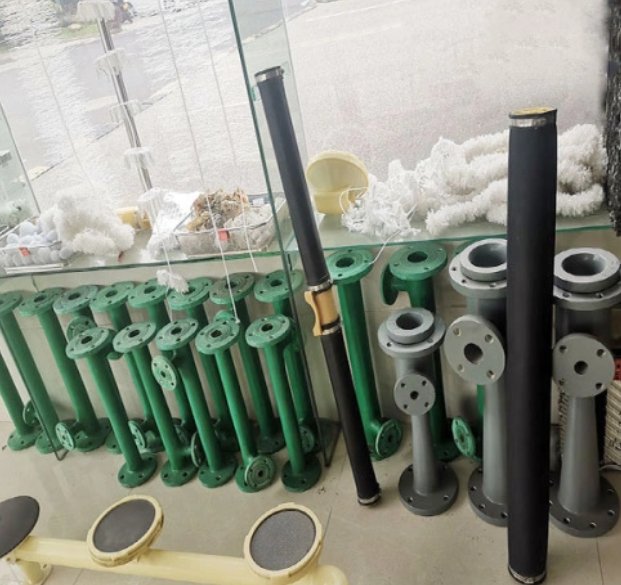

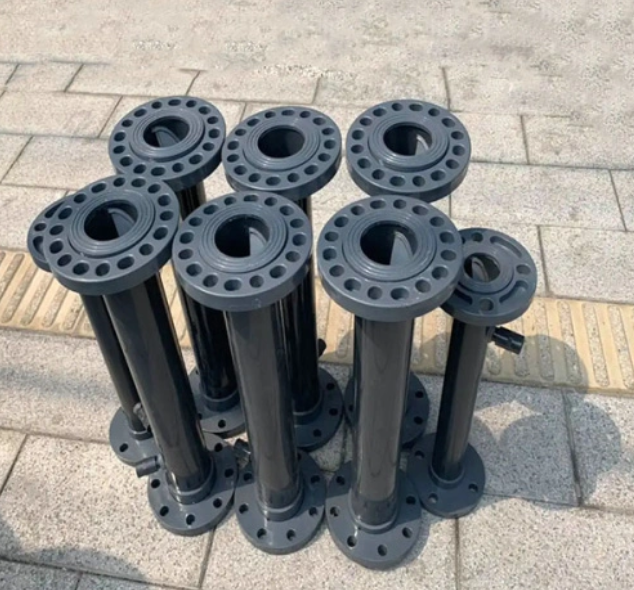

-Optional Material: Mild Steel, Stainless Steel,PTFE, FRP lining , UPVC ETC.

Applicant
-Water Treatment

-Fine Chemical Industry

-Petroleum

-Pharmaceutical

-Food

-Plastics & Synthetic Fibers

-Injection Molding

-Color Matching

-Paper Making

-Chlorine Mixing

-Solvent Deasphalting

-Acid & Alkali Neutralization

-Asphalt Oil Blending

-Industrial Naphthalene

-Liquid Hydrocarbon Sweetening

-Polymer Material Mixing

-Heat Transfer

Specification and Model Selection

Model	Max. Flow (M3)	Inner DN（mm）	Out DN（mm）	Length (mm)
LTM-10	0.3	10	20	150
LTM-15	0.6	15	32	300
LTM-20	1.2	20	10	500
LTM-25	1.8	25	50	510
LTM-32	3.2	32	65	510
LTM-40	4.5	40	80	560
LTM-50	7.0	60	165	600
LTM-65	12	75	185	650
LTM-80	18	90	200	700
LTM-100	28	110	220	800
LTM-125	44	140	250	900
LTM-150	64	162	280	1000
LTM-200	110	212	340	1300
LTM-250	180	264	395	1500
LTM-300	263	314	445	1600
LTM-350	360	366	505	1700
LTM-400	468	416	565	2000
LTM-500	1098	518	670	2200
LTM-600	1512	620	780	2600
LTM-700	2160	720	890	2900
LTM-800	2880	820	1015	3300
LTM-900	3600	922	1115	3600
LTM-1000	4320	1024	1230	4000
LTM-1200	6510	1228	1455	4700
LTM-1300	7641	1332	1575	5100
LTM-1400	8862	1436	1675	5500
LTM-1500	10173	1540	1785	5900

Comment: The Above Data Is Only For Reference
