LTSD Series Truss Truck Pump Suction Dredger

 

LTSD Series Truss Truck Pump Suction Dredger

Payment Type: T/T

Supply Ability: 50 Sets Per Three Months

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LTSD-18

Brand: Loren

Status: New

Applicable Industry: Food &Amp; Beverage Factory, Energy &Amp; Mining, Construction Works, Farms, Food &Amp; Beverage Shops, Restaurant

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Gear, Motor

Place Of Origin: China

Warranty Period: 1 Year

Productivity: 10000l/Hour, 500l/Hour, 100l/Hour, 750l/Hour, 1000l/Hour, 20000l/Hour, 2000l/Hour, 250l/Hour, 3000l/Hour, 125l/Hour, 200l/Hour, 4000l/Hour, 5000l/Hour, 7500l/Hour, 50000l/Hour, 2500l/Hour

Essential Funtion: Pump Suction Sludge in Rectangular Tank

Run Way: Back & Forth

Adjustbalbe: Sludge Discharge Sequence

Pool Floor Height: Reduced

Compact Structure: with Light Weight

Maintenance: Simple and Easy

Flexible Control: Scum Removal Volume

Running And Operation: Stalbe and Reliable

Operation Cost: Lower

Life Time: Long Lasting

Product Description

LTSD Series Truss Truck Pump Suction Dredger

Definition of Driving Type Mud Scraper Suction Machine

The Driving Type Scraper And Suction Machine Is Used For Advection Sedimentation In Sewage Treatment Plants And Waterworks. The Sludge Settled At The Bottom Of The Pool Is Scraped To The Suction Port Of The Pump, And The Sludge Is Sucked While Walking Through The Pump, And Then The Sludge Is Discharged Out Of The Pool, Which Can Be Relieved. The Pain Of Cleaning Up The Sludge At The Bottom Of The Pool.

Composition of Rake Lifting Driving Sludge Scraper

It Is Composed Of Truss Frame, Mud Collecting Device, Mud Suction Device, Driving Device, Electrical Control Device And So On.

Solid Liquid Separator Sludge Purifier Feature

-Work Back & Forth

-Suction Of Mud While Walking

-Sludge Discharge Frequency &Working Schedule Can Be Adjusted According To The Sludge Deposition At The Bottom Of The Sedimentation Tank

-Reduce Pool Floor Height

- Simple and Compact Structure with Light Weight

-Simple Pool Structure Design

-Simple and Easy Maintenance

-Lower Operation Cost

-Flexible Control The Scum Removal Volume

-Stable Running and Operation

-High Automation Control Degree

-Long Lasting Life Time

Structure &Working Principle

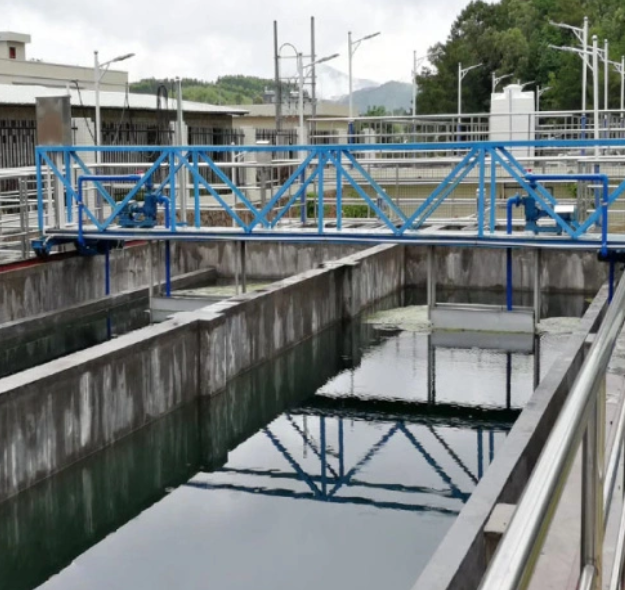

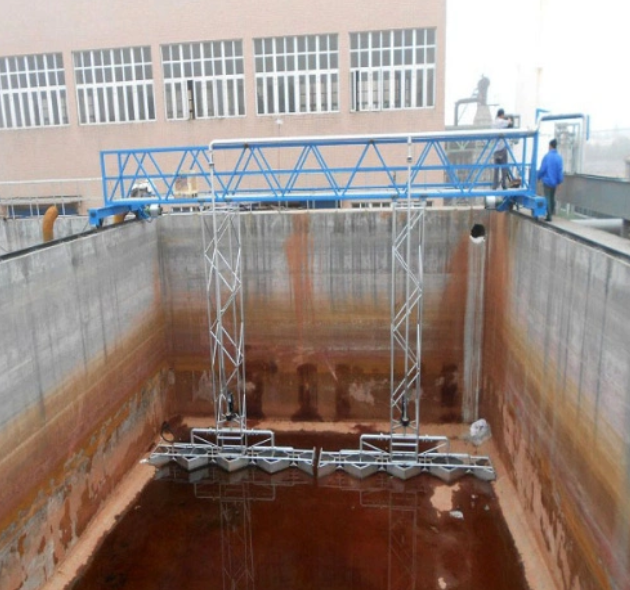

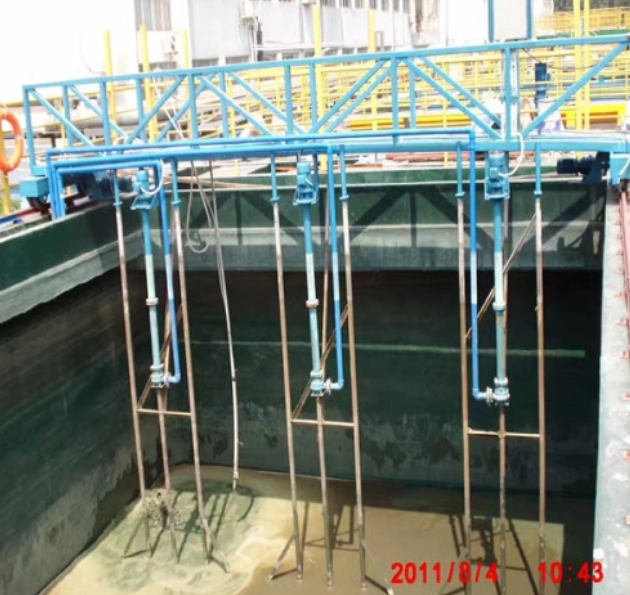

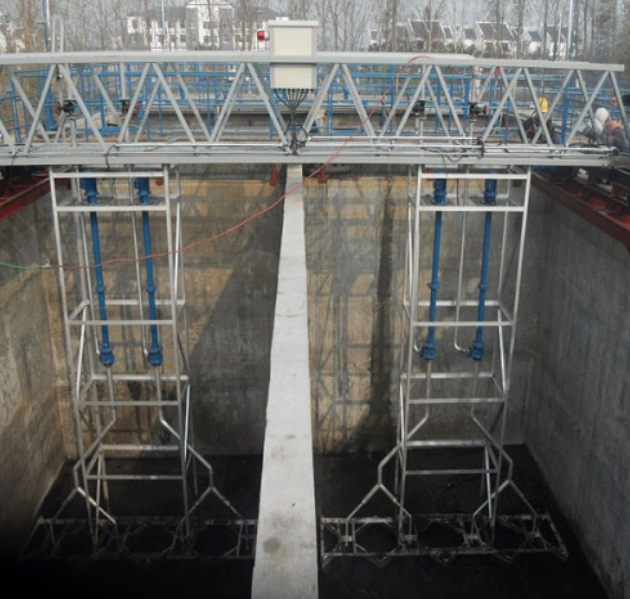

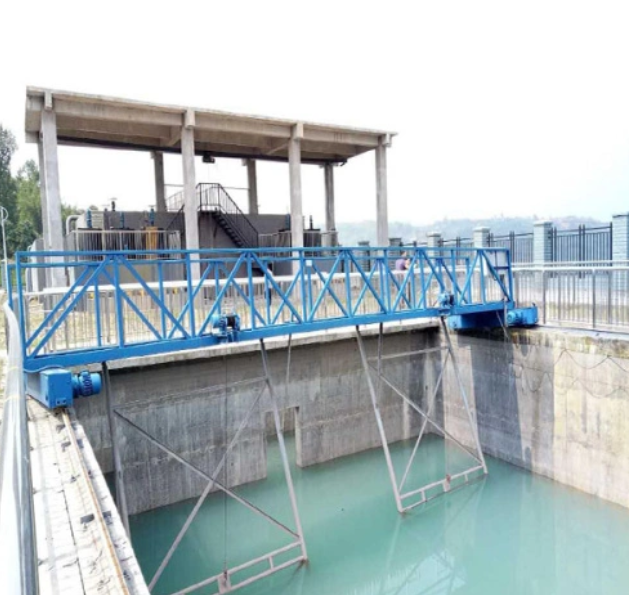

The Mud Collection Device And The Mud Suction Device Are Driven By The Drive Device With The Truss Truck, And Move Back And Forth In a Straight Line Along The Pre-Laid Tracks On Both Sides Of The Rectangular Sedimentation Tank; At The Same Time, The Mud Collection Device Continuously Concentrates The Sludge At The Bottom Of The Tank To The Suction Mud The Suction Port Of The Device, And Then The Sludge Is Discharged Out Of The Pool By The Suction Of The Pump.

Applicant In Advection Sedimentation Tank Esp. Rectangular Pool

-Removal Bottom Sludge and Oil Grease or Jelly In Municipal Sewage

-Removal Bottom Sludge and Oil Grease or Jelly In Waterworks

-Removal Bottom Sludge and Oil Grease or Jelly In Industrial Waste Water

-Other Water Supply and Drainage Project

Model Instruction and Specification

LTSD Serious Truss Truck Pump Suction Dredger

Model	Scraper Width (M)	Pool Width (MM)	Orbit Distance (M)	Linear Speed（M/Min）	Drive Power (kw)
LTSD 4	4	3700	4	1.0-1.5	0.55
LTSD 6	6	5700	6	1.0-1.5	0.55*2
LTSD 8	8	7700	8	1.0-1.5	0.55*2
LTSD 10	10	9700	10	1.0-1.5	0.55*2
LTSD 12	12	11700	12	1.0-1.5	0.55*2
LTSD 14	14	13700	14	1.0-1.5	0.55*2
LTSD 16	16	15700	16	1.0-1.5	0.75*2
LTSD 18	18	17700	18	1.0-1.5	0.75*2
LTSD 20	20	19700	20	1.0-1.5	0.75*2
LTSD 24	24	23700	24	1.0-1.5	0.75*2
LTSD 26	26	25700	26	1.0-1.5	0.75*2
LTSD 28	28	27700	28	1.0-1.5	0.75*2
LTSD 30	30	29700	30	1.0-1.5	0.75*2
