Sludge Hopper for Diversified Applicant Site

 

Sludge Hopper for Diversified Applicant Site

Payment Type: T/T

Supply Ability: 200 sets per month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LSH30

Brand: Loren

Applicable Industry: Hotels, Farms, Food &Amp; Beverage Shops, Restaurant, Other, Manufacturing Plant, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Factory

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Bangladesh, Mexico

Video Factory Inspection: Provided

Mechanical Test Report: Not Available

Marketing Type: Ordinary Product

Core Component Warranty Period: 3 Years

Core Components: Motor

Status: New

Place Of Origin: Chile

Warranty Period: 2 Years

Multiple Design: Normal one or Carriage Type

Drive Way: Electricity, Hydraulic or Pneumatic

OEM ODM: Available

Site Support: Available

Capacity: 1-60 CBM Single Unit

Expert: Over 20 Years with Strong fabrication

Can Be Combined With: Grit separater, Conveyor , compactor etc

Supporting Process: Waste Disposal

Material: Mild Steel or Stainless Steel or Duplex Steel

Fit For: All Sludge Dewatering Machin

Product Description

Loren Electric Mud Bucket, Pneumatic Sludge Fight ,Sludge Hopper& Scum Silo

1. Applicant:

Main Applied In Storing Mud or Sludge Cake From

a.Plate & Frame Filter Press

b.Belt Filter Press Sludge Dewatering Machine

c.Horizontal Centrifugal Sludge Dewatering Machine,

d.Multiple Screw Dehydrator

e.Rolling Sludge Dewatering Machine

f.Other Particulate Matter & Solids Storage For a One-Time Centralized Discharge & Transportation.

2. Feature:

a. Coating as per dem& on asphalt corrosion, RFP corrosion etc with long life.

b. Can be option on man h&, auto & remote control to meet diversified requirements on site

c. The Witch Of The Bucket Door Can Be Tailored Driven As Electrical, Pneumatic & Hydraulic Control To Make Sure Stable Operation With No Noise.

3. Structure & Principle

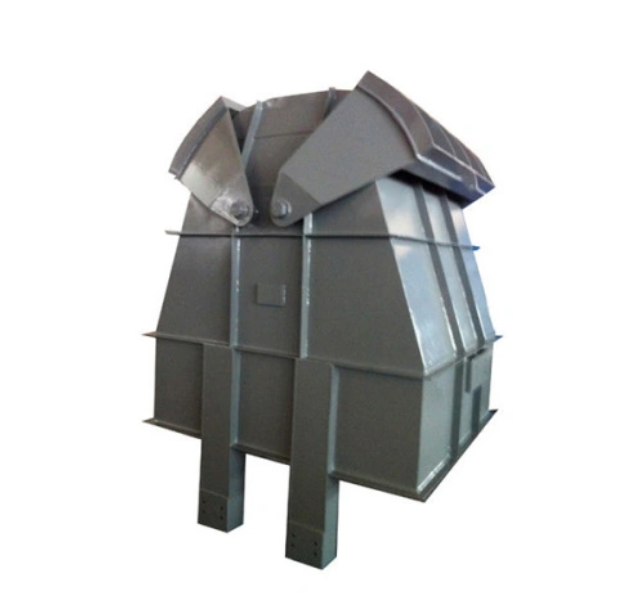

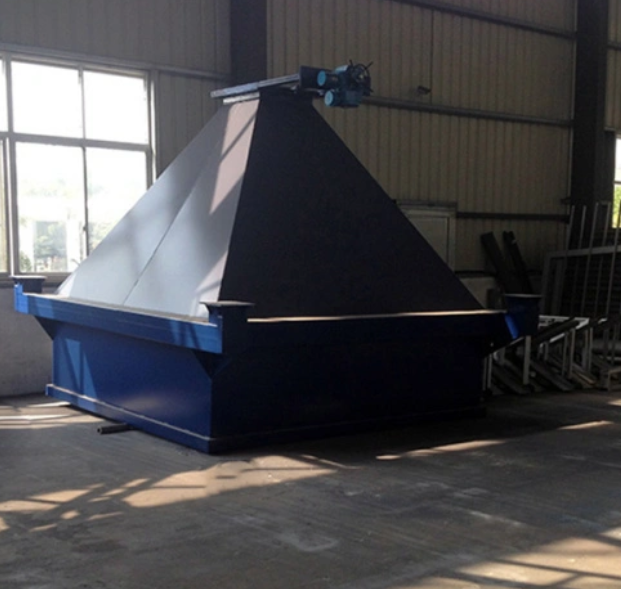

It Main Composed Of Main Mud Bucket, Flexible Door, Motorized Faders & Control Box. View Photo Below

4. Principle

Its Main Part Is Motorized Faders Which Directly Influence The Bucket Function, This Fader Is a Reciprocating Driving Device By Controlling The Head Through Two Switch Button On Both End To Reach Flexible Door Open & Close Function.

5. Model Description & Technique Parameter

SN	Model	Feeding pot size	N.W.(MT)
1	LSH-2	*15001400mm**	0.8
2	LSH-3	*17001500mm**	1.0
3	LSH-4	*19001500mm**	1.3
4	LSH-6	*19001700mm**	1.7
5	LSH-8	*21001900mm**	2.2
6	LSH-10	*23002100mm**	3.0
7	LSH-12	*25002300mm**	4.0
8	LSH-15	*28002500mm**	5.5
9	LSH-20	*30002800mm**	5.5
10	LSH-25	*25005000mm**	5.5
11	LSH-30	*28005000mm**	7.5
12	LSH-40	*30004600mm**	7.5
13	LSH-45	*32004600mm**	7.5

6. Notice:

a. Make Sure Change The Lube Oil For The Reducer.

b. Make Sure Frequently Add Lube Oil On Door Shaft Cup.

c. Make Sure Tidy The Sealing Strip Frequently.

d.Make Sure Configure Over Load Protection On Control Circuit.
