CIT Series Mining Heavy Scum Thickener

Payment Type: T/T

Supply Ability: 30 Sets Per Three Months

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: CIT-20

Brand: Loren

Status: New

Applicable Industry: Energy &Amp; Mining, Food &Amp; Beverage Factory, Manufacturing Plant, Food &Amp; Beverage Shops, Farms

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 2 Years

Core Components: Gearbox, Engine, Bearing, Motor, Plc

Place Of Origin: China

Warranty Period: 1 Year

Productivity: 500l/Hour, 10000l/Hour, 20000l/Hour, 2000l/Hour, 3000l/Hour, 5000l/Hour, 4000l/Hour, 7500l/Hour, 50000l/Hour, 2500l/Hour

Key Function: Heavy Sludge or Slurry Thickener

Key Parts: Hydraulic station and Inclined Tube

Scraper: Auto Rake Lifting Way

Slurry: Tube abSorption

Run Speed Modifing: Stepless Speed Regulation

Deep Tangential Feeding: From bottom to upper

Advection Settling: In Good Function

Dilution: Automatically

Lubricated System: Reliable

Maintenance: Easily

Product Description

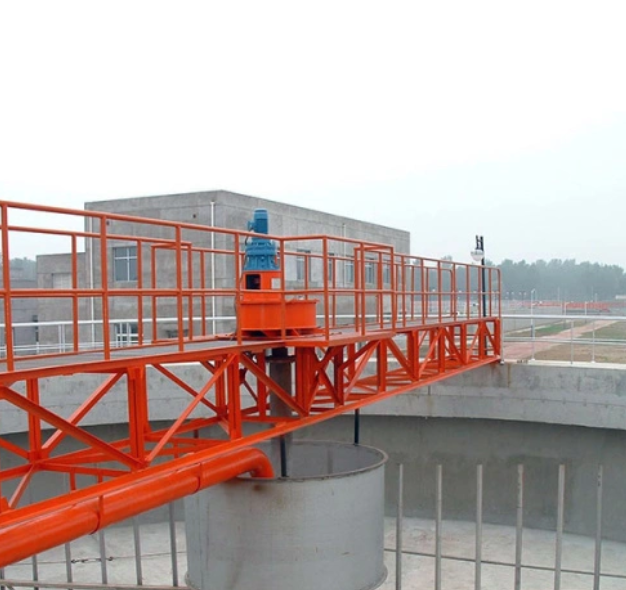

CIT Series Inclined Tube Center Drive Rake Lifting Slurry thickener

Auto Sludge Pool Thickener Definition

It is a New High Efficiency Thickener After Absorbing Advanced Technology Abroad with Hydraulic Auto Driving and Rake Boosting, Stepless Speed Regulation，Precipitation Overload Protection , Air Bubble Removing Function

Mining Heavy Scum Auto Separator Structure Feature and Advantage

- Adopts Hydraulic Driving with Slewing Support to Save Half Force to

Enlarge Its Working Life Time

- Keep Auto Balance and Auto Simultaneous Running

- Stepless Speed Regulation Assure Bottom Flow Density and Overflow Flow

Water In Line With Different Applicant Condition

- Auto Rake Lifting to Assure System Stable Working

- Deep Tangential Feeding From Bottom to Upper

- Advection Settling

- Automatic Dilution

- Reliable Lubricated System with Easy Maintenance Function

- Instant Parking, Unloading & Raking

- Reasonable Design of Feeding Tube Under Centrifugal Settling

- Adopt Higher Rake Speed with Higher HIP , Large Floor Floor Density

- Seamless Steel Rake Support Reduces Power Consumption,Water Resistance To Enhance Its Strength And Increase Flotation Power.

Auto Rake Lifting Centre Drive Thick Mud Purifier System Composition

It Is Composed of Driving Device, Bridge, Inlet Tube, Cage, Rakes, Fabric Tube, Hydraulic Station, Electric Control Boxes And Other Components.

Model Selection and Parameter for CIT Series Auto Rake Lifting Mechanism Center Drive Thickener

Model	Height mm	Settler Area m²	Rake Shaft Speed RPM	Rake Speed mm/min	Rake Lift Height mm	Capacity M3/h	Motor Power kw	Weight kg
CIT-6	3100	28.27	2.5~5	150	350	60~80	3	5297
CIT-8	4782	50	3~5	150	500	100~200	7.5	18310
CIT-9	2918	63.6	2~10	150	400	125~190	4	12576
CIT-12	5990	113	2~10	150	400	280~340	4	16643
CIT-15	4794	176	5~15	150	400	440~530	5.5	18792
CIT-16	4396	201	5~15	150	450	500~600	5.5	19826
CIT-18	5050	254	5~20	150	450	635~760	5.5	21638
CIT-20	5144	314	5~20	150	500	785~940	7.5	26977
CIT-21	5241	346	5~20	150	450	865~1040	7.5	28096
CIT-22	6776	380	5~20	150	450	950~1140	7.5	29134
CIT-24	6250	452	5~20	150	450	1130~1357	7.5	31998
CIT-30	5915	706	10~20	150	450	1765~3120	7.5	39775
CIT-35	6955	962	10~20	150	600	2405~2885	14	47950
CIT-38	6323	1134	10~20	150	600	2835~3400	14	51073
CIT-20	7220	314	5~20	150	500	~1500	11	36299
CIT-24	7664	452	10~20	150	500	~2100	11	55673
CIT-30	8325	706	10~20	150	500	~1500	18.5	68581
CIT-38	8711	1134	10~20	150	800	1800-2500	11	58528
CIT-45	8033	1590	15~22	150	800	2400-3000	11	77200
CIT-53	6946	2206	15~22	150	600	3000-4000	15	99610
CIT-65	8439	3012	16~23	150	600	4500-8000	18.5	130100
CIT-80	9385	5026	20~60	150	600	8000-11000	22	192040
CIT-100	8832	7852	20~60	150	800	15000-18000	30	239850

Hydraulic Drive Tube Thickener Applicant

-Metallurgy Heavy Slurry Treatment

-Chemistry Heavy Slurry Treatment

-Coal Processing Thick Slurry Treatment

-Mining Processing Thick Slurry Treatment

-Industrial Waste Water Sludge Thickening

-Other Sludge Pool Thickener Pool
