LPD Series Hollow Paddle Dryer
Definition of Loren Continuous Paddle Extrusion Dehumidifier
The Hollow Paddle Dryer Is a Horizontal Stirring Continuous Drying Equipment Mainly Based On Heat Conduction. Because The Stirring Blade Is Shaped Like a Paddle, It Is Called a Paddle Dryer, And It Is Also Called a Trough Dryer Or a Stirring Dryer Abroad
Hollow Paddle Dryer Feature
-Compact Structure
- Hot Media Source Temperature Range:-40-320℃
-Its Withstand Pressure Range Is 0.4-1.5 Mpa
-Large Heat Transfer
-Small Footprint
-The Air Consumption Is Small, Save 40% Steam or 30% Electricity
-When Adopts inert gas as wet carrier, the organic solvent can be recovered
-long residence time of materials & High fill factor.
-Closed Loop Drying Design Save Energy
-Widely Applied Drying Materials
-Optional Media like Steam, conducted oil, hot or cold water, fume gas,
-Evenly Agitated with High Heat Drying Efficiency
-Inter active coupled paddle shaft has auto cleaning function

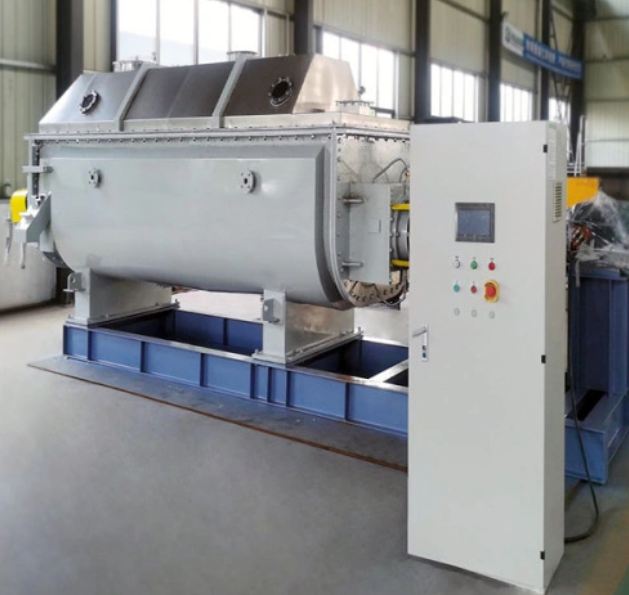

-Auto PLC with DCS Control System
-Can Adopt Closed Loop or Vacuum Drying
-Little Operation and Maintenance Fee due to Little Easy Damage Parts
-Globally No Influenced By Outside Temperature and Circumstance Change
-Fit for Inert Environment Changes,
-Fit For Inflammable & Explosive, Volatile And Toxic Materials Occasions
-Lower Investment
Working Principle of Sequencing E-Plating Sludge Economic Dryer

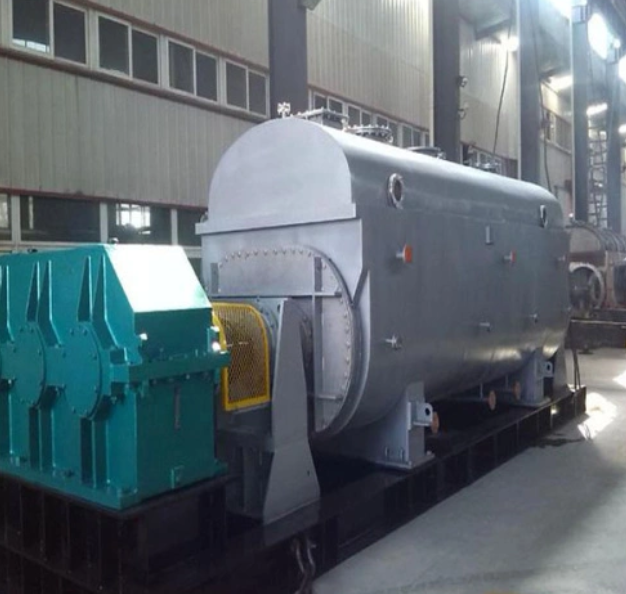

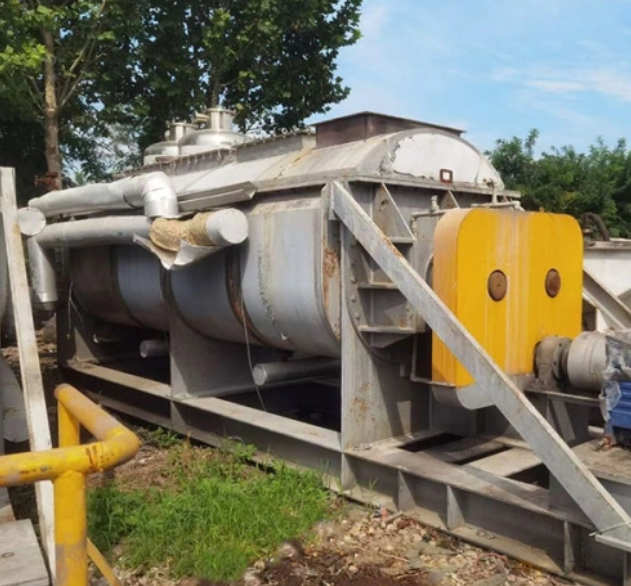

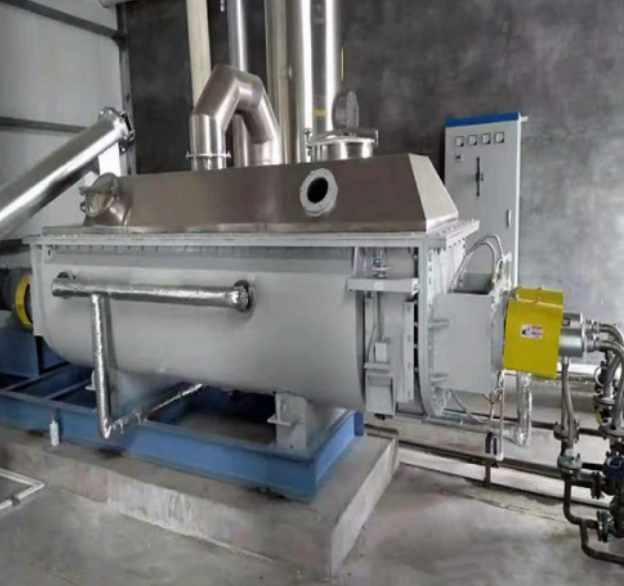

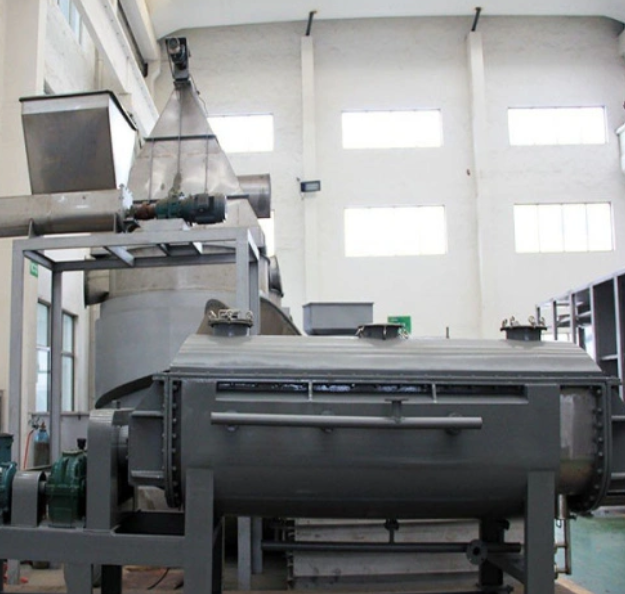

The Hollow Paddle Dryer Is a Low-Speed Stirring Dryer With Conduction Heating. a Jacket Is Set On The Body Of The Dryer, a Hollow Paddle Is Set On The Hollow Shaft, And a Heat Carrier Is Introduced Into It, And The Wet Material Is Stirred By The Stirring Blade To Fully Exchange Heat Between The Body And The Hot Surface Of The Blade To Achieve The Purpose Of Drying
Applicant of Steam-Source Low Temperature Dehumidification Machine

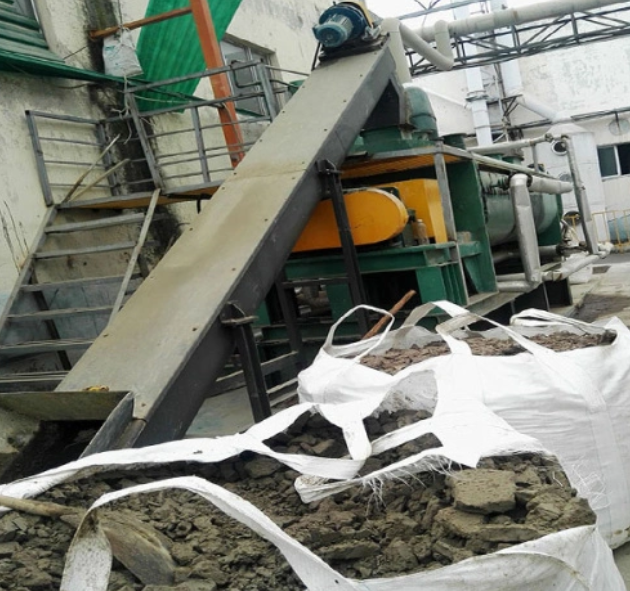

-Municipal Sewage Treatment Plant
-ETP , STP
-Chemical Factory
-Pharmaceutical Factory
-Paper Making Factory
-Dyeing and Printing
-Leather Processing
-Electric Plating Plant
-Food Processing
-Landfill
-Dangerous or Harmful Sludge
LPD Series Food and Traditional Chinese Medicine or Tea Drying Machine Parameter
Model | Heat Transfer Area (M2) | Effective Area Volume (M3) | Speed (Rpm) | Power (KW) | Dimension L*W*H (MM) |
LPD-18 | 18 | 1.5 | 15-23 | 11 | 5423*1218*1650 |
LPD-30 | 30 | 3.5 | 10-15 | 22 | 7220*1450*2190 |
LPD-40 | 40 | 5.0 | 10-15 | 30 | 6682*2075*2376 |
LPD-50 | 50 | 7.0 | 10-15 | 37 | 7250*2036*2548 |
LPD-60 | 60 | 8.5 | 10-15 | 37 | 7800*2030*2677 |
LPD-70 | 70 | 10 | 10-15 | 45 | 8050*2424*2700 |
LPD-80 | 80 | 12 | 10-15 | 55 | 9000*2000*2700 |
LPD-100 | 100 | 15 | 10-15 | 55 | 9800*2500*2800 |
LPD-120 | 120 | 18 | 10-15 | 75 | 10560*2650*3050 |
LPD-160 | 160 | 23 | 6-12 | 110 | 12000*2950*3300 |
LPD-200 | 200 | 32 | 6-12 | 110 | 12050*3300*3700 |
LPD-220 | 220 | 34 | 6-12 | 132 | 12500*3300*3700 |
The Applicable Material for This Dryer are Below
-Petrochemical Industry
Polyolefin Powder, Polycarbonate Resin, All kinds of Polyethylene and Other Project Plastics ,Polyacetal Particles, Nylon 6, Nylon 66, Nylon 12, Acetate Fiber, PP Sulfide, Propylene Base Resin, Polyvinyl Chloride, Polyvinyl Alcohol, Polystyrene, Polyester, Polyoxymethylene, Styrene-Acrylonitrile Copolymer, Ethylene-Propylene Copolymer.
-Environmental Protection Industry
All Sludge, Boiler Soot, Sugar Factory Waste, Pharmaceutical Factory Waste, Monosodium Glutamate Factory Waste, Coal Ash.
-Feed Industry
Soy Sauce Residue, Bone-Based Feed, Distiller's Grains, Food Leftovers, Apple Pomace, Orange Peel, Soybean Meal, Chicken Bone Feed, Fish Meal, Feed Additives, Biological Sludge
-Food Industry
Starch, Cocoa Beans, Corn Kernels, Salt, Modified Starch, Pharmaceuticals.
Chemical Industry: Soda Ash, Npk Compound Fertilizer, Kaolin, Bentonite, White Carbon Black, Carbon Black, Phosphogypsum, Calcium Sulfate, Calcium Nitrate, Magnesium Carbonate, Sodium Cyanide, Sodium Fluoride Oxide, Aluminum Hydroxide, Barium Sulfate, Calcium Carbonate, Molecular Sieves, Dyes, Saponin.
Different Dry Sludge Quantity Table Under Different Moisture
Sludge Moisture(%) | Sludge Volume Per Ton ( M3) | Sludge Moisture(%) | Sludge Volume Per Ton ( M3) |
99.9 | 200 | 60 | 0.5 |
98 | 10 | 50 | 0.4 |
90 | 2 | 40 | 0.33 |
85 | 1.33 | 30 | 0.29 |
802 | 1.0 | 20 | 0.25 |
70 | 0.67 | 10 | 0.22 |
60 | 0.5 | 5 | 0.21 |
