LFMD Series Food and Traditional Chinese Medicine or Tea Dryer
Loren Veg Low Temperature Dehumidifier Innovative Technology
-Solve Technical Bottlenecks Between Frosting And Poor High Temperature Performance
-Dehumidification Performance Ratio: ≥(SMER) 3kgs.HO2/KW.H
-Patent for Intermediate Heat Exchange Cooling Dehumidification
-Patent for Temperature Echelon Utilization Technology
-Patent for Double-effect, Triple-Effect Dehumidification Technology
-Larger Dryer Temperature range:From 15-80℃ with Intake Temp. 95℃ to meet Cool Air Drying, Heat Air Drying and Alternative Cool and Hot Air Dehumidification
-Adopts Advanced Refrigerant Recovery Technology Improve Compressor Cooling Efficiency to Save Running Cost by way of Energy Saving Machine to exchange the Low Pressure Air with High Pressure Air to heat the low pressure air and cool the refrigerant liquid
-Module Design to fit for upgrading and maintenance
-PLC Intelligent Control of single or multiple sets together with Remote Control
-Widely Applicant Field of industrial, ETP, food and Pharmacy etc.
Continuous Fruit Drying Machine Definition
It Is a Device That Uses The Refrigeration System To Cool And Humidify
The Hot And Humid Air While Recovering The Air Moisture By The Heat
Pump Principle To Condense The Latent Heat.
Dehumidification Heat Pump = Dehumidification Drying+ Heat Pump (Energy Recovery) Combined
The Final Applicant of Dyed Sludge Particles Can Be Used As
-Fertilizer
-Fuel
-Incineration
-Building Materials
-Bio Fuel
-Landfill Covering Soil
-Land Utilization Etc.
Feature of Sequencing Heat Pump Dehumidification Dryer
-Closed Loop Drying Design Save 50% Energy with No Exhausted Gas or Heat Loss
-Our Heat Recovery Cycle Patented Technology Fit For High Temp. & Low Humidity Drying Process.
-The higher The Temperature, The Higher The Dehumidification Performance SMER (kg.H20/kw.h) Ratio;

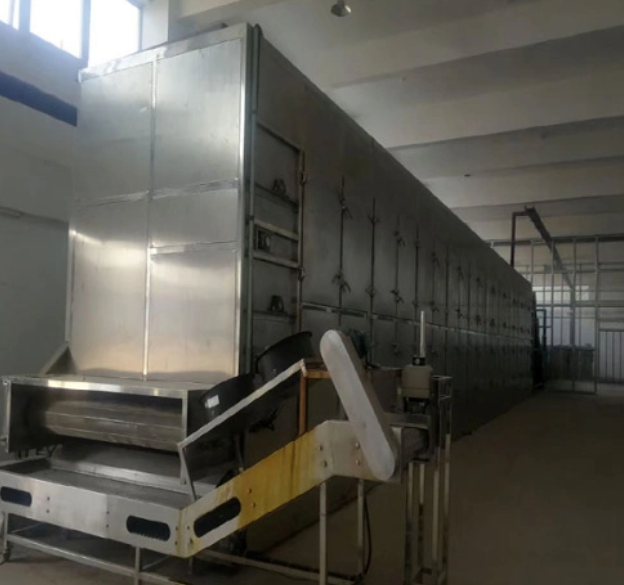

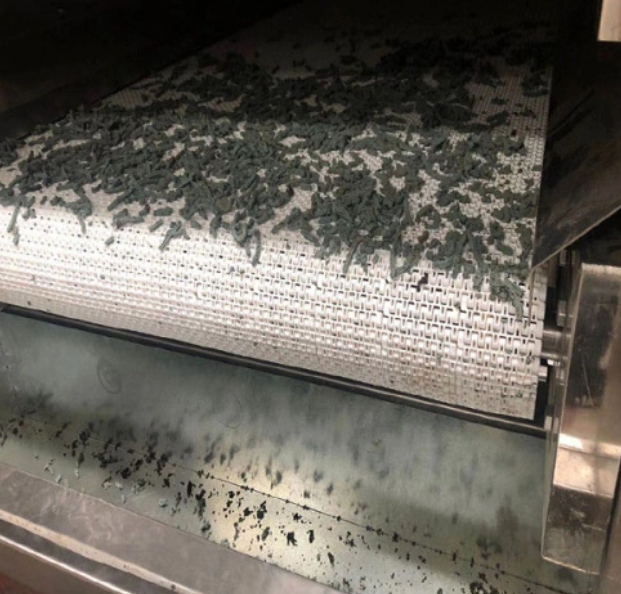

-Continuous Mesh Belt Drying Mode, Suitable For Various Types Of Sludge Drying Systems (Including Sludge With Large Sand Content) To Have Long Service Life
-Sludge Slitting And Crushing Patented Technology by Using Different Paving Modes As per The Solid Content Of Sludge
-The System Is Safe To Operate, Has No Hidden Danger Of Explosion, And Does Not Need Nitrogen Flushing Operation; The Oxygen Content Of The Sludge Drying Process Is <12%, The Dust Concentration Is <60g/m3, The Particle Temperature Is <110°c, And The Whole Drying Process Is Dust-Free (Air Velocity < 2 m/s);
-The Mesh Belt Transmission Speed Is Controlled By Frequency Conversion, And The Moisture Content Of The Sludge Discharge Is Adjustable (10-30%)
-Small Footprint: 3.5 Square Meters Per Ton Water Evaporation
--Removal Water 3 kg per 1 degree Electricity Consumption
- No Pollutant Discharged Out
-No Noise Contamination
-Globally No Influenced By Outside Temperature and Circumstance Change
-Moderate and Low Temperature Drying Yield Out Better Quality Dry Sludge
-The Sanitation Condition of Drying Process is Excellent
-Fit for Inert Environment Changes,
-Fit For Inflammable & Explosive, Volatile And Toxic Materials Occasions
-Ventilation Temperature Can Reach 95℃
- PLC Touch Screen Control
-Lower Investment and Lower Maintenance Charge
Working Principle of Steam-Source Low Temperature Dehumidification Machine
Utilizing The Dehumidification Principle Of The Low-Temperature Heat Pump, The Sludge Is Dried By Convective Hot Air, So That The Moisture In The Material Absorbs Heat And Evaporates Into The Air To Achieve The Purpose Of Reducing The Moisture Content. It Use The Refrigeration System To Cool The Hot And Humid Air Below The Dew Point To Precipitate Moisture, And Then Heat The Air Through Multiple Heat Recovery Technologies To Keep The Moisture In The Sludge Evaporating,
Evaporation-Dehumidification-Heating-Evaporation-Re-Dehumidification,
In Fact It Is Equal To The Organic Combination Of Dehumidification Heat Pump + Heat Recovery Technology + Material Delivery System.
♦ Sludge Process ♦
70~85% Water Content Sludge Is Fed From The Top Of The Indirect Heating Dryer.There Are Several Layers Of Dryer.The Function Of Scraping Arms Of Each Layer Is Moving Sludge To Next Layer Until Dryer Discharge Port At Lowest Layer.There Could Ba a Storage Bag For Temporary Storage At Discharge Port Or It Is Delivered To Treated Sludge Storage Tank.During Sludge Moving Procedure,Sludge Is Stirring By Scraping Arms.It Is Dramatically Increased Sludge Drying Efficiency By Combined Heat,Mass Transfer And Stirring Physical Reactions.
♦ Air Circulation Process ♦
Dry Air Is Fed Into The Bottom Of The Dryer.It Goes From The Bottom Layer To The Discharge Vent Of Upper Layer Of The Dryer.When Dry Air Passes Through The Sludge Surface Of Each Layer,The Moisture Inside Sludge Is Quickly Vaporized Into Air As Humidity Of Air Increased.The Near Saturated Air From The Discharge Vent Of Dryer Is Boosted Pressure By Fan.The Dehumidification Function Is Occurred In Condenser.The Air Will Be Dried Again After Leaving Condenser.Due To Reduce The Dew Point Temperature,Vapor Molecules Move Together To Form Condensation Droplets Collected In Condensate Tank.Dry Air Could Directly Go To Dryer Or Pass Air Heater Before Go To Dryer Due To Different Sludge Characteristics.The Air Has Been Continuous Circulating In The System.Since There Is No Exhaust Released To Environment During Process.It Is Not Necessary To Do Oder Or Exhaust Treatment.
♦ Water Circulation Process ♦
lced Water Is Pumped Into Condenser And Taken Out The Heat Of The Air.It Becomes The Cold Water After Leaving Condenser.The Cold Water Is Pumped Through Heat Pump Which Adsorbed Heat And Make Cold Water To Be Iced Water Again.The Iced Water Is Circulating Back To Condenser.Hot Water Is Pumped Into The Air Heater And Release Heat To Air Before It Is Fed Into Dryer.After Leaving Air Heater,Hot Water Becomes Warm Water.The Warm Water Is Pumped Through Heat Pump Which Release Heat And Make Warm Water To Be Hot Water Again.The Hot Water Is Circulating Back To Air Heater.
Applicant
-Municipal Sewage Treatment Plant
-ETP , STP
-Chemical Factory
-Pharmaceutical Factory
-Paper Making Factory
-Dyeing and Printing
-Leather Processing
-Electric Plating Plant
-Food Processing
-Landfill
-Dangerous or Harmful Sludge
Why Us
-We Are the First Global Auto Design ,Fabrication This Dryer Series
-We Owns Our Essential Patents
- We Serve for Global groups for many Years Like Foxconn , Taiwan Petroleum, Younger Clothing etc.
-Factory Long History Directly Sales Cost & Fast Delivery
-Fully Combined Various Types Sludge or Oil Mud Dryer Design & Fabrication
-Fully Automatic System with Long Life Work Protection
-Special and Customized Design
-Customer OEM Service & Flexible Adjusting
-Good Quality Control & Training System
-Large Domestic & Overseas Performance Sites
-Within 8 Hours Response Service & After Sales Service
LFMD Series Food and Traditional Chinese Medicine or Tea Drying Machine Parameter
Model | Daily Sludge Removal Volume (kg) | Hour Water Removal Volume (kg) | Tunnel Area (M) | Length* Stage No. (m) | Dry Car Size (M) | Total Power (kw)） | Total Dimension （m) |
LFMD-2.7 | 2700 | 112 | 0.70*1.50 | 4m*3 | 0.60*1*1.40 | 39 | 17*2.20*3.6 |
LFMD-5.4 | 5400 | 225 | 1.20*1.70 | 4m*3 | 1.10*1*1.60 | 75 | 17*2.90*4.1 |
LFMD-10.8 | 10800 | 450 | 2.05*1.95 | 6m*3 | 1.95*1*1.85 | 145 | 23*3.65*4.3 |
LFMD-18 | 18000 | 750 | 2.05*1.95 | 6m*5 | 1.95*1*1.85 | 240 | 35*3.65*4.3 |
LFMD-25.2 | 25200 | 1050 | 2.05*1.95 | 6m*7 | 1.95*1*1.85 | 336 | 47*3.65*4.3 |
LFMD-32.4 | 32400 | 1350 | 2.05*1.95 | 6m*9 | 1.95*1*1.85 | 432 | 59*3.65*4.3 |
Different Dry Sludge Quantity Table Under Different Moisture
Sludge Moisture(%) | Sludge Volume Per Ton ( M3) | Sludge Moisture(%) | Sludge Volume Per Ton ( M3) |
99.9 | 200 | 60 | 0.5 |
98 | 10 | 50 | 0.4 |
90 | 2 | 40 | 0.33 |
85 | 1.33 | 30 | 0.29 |
802 | 1.0 | 20 | 0.25 |
70 | 0.67 | 10 | 0.22 |
60 | 0.5 | 5 | 0.21 |
