PGT Series Peripheral Rotary Concentrator

 

PGT Series Peripheral Rotary Concentrator

Payment Type: T/T

Supply Ability: 20 Sets Per 3 Months

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: PGT-24

Brand: Loren

Species: Mining Thickener

Applicable Industry: Energy &Amp; Mining, Food &Amp; Beverage Shops

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Gearbox, Gear

Status: New

Motor Type: Ac Motor

Place Of Origin: China

Warranty Period: 1 Year

Key Work Way: Section Rake Auto Lifting Skimmer

Link Rod Rake Shaft: Thickening Effect Increased 30-50%

Rake Lift Height: Can be Adjustable as per site demand

Scraper Plate Can Be Lift On Surface: to Fit for Maintenance

DN Over 35 Meters: Need Center RCC Support & Aux. Rakes Mechanism

Optional Choose: Rubber Wheels Or Gear Rotation

After Sales Service: Witin 8 Hours Reponse and Solution

Essential Function: Heavy Thick Slurry Concentration

OEM ODM Service: Available

Product Description

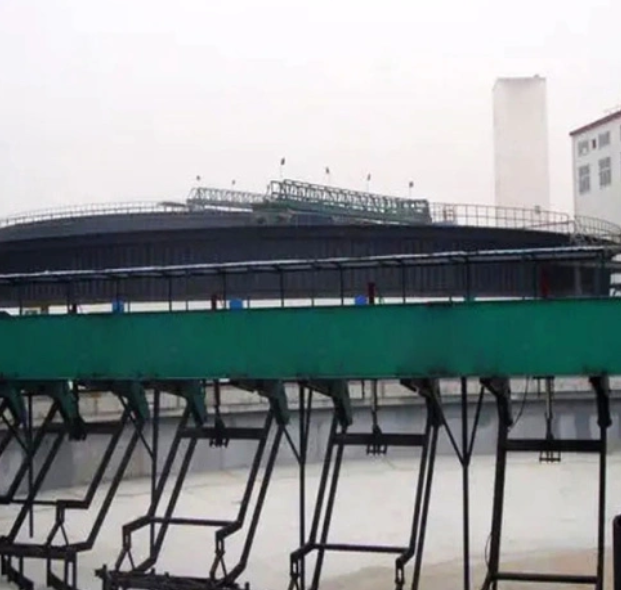

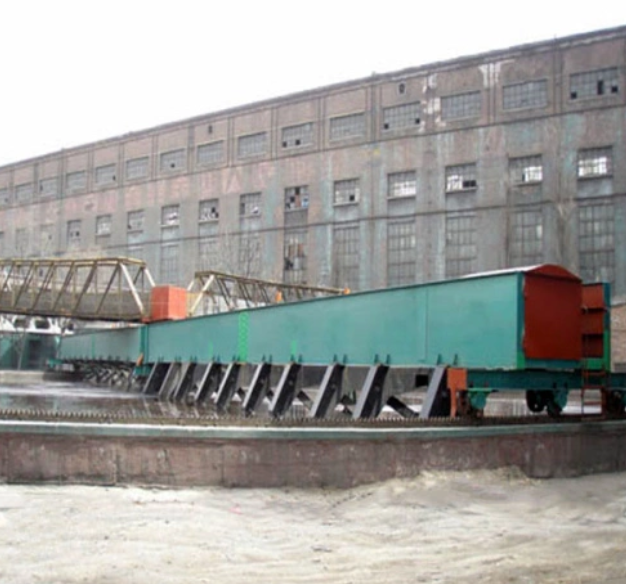

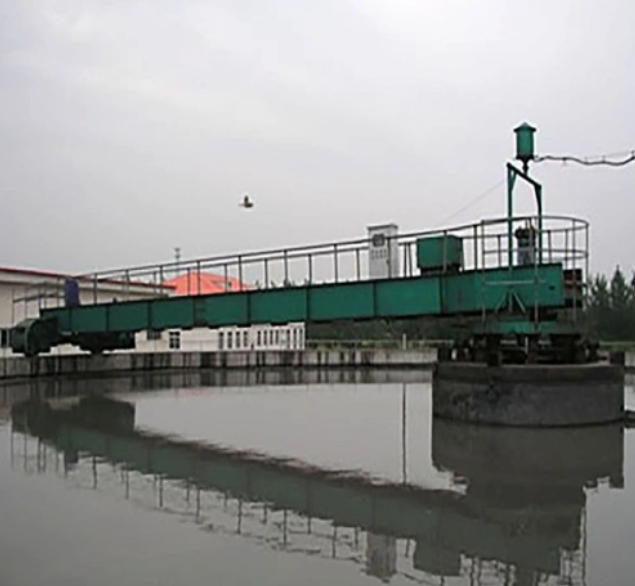

PGT Series Peripheral Rotary Concentrator

Automatic Section Rake Peripheral Drive thickener Definition

PGT/PIT/PLT Series Peripheral Rotary Concentrator is a New High Efficiency Thickener With Auto Hydraulic Section Rake Lifting After Absorbing Advanced Technology Abroad Under Step-less Speed Regulation，Precipitation Overload Protection , Air Bubble Removing Conditions

Hydraulic Drive Peripheral Rotary Sludge Thickener Structure Feature and Advantage

- High Thickening Efficiency Due to Deep Tangential Feeding & Advection

Settling

-Use Centrifugal Settling Principle to Carry On Primary Thickener In Special Design Feeding Cylinder.

- Can Auto Clean The Pool After Long time Stop or Meeting Faults.

- The Current Collector Is a Fully Enclosed Structure

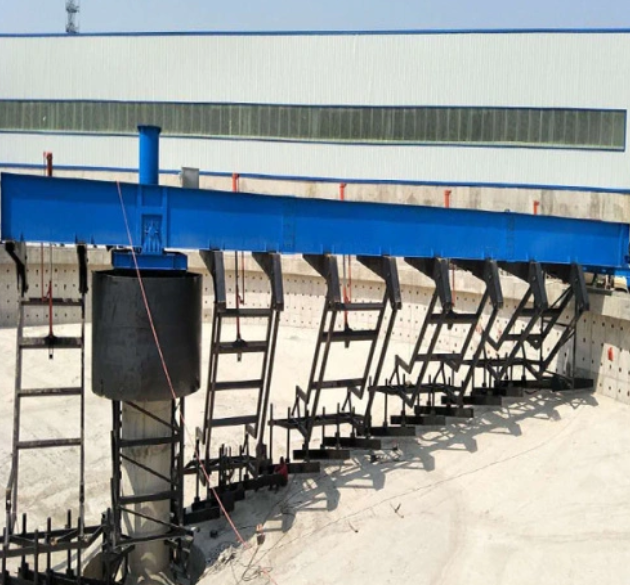

- The Scraper Rake Can Lift Out of Surface to Facilitate Maintenance

- Adopts International Brand Main Supporting Parts

- PLC Auto Control System with Overload Alarm and Protection Device

- Hydraulic Driving with Slewing Support Can Save Half Force to Enlarge Its Working Life Time

- Step-less Speed Regulation Assure Flexibility In Different Condition

- Automatic Dilution

- Reliable Lubricated System with Easy Maintenance Function

- Instant Parking, Unloading & Raking

- Reasonable Design of Feeding Tube Under Centrifugal Settling

- Seamless Steel Rake Support Reduces Power Consumption,Water Resistance To Enhance Its Strength And Increase Flotation Power.

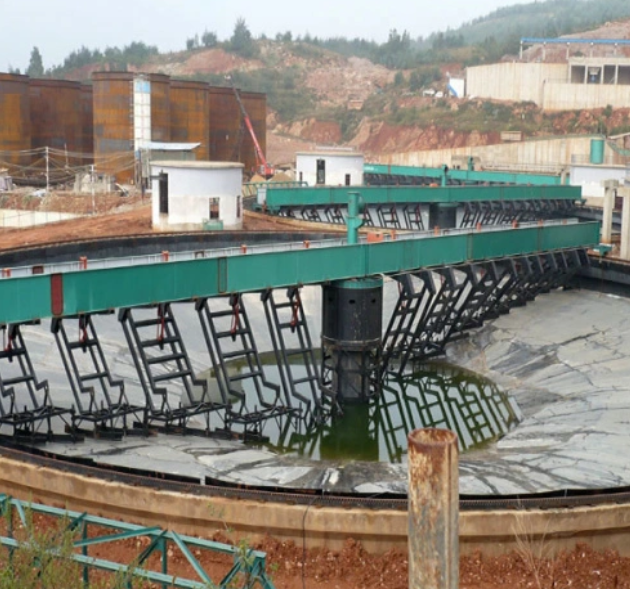

Auto Rake Lifting Centre Drive Thick Mud Purifier System Composition

It Is Composed of Driving Device, Bridge,Collectors, Bridge, Turn Cage, Rakes, Fabric Tube, Hydraulic Station, Electric Control Boxes And Other Components.

Model Selection and Parameter for PGT Series Auto Rake Lifting Mechanism Peripheral Drive Thickener

Model	Center Pool Depth mm	Settler Area m²	Rake Speed mm/min	Capacity M3/h	Motor Power kw	Hydraulic	Weight kg
PGT-18	6000	254	8.5-12	400-600	6	2.2	24000
PGT-22	6748	380	10-18	800-1000	7	2.2	31250
PGT-24	7000	452	10-18	1007-1200	7	2.2	32000
PGT-30	7326	706	12-22	1200-1600	9.5	2.2	44530
PGT-38	7926	1134	15-25	2000-2500	7.5	3	49980
PGT-45	8482	1590	16-26	3000-4000	11	4	62000
PGT-50	4500	1963	18-21	3400-4000	15	5.5	82300
PGT-53	5323	2205	18-25	3400-4500	15	4	94150
PGT-60	5750	2826	18-25	8000-10000	22	8	138760
PGT-75	6126	4415	18-25	9000-11000	30	11	170426
PGT-80	7000	5024	18-25	10000-12000	44	11	197200
PGT-100	7563	7850	18-25	15000-19000	60	11	298000

Mining Heavy Slurry Radial Concentrator Comment:

- The Thickener Pool DN Less than 35 Meters , NO need Center RCC Support But Independent Center Mixer System

- The Thickener Pool DN Over 35 Meters , Need Center RCC Support & Auxiliary Rakes Agitation .

- Can Optional Choose Rubber Wheels Or Gear Rotation

- Its Structure Can be Two-speed or Hydraulic Motor Drive Type, Peripheral Style, Sectional Auto Lifting Style, Deep Layer Feeding Way and Center Mixing Ways

Applicant

-Metallurgy Heavy Slurry Treatment

-Chemistry Heavy Slurry Treatment

-Coal Processing Thick Slurry Treatment

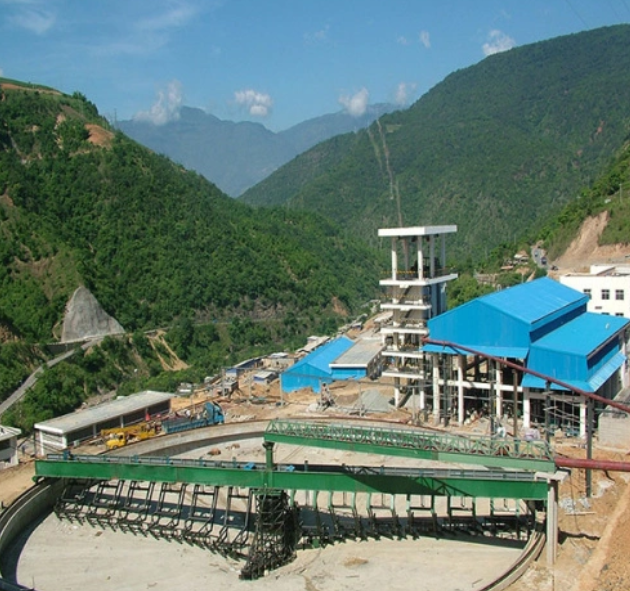

-Mining Processing Thick Slurry Treatment

-Industrial Waste Water Sludge Thickening

-Other Sludge Pool Thickener Pool

Center Hydraulic Inclined Tube Sludge Thickener
