LCS Series Chain Style Mud Scraper Skimmer
Definition of Chain Plate Type Mud Scraper
The Chain Plate Type Mud Scraper And Scum Skimmer Is Suitable For Mud Collection, Mud Removal, Sand Removal, Slag Removal And Oil Removal In Advection Sedimentation Tanks And Grease Traps.
Chain Drive Type Scum Skimmer Composition

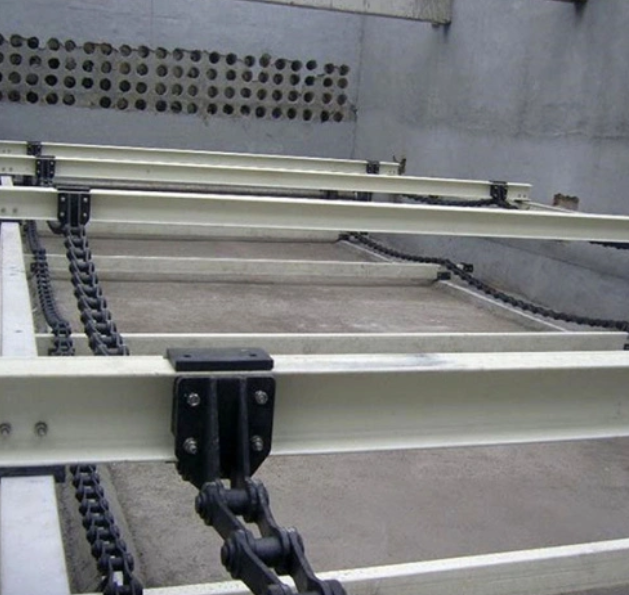

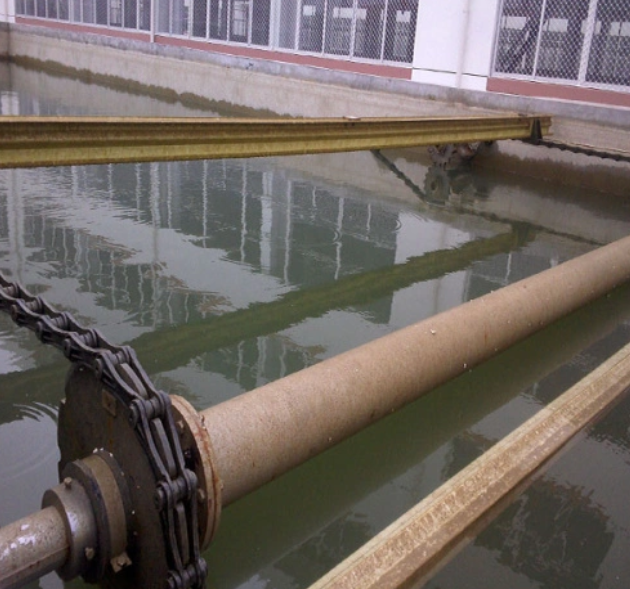

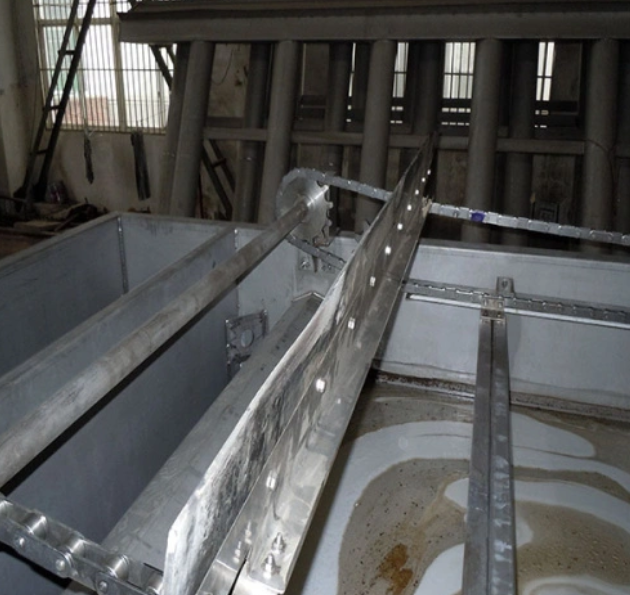

It Is Composed Of Driving Device, Transmission Chain And Sprocket, Traction Chain And Sprocket, Scraper, Guide Wheel, Tensioning Device, Sprocket Shaft, Guide Rail Bracket Etc.
Feature of Oil Collection Machine In Water
-Moderate Scraper Move Speed with Little Interference to Liquid Water
-No Need Back and Forth Run Due to Scraper Walk Continuously
-Drive Device &Control Box Set On top of Skimmer which is fit for Maintenance
-Can Be Also Work as oil and Grease Skimmer
-Over-Torque Protection Device to Auto Stop Machine Due To Overwhelming Sludge Layers Or Scraper Blocked
-Stable Run to Avoid Disturbance of Sediment
-Simple Integrated Mud and Oil or Scum Skimmer System
-Compact and Reasonable Structure with Light Weight
-Lower Operation Cost
-Flexible Control The Scum Removal Volume
-High Automation Control Degree
-Long Lasting Life Time
Structure &Working Principle

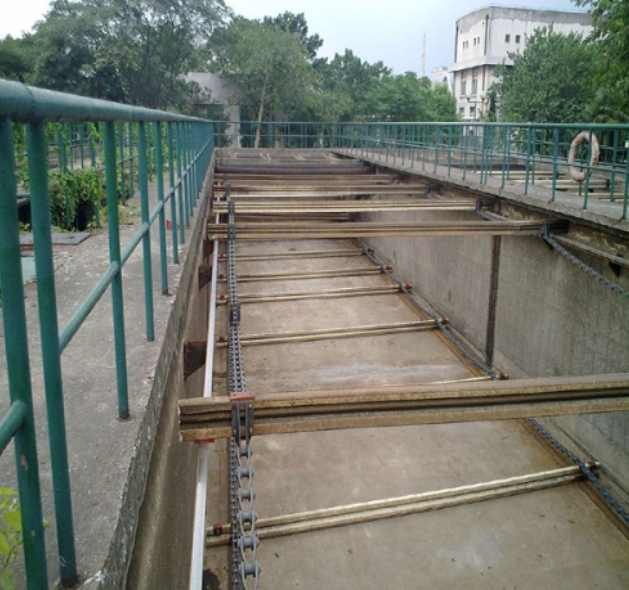

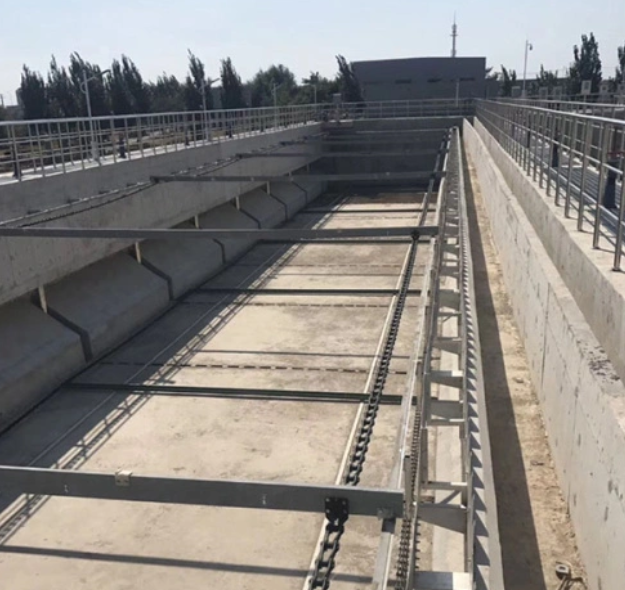

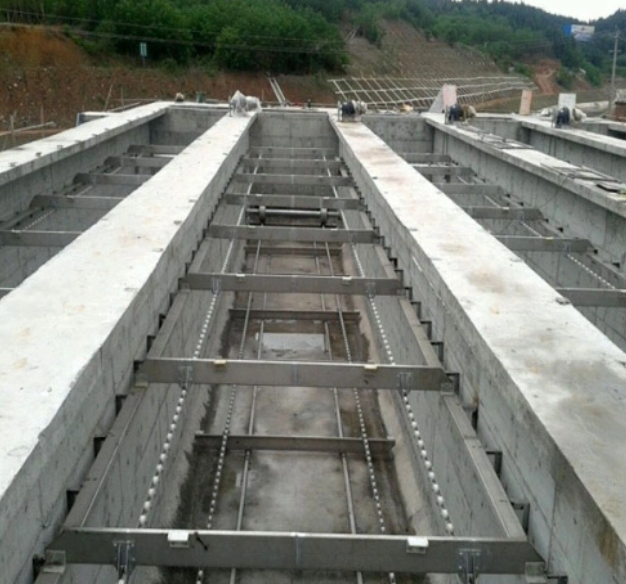

The Chain Type Mud Scraper Is To Continuously Remove The Suspended Solids Floating On The Water Surface And The Sludge At The Bottom Of The Pool. The Scraper Moves Along The Pool Surface And The Bottom Of The Pool, And Pushes The Suspended Solids From The Inlet End Of The Liquid Surface To The Outlet End. . The Chain Type Mud Scraper Is Fixed At Both Ends Of The Chain, And The Chain Type Mud Scraper Is Driven By a Drive Sprocket Transmission Device. The Chain Scraper Moves Along The Entire Width Of The Tank, Scraping The Pollutants Into The Slag Discharge Tank And Scraping The Sludge Into The Sludge Hopper.
Applicant of Oily Water Purifier
-Remove and Collect All Kinds of Fuel , Oil , Grease , Coconut Oil
-Remove Suspend Solid or Oil In Dissolved Air Flotation System
-Removal TSS in Waterworks
-Removal TSS in Municipal Sewage Treatment Plant
-Removal TSS in Different Industrial Waste Water Treatment
-Other Water Supply and Drainage Project
Model Instruction & Specification
LCS Serious Chained Scum Skimmer Technical Parameter Data
Model | Rail Center Distance (m) | Normative Pool Width (M) | Pool Top to Liquid Surface Height (mm) | Rail Type | Drive Power (kw) |
LCS-500 | 0.5 | 500 | 200-280 | 8 | 0.37 |
LCS-1000 | 1 | 1000 | 200-280 | 8 | 0.37 |
LCS-2000 | 2 | 1750 | 200-280 | 8 | 0.37 |
LCS-2500 | 2.5 | 2250 | 200-280 | 8 | 0.37 |
LCS-3000 | 3 | 2750 | 200-280 | 8 | 0.37 |
LCS-3500 | 3.5 | 3250 | 200-280 | 8 | 0.37 |
LCS-4000 | 4 | 3750 | 200-280 | 11 | 0.55 |
LCS-4500 | 4.5 | 4250 | 200-280 | 11 | 0.55 |
LCS-5000 | 5 | 4750 | 200-280 | 11 | 0.55 |
LCS-6000 | 6 | 5750 | 200-280 | 11 | 0.75 |
LCS-7000 | 7 | 6750 | 200-280 | 11 | 0.75 |
LCS-8000 | 8 | 7750 | 200-280 | 11 | 0.75 |
Test-Running
Connect The Skimmer Motor To The Electric Control Box.
Click the Start Button Of The Skimmer To Make Sure That Positive-Negative Running Of The Motor. Base On The Direction In Which Skimmer Moved Toward Scumming Tank.
Announcements
1. During The Installation Of Skimmer, Please Ensure The Degree Of Parallelism Of Drive Sprocket. The Error Is Less Than Or Equal To 2mm.
2. When The Flotation Tank Is First Put Into Use, Please Pay Attention To Observe The Running Condition Of Skimmer. Because No-Load Operation And Load Operation Have Different Effects On The Stress Of Scraper And Chains. Once Any Abnormal Status Occurs, Please Stop The Skimmer Immediately And Find Out The Reasons Until Eliminating The Trouble.
3. Putting Hands On The Chains And Sprocket Wheel Is Strictly Prohibited During The Skimmer Operation.
4. Reducer and Bearings Need Regular Refueling.
