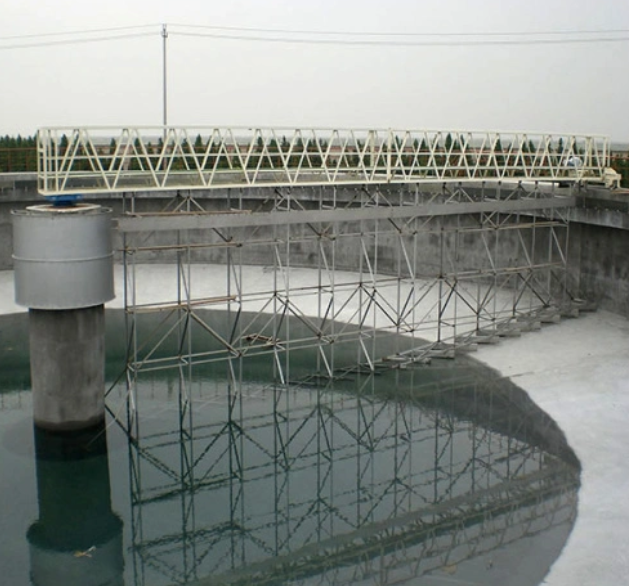

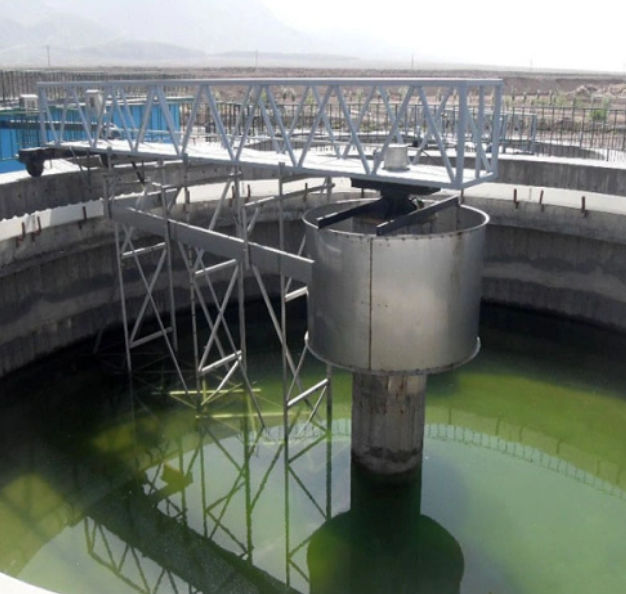

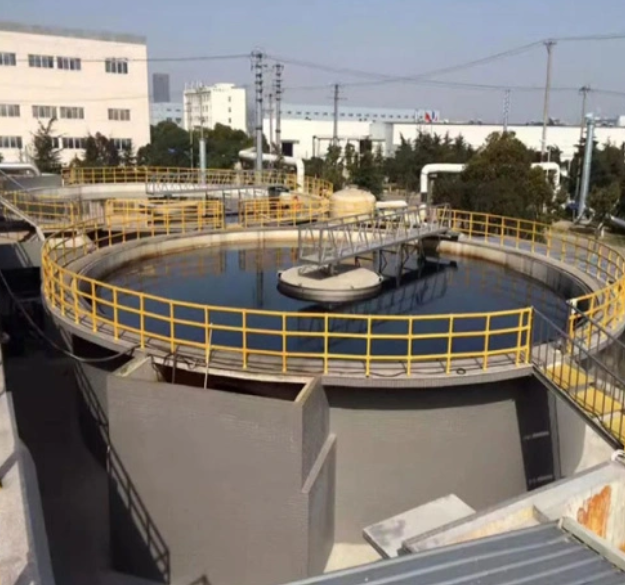

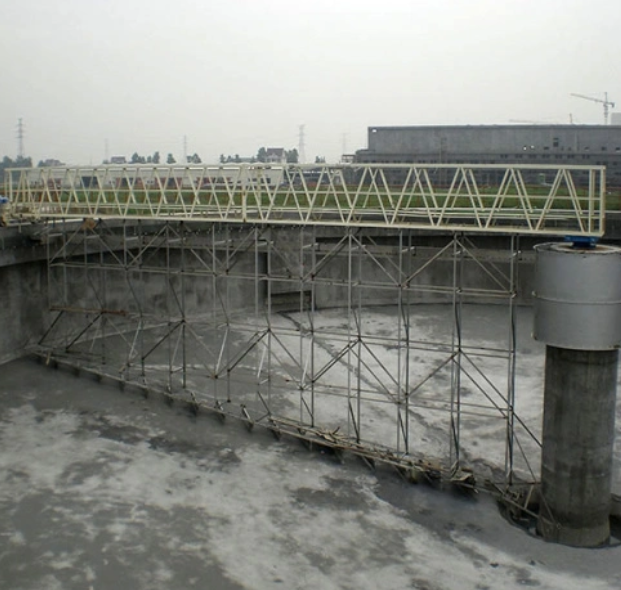

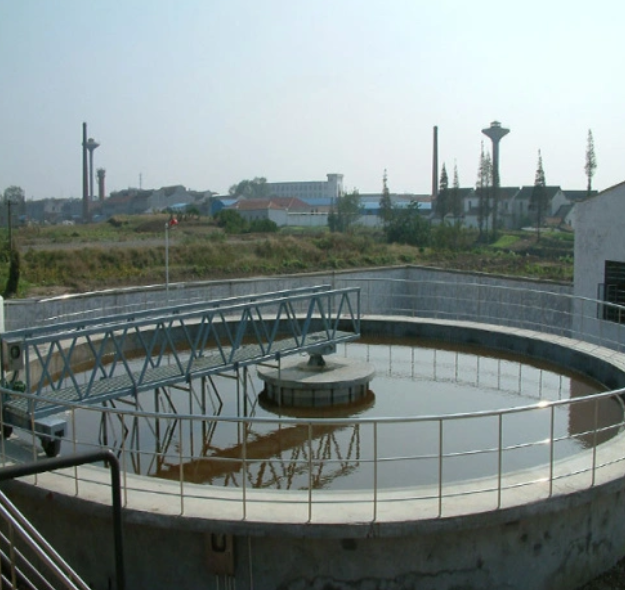

Half Bridge Peripheral Drive Sludge Scraper

 

Half Bridge Peripheral Drive Sludge Scraper

Payment Type: T/T

Supply Ability: 25 Sets Per Three Months

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LHPS-14

Brand: Loren

Applicable Industry: Hotels, Farms, Food &Amp; Beverage Shops, Restaurant, Building Material Shops, Food Shop, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 2 Years

Core Components: Bearing, Motor

Place Of Origin: China

Warranty Period: 1 Year

Productivity: 10000l/Hour, 20000l/Hour, 1000l/Hour, 2000l/Hour, 3000l/Hour, 5000l/Hour, 7500l/Hour, 50000l/Hour, 2500l/Hour

Key Performance: Removal Sludge in Water

Drive Way: Perepharal Drive

Water Touched Parts: SS304 Structrue

Good-looking Bridge: adopts Truss Structure.

Running Cost: Competitively Lower

Walking Wheel Material: Rubber , Steel, Nylon or Polyurethane

Scraper Plate Reliability: Efficient Logarithmic Spiral one

Electrical Components: Outdoor Safe and Convenient ones

Diameter: 14 meters

Maintenance: Simple And Convenient

Product Description

Peripheral Drive Sludge Scraper

Definition of Half Bridge Peripheral Drive sludge scraper

The Peripheral Transmission Sludge Scraper Is a Kind Of Equipment Used To Treat High-Concentration Wastewater, And Its Main Function Is To Remove The Sludge From The Sedimentation Tank Or Reactor. It Can Scrap The Bottom Tank Sludge Into The Sludge Collection Sink , And The Sink Sludge Will Then Be Discharged By Drainage Pipe To Facilitate Further Sludge Re-Flux Or Concentrated Dehydration. It Can Be Also Configure Tank Surface Skimmer As Per Real Working Circumstances To Collect Pool Surface Scum Which Will Then Be Discharged Out Of The Pool Via Scum Hopper

Feature of Travelling Bridge Peripheral Drive Mud Scraper

- Simple Design Work Good-looking Bridge adopts Truss Structure.

- Maintenance Is Simple And Convenient With Low Operating Costs

- Multiplex Reducer Options:

A. Simple & Compact Shaft-Mounted One With Easy Maintenance;

B. Cyclonic Reducer Has High Transmission Efficiency With Competitive Cost

- Multiple Optional Walking Wheel Material: Rubber (standard configuration) or Steel. Nylon , Polyurethane As Per Customized Requirement.

- The Efficient Logarithmic Spiral Scraper Plate Ensures Its Reliability

- Outdoor Safe & Reliable Electrical Components With Both Random And Remote Control.

- OEM manufactured or SS Water-Touched Components Available

Structure &Working Principle of Peripheral Drive Transmission Sludge Collector

Peripheral Drive Scraper Can Be Divided Into Full And Half Bridge Styles

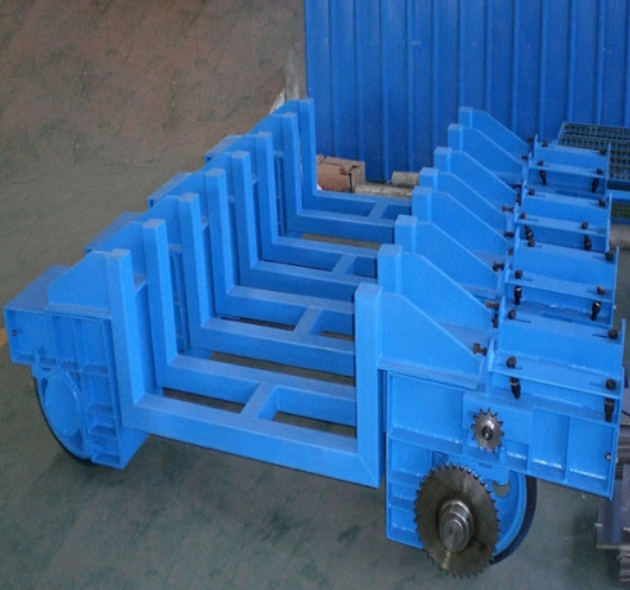

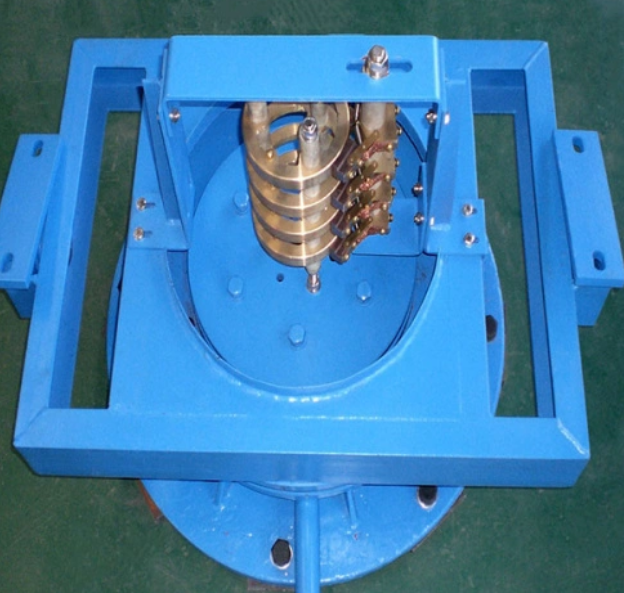

It Is Composed Of Such Main Parts As Working Bridge, Scraping Arm And Scraper Plate Assembly, Center Bearing, Drive Mechanism, Collector, Electric Control Box And Such Optional Parts As Triangular Water Outlet Weir Plate, Steady Flow Tube, Slag Plate, Scum Skimming Board And Other Accessories( Configure As Per Demand Of Customers) .

The Working Bridge Rotates Surrounding With The Center Pool Support Driven By Side Driving Mechanism The Scraping Arm Hanged Under The Bridge Rotates The Logarithmic Helix Plate, And The Settled Bottom Pool Sludge Is Collected Into The Central Sink By The Scraper Plate . The Scum On The Liquid Surface Is Concentrated In The Tapered Area Formed By The Dross Scraper And The Surrounding Slag Board, And The Scuffer Will Rake The Concentrated Scum Into The Sludge Silo Then Discharged Out .

Applicant of Sludge Settling Tank Scraping Machine

-First Sedimentation Tank of STP, ETP, WWTP

-Secondary Sedimentation Tank of STP, ETP, WWTP

-Water Supply And Drainage Engineering

-Chemistry

-Aquaculture

-University Water Supply

-Food Processing

-Hotel

-Light Industry WWTP

-Metallurgy ETP

-Mining Coal Water Treatment

Model Instruction and Specification of Integrated Radical Flow Settler Mud Scraper

LHPS

Pool Diameter (m)

Half Bridge Peripheral Drive Sludge Scraper

Half Bridge Scraper Technical Parameters Table

Model	Pool DN (M)	Water depth (M)	Pool depth (M)	Peripheral speed (m/min)		Power (kw)
Model	Pool DN (M)	Water depth (M)	Pool depth (M)	1^st Settler	2nd Settler	Power (kw)
LHPS18	18	2.6-3.6	3-4	≦3	≦2	0.55*2
LHPS20	20	2.6-3.6	3-4	≦3	≦2
LHPS25	25	2.6-3.6	3-4	≦3	≦2
LHPS30	30	2.6-3.6	3-4	≦3	≦2
LHPS35	35	2.6-4.1	3-4.5	≦3	≦2
LHPS40	40	2.6-4.1	3-4.5	≦3	≦2
LHPS45	45	2.6-4.1	3-4.5	≦3	≦2	0.75*2
LHPS50	50	2.6-4.1	3-4.5	≦3	≦2
LHPS55	55	2.6-4.1	3-4.5	≦3	≦2
LHPS60	60	2.6-4.1	3-4.5	≦3	≦2

Surface Bottom Peripheral Transmission Mud Skimmer
