LCD Series CS skided Chemical Dosing Plant

 

LCD Series CS skided Chemical Dosing Plant

Payment Type: T/T

Supply Ability: 50 sets per months

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LCD500-I

Brand: Loren

Place Of Origin: China

Status: New

Product Type: Detergent Powder

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Motor, Pressure Vessel

Warranty Period: 1 Year

Core Selling Point: Multifunctional

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Integrated Chemical: storeage and dosing together

Two Layers Design: to save room

Both Layers: Round Barrel skided

High: Dosing Accuracy, Operational Reliability.

Powdered Or Liquid Feed: Optional choice

Can Modules Arrangement: of Different large capaicty

OEM ODM Design Or Fabrication: Available

Long: Working life

Cost-effective: anti-erosion handled

Product Description

LCD Series PAM /PAC Chemical Dosing Plant

Chemical Storage Reactor Definition

LCD Series Chemical preparation and Dosing systems from Loren Industry are designed to dissolve and dilute powders and granules as well as diluting concentrated liquids. All plants from our company are distinguished by precision, reliability and safety. High efficiency is achieved through low servicing expense, general ease of maintenance and the long lifetime.

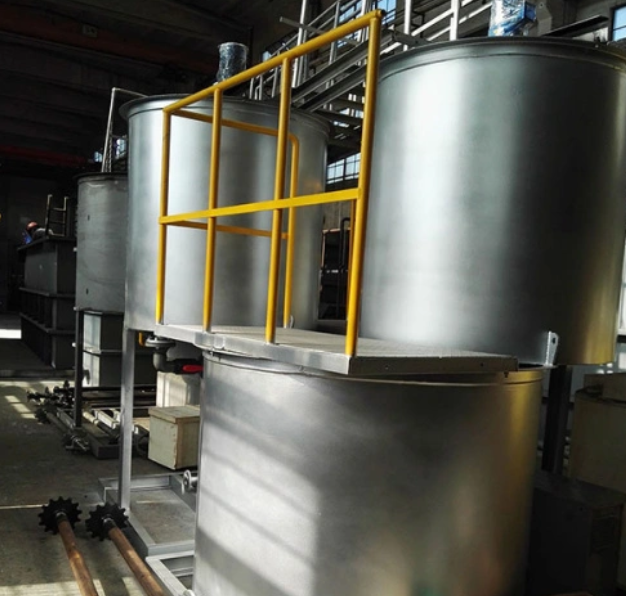

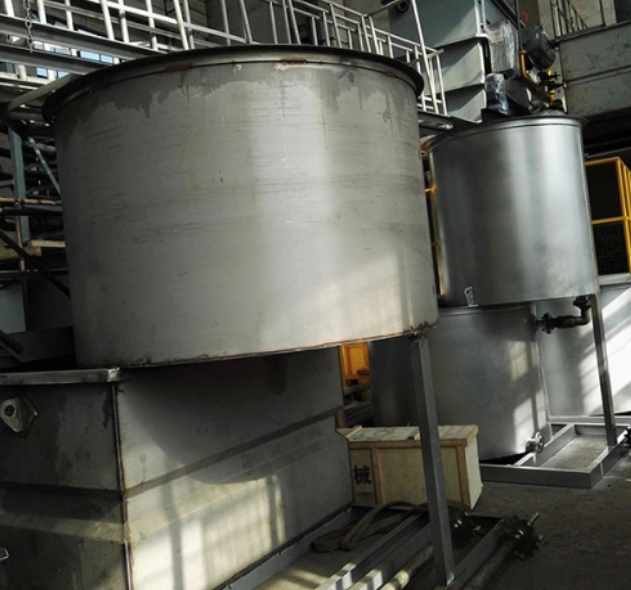

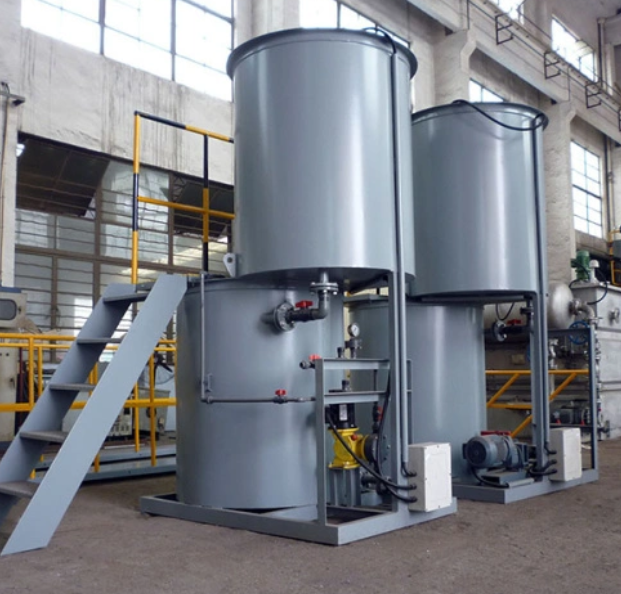

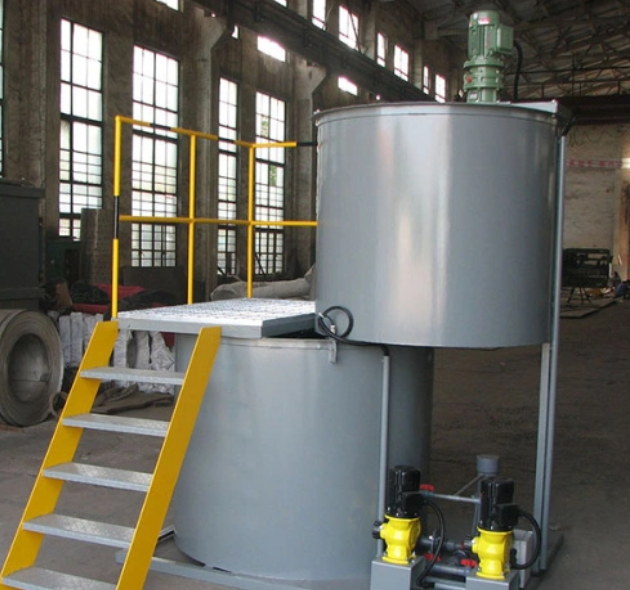

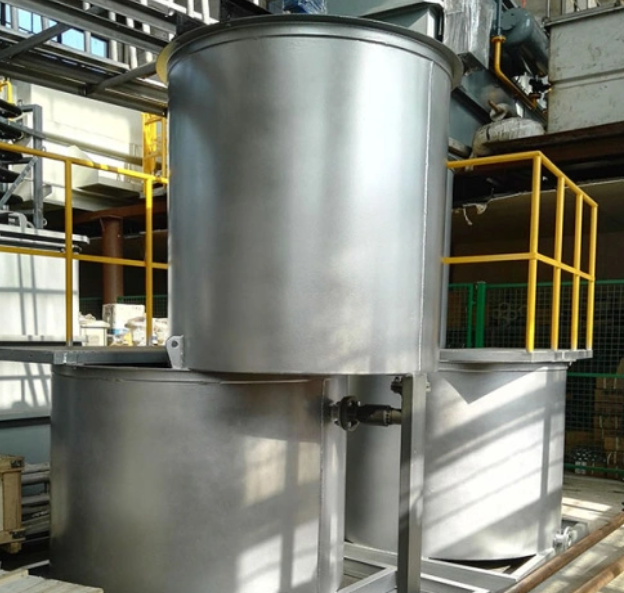

Integrated Drug Storage and Dosing System Components

Loren LCD serried Powder Dosing Plant m has configured two Separated Solution Tank and Storage Tank to Make Powder Fully dissolved and diluted into The Clean Water, besides these, it also including two supporting Agitators, Platform and Ladder as well as optional Supporting Metering Pumps and Inner Collection HPVC Pipeline

Wholesale Chemical Dosing Pump System Features
-High Dosing Accuracy

-Optional Powdered Or Liquid Feed Design To Meet Different Requirement
-Easy For Installation, Operation& Maintenance.
-High Operational Reliability.

-Precision Design To Prevent Particle Blocking

-E-Control Cabinet With Proportion Liquid Solution Melting Controlling.

-Tank material optional:epoxy CS/ SS304 or SS316L

-Accessories In Great Variety.
(All Customized Models Are Available By Online Inquiry).

Applications

It is an Idea Preparation Plant for

-Polymers

-Calcium or calcium hydroxide LCD1000-II

-Activated carbon

-Aluminium

-Diatomite

-Bentonite

-Urea

-Lime Milk /Calcium Hydroxide Solution (From Slaked Lime, Hydrated Lime)

-Iron III-Chloride Solution

-Iron II-Chloride Solution

-Aluminium Hydrochloride Solution (PAC Solution )

-Aluminium Sulphate Solution/ Iron Sulphate Solution

-Potassium Permanganate Solution

-Ammonium Sulphate Solution or Calcium Hypochlorite Solution

-And other salts with similar chemical characteristics

Specification and Round Storage Model Table

Model	Capacity (L/H)	Power (kw)	Dimension (mm)
LCD300-I	300	0.75	120013002560
LCD500-I	500	0.75	240017002930
LCD800-I	800	0.75	270018002930
LCD1000-I	1000	0.75	270019502930
LCD1500-I	1500	0.75	290022002930

Rectangular Storage Dural Chemical Dosing Model Table

Model	Capacity (L/H)	Power (kw)	Dimension (mm)
LCD500-II	500	0.75*2	320016002930
LCD1000-II	1000	0.75*2	370019202930
LCD1500-II	1500	0.75*2	410021802930
LCD2000-II	2000	1.10*2	470024252930
