Loren TI3 Structrue LMV-1 MVR Evaporator

 

Loren TI3 Structrue LMV-1 MVR Evaporator

Payment Type: T/T

Supply Ability: 10 sets Per Three Months

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LMV-1

Brand: Loren

Applicable Industry: Food &Amp; Beverage Factory, Energy &Amp; Mining, Food &Amp; Beverage Shops, Farms, Restaurant, Manufacturing Plant, Construction Works

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Pressure Vessel, Gear

Old And New: New

Energy: Natural Gas

Craft: Vacuum Distillation

Place Of Origin: China

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Key Function: Evaporation or crystallization

Small Power Consumption: 0.9- 1.2kWh/m3

Heat Transfer Efficiency: Higher

Temperature Difference Range: 5-8℃

Running Low Temperature Range: 50-70℃

Large Operation Load Range: 110%-40%

Adopts: CIP Cleaning Pipeline

Per Ton Water Evaporation: 23-70KW

Little Temp. Difference And Little Fouli: Through Compressor Heat Feeding

OEM ODM After Sale Service: Available

Product Description

Sugar Crystallizer Multi-Effect Evaporator

Definition of Mechanical Vapor Re-compression

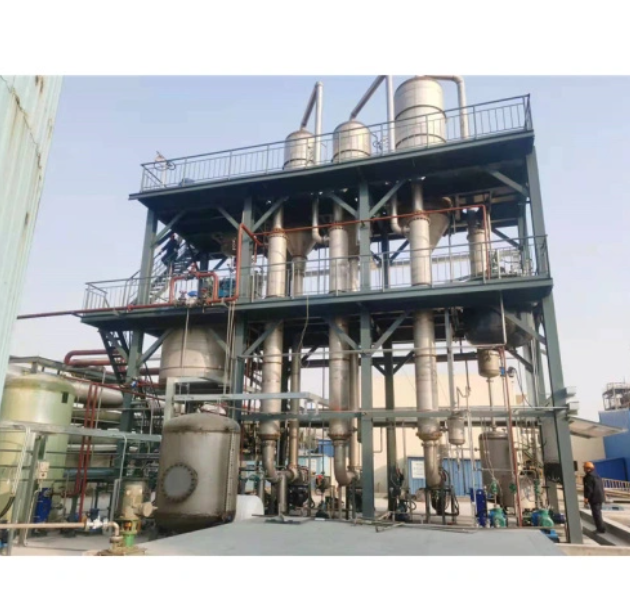

A Multi-Effect Evaporator Is a Combination Of Multiple Single-Effect Evaporators To Form An Integrated Evaporation System By Adopting Low Pressure And Low Temp Technology With Clean Energy To Separate Water Into All Media Of Pharmacy Industry Likewise. According To Different Connection Forms, It Can Be Divided Into Forward Flow, Reverse Flow And Parallel Flow Ones

Working Principal of Mvr Forced Circulation Evaporator

Taking Advantage of Secondary Stage Large Steam and Latent Heat (Fully Utilized Through Mechanically Compressed and Condensed by A heat Ex-changer) Into Another Evaporator Heating Chamber, Firstly Heated Steam Evaporator Called Single Efficiency , Use First Steam as Heating source can called dual-Efficiency Evaporator, Vise worse to Save Steam Consumption

High Efficient Vacuum Mvr Evaporator Composition

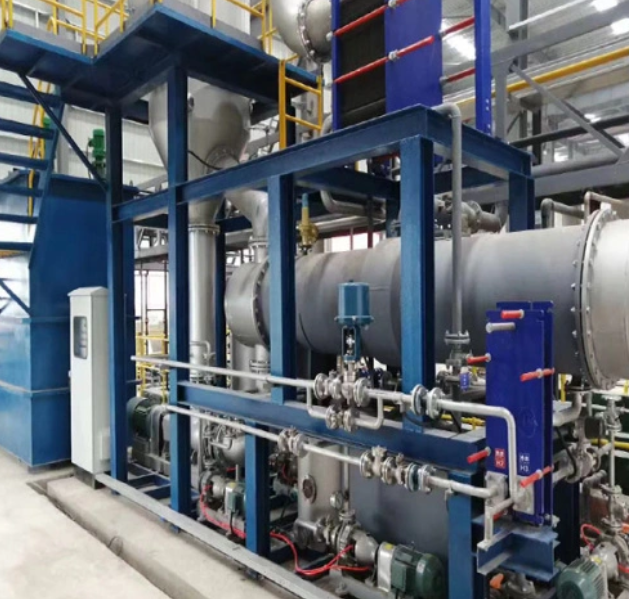

It Is Composed Of Heater, Separator, Air Compressor, Vacuum And Circulated Pumps, Operation Platform, Pipeline , Meters ,Valves And e-Box

System Main Feature & System Technical Advantage

-Only Need Little Volume of Steam

-High Heat Transfer Efficiency With Short Heating Time

-Small Power Consumption: About 0.9- 1.2kWh/m3

-Large Operation Load Range:110%-40%

-Running Low Temperature Range: 50-70℃

-Temperature Difference Range:5-8℃

-Compressor Supply Heat with Little Temp. Difference and Little Fouling.

-Reduce Feeding Material Requirement

-No need Condenser or Small Condenser

-Configure CIP Cleaning Pipeline

-Recover the Investment Between 1.5-3 years

-23-70KW.H per Ton Water Evaporation

1.10~1.20 M3 Steam For Single-Effect Evaporator

0.60~0.70 M3 Steam For Dual-Effect Evaporator

0.37~0.46 M3 Steam For Triple-Effect Evaporator

0.30~0.35 M3 Steam For Four-Effect Evaporator

0.24~0.30 M3 Steam For Single-Effect Evaporator

-Fit for the Instability of Water Quality Condition

Applicant

-Sea Water Desalination

-Pharmaceutical Industry

-Fermented Sugar Juice Industry

-Food Processing Industry

-Beverage Industry

-Dairy Industry

-Corn Steep Liquor

-Wine Tank Filtrate

-Fermentation Feed Liquid

-High Concentration Organic

-Chemical Wastewater

-Non-ferrous metal industry

-Smelting

-Steel Mill

-Oilfield

Comment or Design Demand

-When Liquid Concentration Is About 50%, Only The MVR Evaporator Can Complete It,When The Required Concentration Is 60%, An Extra Flash Evaporation Device Needs To Be Installed.

-All Kind of Steam Compressor Choose as per site process

-MVR Investment is relatively high ,need check as per site condition

-Will Subject To Suitable Solution To Assure Its Maximum Performance Thus To

Solve Such Problems As Boiling Point Increasing,Large Concentration Ratio And Corrosivity From 2nd Steam
