Namo Generator for River Purifier

Namo Generator for River Purifier

Payment Type: T/T

Supply Ability: 500 Sets per month

    Contact Now
    Share:
    Product Attributes Supply Ability & Additional Information
    Product Attributes

    Model No.: LNG50

    Brand: Loren ,Huayi, Xinsong

    Status: New

    Applicable Industry: Farms, Food &Amp; Beverage Shops, Garment Shops, Restaurant, Food Shop, Manufacturing Plant, Machinery Repair Shops, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining

    Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

    Video Factory Inspection: Provided

    Mechanical Test Report: Provided

    Marketing Type: New Product 2020

    Core Component Warranty Period: 3 Years

    Core Components: Pump

    Place Of Origin: China

    Warranty Period: 1 Year

    Productivity: 3000l/Hour

    Air Source: Air, Oxygen, Ozone, Nitrogen

    Main Function: Oxygen Boosting & Solid Liquid Seperation

    Combined: Physic and Biolocical treatment

    OEM ,ODM: Available

    Can Be Integrated: Ion Exchanger, Roots Fan , Pump , Membrane

    Esp. For: Aquaculture and River Purifier

    Mounting Way: Site or On Lake or Sea

    Delivery And Service: Fast

    Control System: Local/Remote Intelligent Control

    Design: Customized


    Product Description

    Micro-Nano Bubble Generator

    Definition of Micro-Nano Aeration System

    The Micro Nano Bubble Generator (Combined With Ion Exchanger ) Independently Developed By Loren Industry Co. Is a New Generation High Efficiency Environmental Protection & Water Environment Pollution Recover. Technology.

    Being Familiar With a Various Characteristics Of Micro Bubbles Such As Its Negative Ions, Slow Moving Speed &The Equivalent Of Ozone Bubbles Can Play a Bactericidal Effect. it Can Replace The Current Domestic Bubble Generation Technology &Some Aeration Equipment,It Can Efficiently Realize Functions Such As Oxygen Boosting &Aeration, Air-Floating Separation, Oil-Water Separation, Oxidative Decolorization, Nitrogen &Phosphorus Removal.

    Composition

    The Micro-Nano Aeration System Consists Of Micro-Nano Bubble Generator, Diffusion Device, Snorkeling Device, Limit Device &Control Device.


    Feature

    -Combined with Ion Ex-changer Can Kill Algae & Weeds

    -Optical Material : FRP, Steel, Plastic, FRP,Steel Concrete Structure

    -Large Volume Micro Nano Bubbles

    -High Oxygen Tolerance Rate

    -Simple Structure

    -High Treatment Efficiency

    -Easy Assembly

    -Stable Operation

    -No Clogging Performance

    -Low Operating Cost

    -Low Energy Consumption

    -Gas Source Optional: Air, Oxygen, Ozone, Nitrogen

    -Combined with Ion Exchanger Can Kill Algae & Weeds

    -Automatic Local/Remote Intelligent Control



    Application

    -Aquaculture

    -Landscape Engineering

    -River Improvement

    -Water Reuse

    - Sewage Treatment

    -Air-Liquid Mixing, Etc., Combined With Different Inlet Air Sources (Such As, Etc.) A

    -Minimal equipment

    -Teaching Demonstration

    -Small Scale Tests

    - Pilot Experiment

    - Integrated Treatment Unit

    -Quick Large-Scale Purification Of Black-Odor River

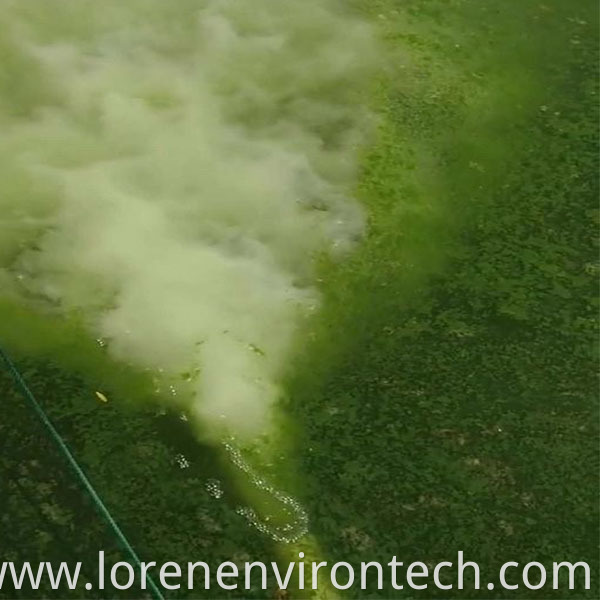

     micro nano bubble generator 11



    Model & Specification

     Main Parameter of The Micro Mano Bubble Generator

    Model

    Capacity

    (m3/h)

    Power

    (Kw)

    Dimension

    (mm)

    Comment

    LNG-0.2

    0.22

    0.125

    300*140*280

    Potable Style 220V

    LNG-2.0

    2.0

    0.30

    600*300*400

    Float Style or Floor Mounted , Can Optional Choose Aerator or Odor

    LNG-4.0

    4.0

    0.55

    600*300*600

    LNG-6.0

    6.0

    0.75

    600*500*600

    LNG-10

    10

    1.1

    600*500*800

    LNG-20

    20

    2.2

    980*540*1860

    Float Style or Floor Mounted , Can Optional Choose Aerator or Odor or Chemical Dosing

    LNG-30

    30

    3.0

    980*540*1860

    LNG-40

    40

    5.5

    1200*600*1400

    LNG-60

    60

    5.5

    1200*600*1500

    LNG-80

    80

    7.5

    1200*600*1650

    LNG-100

    100

    11

    1200*600*1700

    Floor Mounted , Can Optional Choose Aerator or Odor or Chemical Dosing

    LNG-120

    120

    15

    1800*1000*1800

    LNG-160

    160

    18

    1800*1000*1800

    LNG-200

    200

    22

    1800*1000*1800

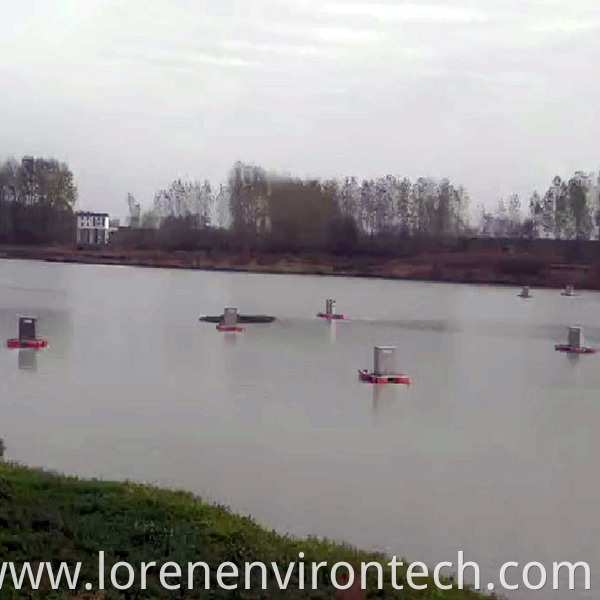

    micro nano bubble generator 9


    Main Parameter of The Matching Aerator System

    Model

    Capacity (m3/h)

    Power (Kw)

    Cover Area (m)

    Comment

    LSA-1.2

    30

    1.2

    40

    Surge Aerator

    LWA-1.2

    30

    1.2

    40

    Water Spray Aerator

    LWA-2.2

    60

    2.2

    60

    LIA-1.2

    30

    1.2

    40

    Impeller Aerator

    LOA-0.75

    25

    0.75

    30

    Ordinary SprayFountain

    LCA-0.75

    30

    0.75

    30

    ColorSprayFountain

    LOA-2.2

    60

    2.2

    60

    Ordinary SprayFountain

    LCA-2.2

    60

    2.2

    60

    ColorSprayFountain

    LMA-3.0

    70

    3.0

    80

    MicroPorous Aeration

    LMA-5.5

    80

    5.5

    90

    LTA-1.1

    50

    1.1

    100

    Thrust flow Aerator



    LTA-1.5

    80

    1.5

    130

    LTA-2.2

    150

    2.2

    160

    LTA-3.0

    200

    3.0

    180

    LTA-4.0

    280

    4.0

    200

    LIE-3.0

    100

    3.0

    70

    Oxygen Ion Exchanger
