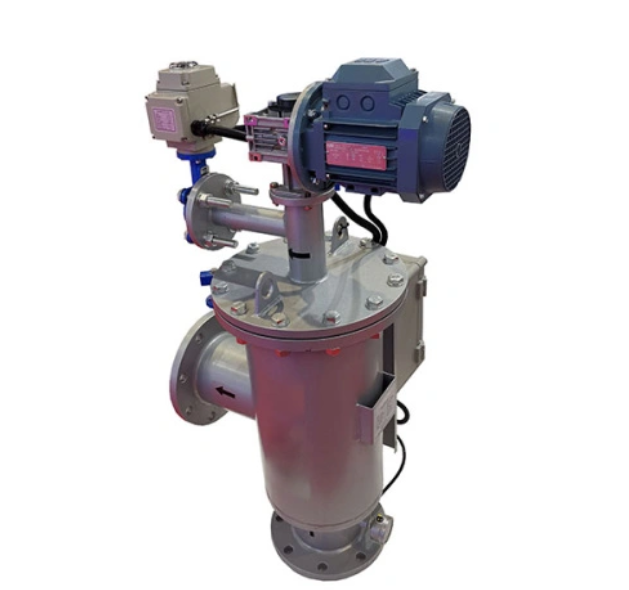

Industrial Auto Backwashing Filter

Payment Type: T/T

Supply Ability: 120 sets per month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LSF-15

Brand: Loren

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Pressure Vessel

Old And New: New

Place Of Origin: China

Warranty Period: 1 Year

Service System: Field Installation, Commissioning And Training

Filtration Accrancy: 20-150 um

No: Driving Mechanism, Filter Consuming Material like Filtrate or Bags

Compact: Design

Fully Online Filtration: No Turning off the Inlet Valve

Total Liquid Lost: Within 1%

Power Consumption: nO

Service: OEM, ODM

Product Description

Auto Self-Cleaning Filter

Definition

LSF Serious Fully Automatic Self-Cleaning Filter Is a Filter That Directly Intercepts Impurities In The Water, Removes Suspended Solids & Particulate Matter In The Water Body, Reduces Turbidity, Purifies Water Quality, Reduces System Dirt, Bacteria or Algae, Rust, Etc. It Is a Precision Equipment That Works Normally. Water Enters The Fully Automatic Filter Body From The Water Inlet. The System Can Automatically Identify The Degree Of Impurity Deposition & Send a Signal To The Sewage Valve To Automatically Discharge Sewage.

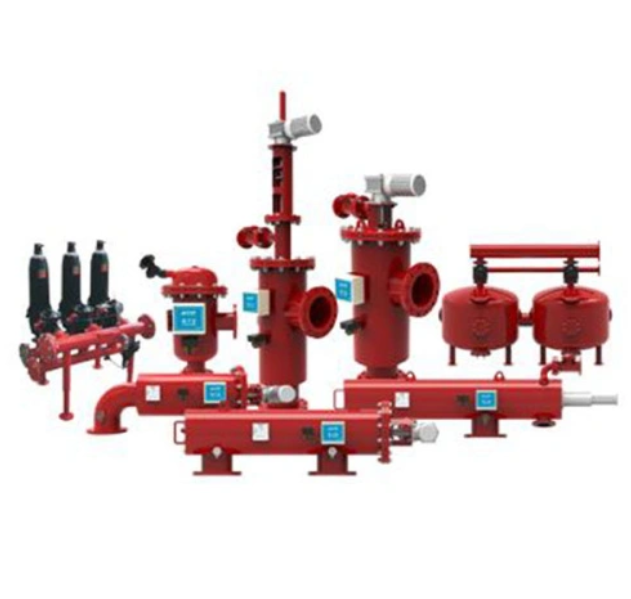

Design Three Types

Scraper Type Self-Cleaning Filter

Automatic Back-washing Filter

Laminated Disc Filter System,

Feature and Performance

-Automatic Cleaning & Automatic Slag Discharge

-No Filter Consuming Material like Filtrate or Bags

-Fully Online Filtration without Turning off the Inlet Valve

-Removal Particle Grain Size Above 20 um

-Within 1% of Total Liquid Lost

-Cleaning Pan With Spring Compensation Design

-Mainly Used In 1000000cp High Viscosity& Highly Corrosive Liquids

-Optional Choice of Single Unit or Combined Modules In Parallel

-Optional PLC controller with Data Adjustable

-Material Structure: Coated CS or Stainless Steel

- Low Power Consumption

-Running Stably and Maintaining Easily

Applicant

-Drinking Water Treatment

-Building Circulating Water Treatment

-Industrial Circulating Water Treatment

-Sewage Treatment

-Mining Water Treatment

-Golf Course Water Treatment And Other Fields.

-Metallurgy: Continuous Casting Water, High Pressure Phosphorus Removal Water,

Net Ring Water, Turbid Ring Water Filtration, Cooling Water Full Filtration

-Electric Power Plant: Steam Turbine Cooling Water Filtration, Gray Water Recovery Filtration, Dust Suppression Nozzle Protection, Cooling Tower Water Full Filtration And Side Filtration And Other Raw Water

-Agriculture: Sprinkler Irrigation, Drip Irrigation Water Treatment

-Others: Construction, Steel, Petroleum, Chemical, Electronics, Power Generation, Textile, Paper, Food, Sugar, Pharmaceutical, Plastic, Automobile Industry, Etc.

Main Decanter Technical Parameter Data

Model	Flow (m³/h)	Cylinder DN*L(mm)	Mesh DN*L(mm)	Inlet/Outlet DN (mm)
LSF-15	1-15	219*1000	150*480	50
LSF-30	15-30	273*1200	160*480	80
LSF-120	30-120	377*1600	270*670	150
LSF-200	120-200	426*1800	285*780	200
LSF-450	300-450	500*1800	410*910	300
LSF-800	600-800	630*2000	510*1300	400
