Inclined Spiral Grating Machine

Payment Type: T/T

Supply Ability: 50 Sets per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: DS-600

Brand: Loren

Status: New

Applicable Industry: Garment Shops, Farms, Food &Amp; Beverage Shops, Building Material Shops, Retail, Manufacturing Plant, Machinery Repair Shops, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Motor, Gearbox

Place Of Origin: China

Warranty Period: 1 Year

Productivity: 250l/Hour, 5000l/Hour, 100l/Hour, 750l/Hour, 7500l/Hour

Drum Mesh Hole: 0.5-5mm

Mounting Angle: 35 Degree around

OEM, ODM: Available

Single Set Max. Flow: 5300 CBM

After Sales Sevice: With 8 Hours Respnose and Solution

Can Be Replaced By: Our Other Special design Types

Design: Inclined Spiral Grating Machine,

Combined: Screen, Conveyor and Compacting Together

Model: 500-2800mm

Applicant: Fine Solid Purification

Product Description

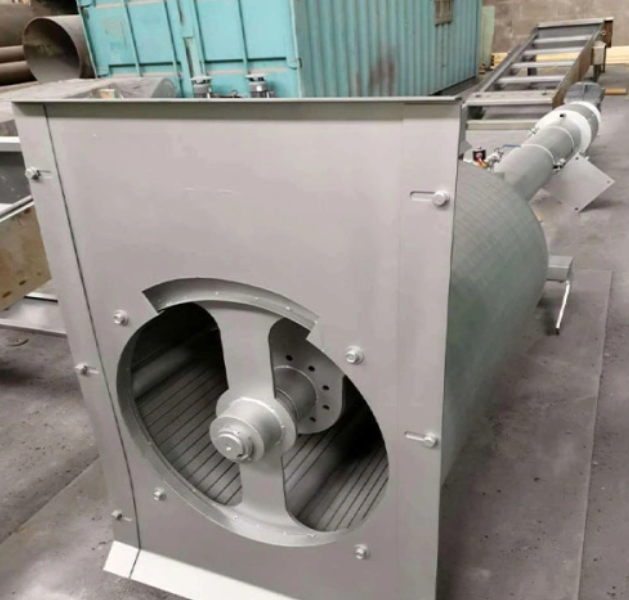

Drum Grille Screw Drum Screen

Known As Fine Grille Filter Or Spiral Grating Machine, The Drum Style Mechanical Grille Is An Integrated Equipment Of Fine Grille Decontamination Machine,

Sludge Screw Hoist And Grille Screw Press.

It Is An Ideal Equipment For Separating The Floating Material, Sedimentation Material And Suspended Matter In The Process Of Urban Sewage Treatment Plant And Industrial Waste Water Treatment. It Is Widely Used In Municipal Sewage Treatment Plant, Solid-Liquid Separation Of Industrial Waste Water Treatment, Residue Cleaning, Transmission And Compacting Dehydration.　

Applicable Range

-The Pre-Treatment of Sewage Treatment Equipment.

-.Debris Removal In Such Waste Waste Water Field As Factories, Hospitals, Residential Quarters.

-Industrial Waste Water Solid Separation In Mineral, Paper, Chemical Fiber, Textile, Printing And Dyeing Industries

-The Later Craft Of Decontamination, Slag Separation And Compacting Dehydration For Sewage Treatment Plant

-Decontamination, Slag Separation And Squeeze Dehydration In Industrial Waste Water Treatment Engineering.

Structure And Working Principle

Model			DS600	DS800	DS1000	DS1200	DS1400	DS1600	DS1800	DS2000
Drum DN			600	800	1000	1200	1400	1600	1800	2000
Mesh Length			650	850	1000	1200	1400	1500	1650	1850
Conveyor Tube DN			159	219	219	273	273	325	325	325
Maxi Water Level H3			400	520	670	820	950	1100	1250	1350
Mounting Angle			35°
Channel Depth H2			0.6-0.8	0.7-1	0.9-1.2	1.1-1.4	1.2-1.6	1.4-1.8	1.6-2	1.8--2.1
Discharge H1			1m
Min. Mounting L			3000	3300	3600	4000	4300	4700	5000	5300
Max. Flow m3/h	G A P mm	0.5	80	135	235	315	450	585	745	920
		1	125	215	370	505	720	950	1205	1495
		2	190	330	555	765	1095	1440	1830	2260
		3	230	400	680	935	1340	1760	2235	2755
		4	235	430	720	1010	1440	2050	2700	3340
		5	250	465	795	1105	1575	2200	2935	3600

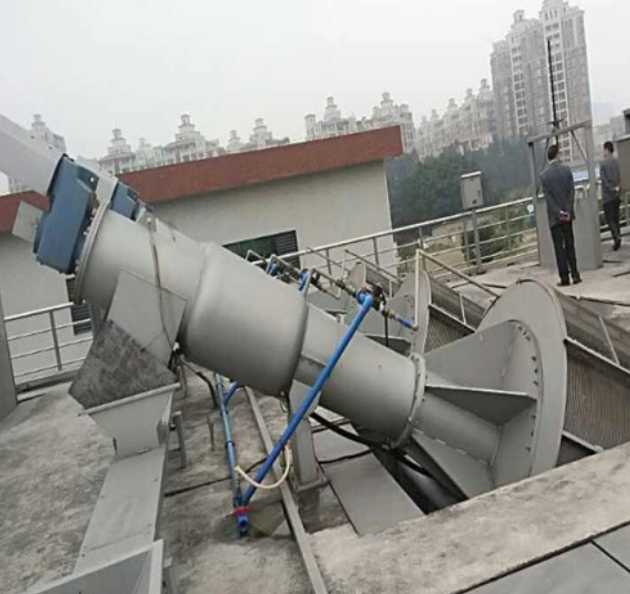

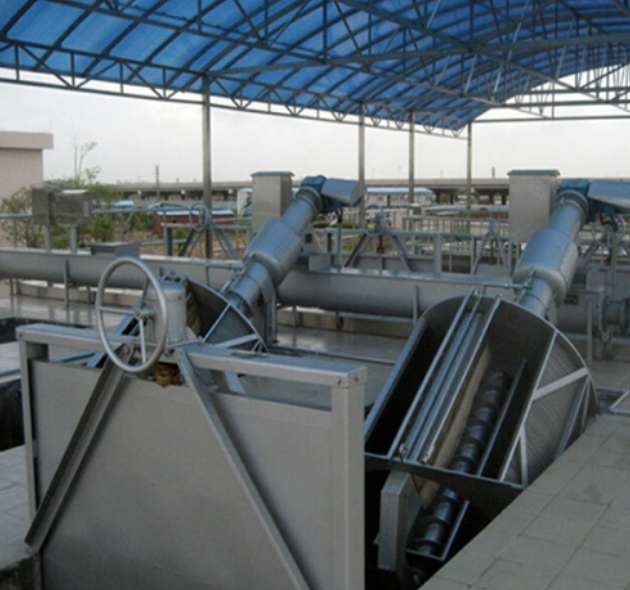

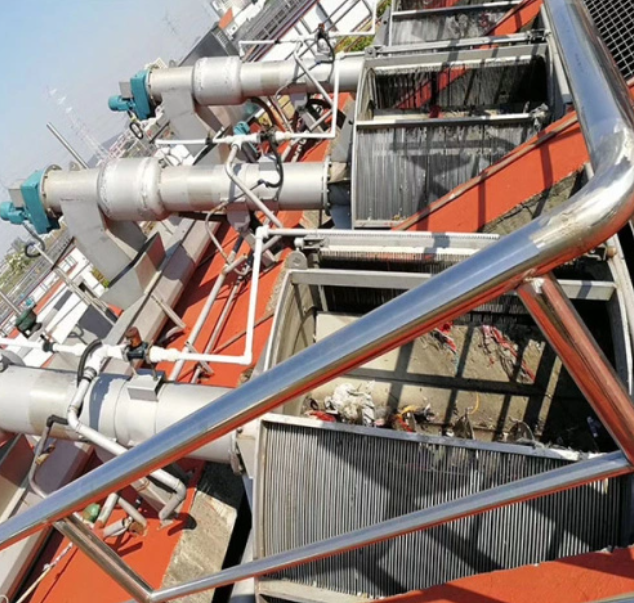

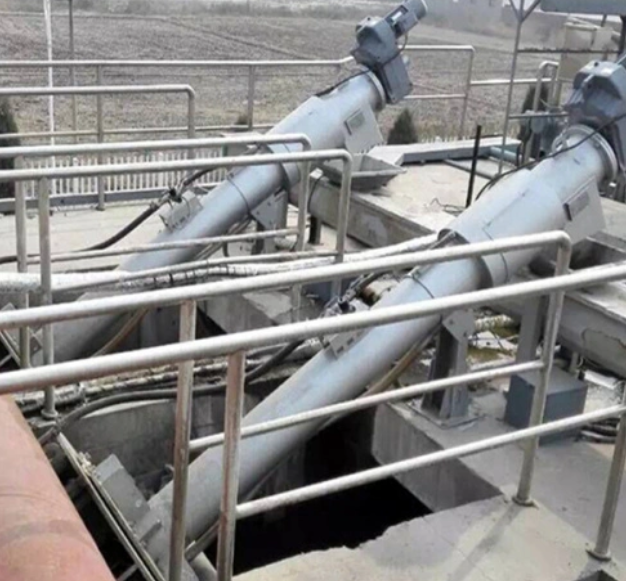

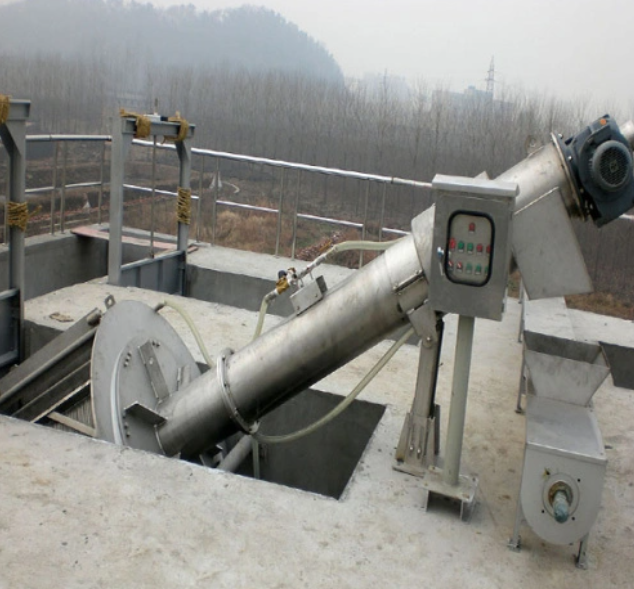

The Grille is mounted in the water channel as angle of 35 degree. Sewage flow into the drum from drum ends and output from its side gaps.

The grill will remain the SS and floating objects in the drum which will rotate at a speed of 4.6 rpm. And the upper drum nylon brush and

flushing water nozzle will remove and tidy the grille slag and transform the slag into the upper discharge Hopper via removed and dried

by a screw conveyor. It is dehydrated and transported to the upper hopper via the conveyor to realize extrusion, dehydration and transportation.
