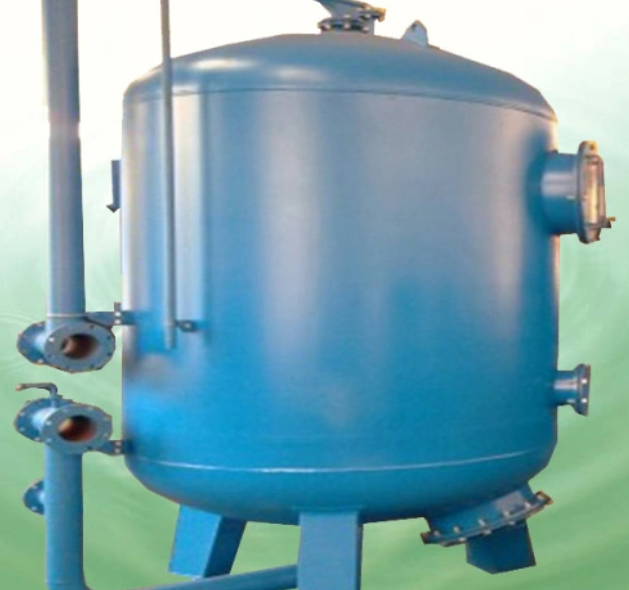

Middle Speed Multiple Media Filter

Payment Type: T/T

Supply Ability: 50 sets per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: MSF800

Brand: Loren

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Bearing, Gear

Old And New: New

Place Of Origin: China

Warranty Period: 1 Year

Service System: Online Support

Working Temperature: 3～50℃;

Max. Running Speed: 25m/h

Max. Running Pressure: 0.6MPa

Backwashing Way: Compressed Air with Water

Backwashing Water Pressure: 0.15MPa

Backwashing Water Strength: 20M3/m².h

Backwashing Air Pressure: 0.07MPa-0.1MPa

Backwashing Time: 5～10min

Packing Layer Height: 1500~2000mm

OEM ODM Service: Available

Product Description

LMSF Serious Mechanical Filter

Brief introduction

Serious Type Speed Filter Is Designed By The Anshan Ministry Of Metallurgical Mining Design Institute Of Ferrous Metallurgy, Which Summarizes Years Of Design And Operation Of Mining Experience, Absorb The Latest Technological Achievements. For Circulating Water Supply Systems, As By Pass Filter Equipment And Filtration Devices For Raw Water Turbidity ≤20mg / l. It Ensures Water Quality With Large Capacity, Small Footprint, Highly Appropriate Advantages Compared To Other Normal Filter.

Working Principle

Taking Advantage of Its Upper Anthracite Packing and Down Quartz Sand Or Cobblestone to Form Separated Filtering Layer thus to Separated Oil and Grease after Float ion and Purify Suspend Solid Under Sequence Auto Back Washing to make the filter as a Filtering Bed

Feature and Characteristic

-Compact Structure Design

-Large Treated Capacity

-High Speed Filtration

-Small Footprint

-Easy Operation and Running

-High Accuracy of Filtration

-Not Easy to Happen Fault

-Lower Investment

-Air Water Mixed Auto Back Flushing with Average Air Distribution

-Can Realized Multiple Sets Auto Controlled Integration

Applicant

-Metallurgical Waste Water Treatment

-Chemical Waste Water treatment

-Light Industry Factory Wastewater Treatment

-Mining Waste Water Treatment

-Steel Factory Waste Water Purification

-Bypass Filtration in Circulating System of Waste Water Treatment

Parameter and Model Selection

Model	MSF-800	MSF-1200	MSF-1600	MSF-2000	MSF-2600	MSF-3000
Inlet Area(m2)	0.50	1.13	2.0	3.14	5.3	7.07
DN (MM)	800	1200	1600	2000	2600	3000
Speed	10-25	10-25	10-25	10-25	10-25	10-25
Max. Volume	12.5	28.25	50	78.5	132	176.25
H (mm)	3400	3600	3800	4200	4600	4800
N.W. (KG)	1.44	1.92	3.12	5.28	6.80	9.2
G.W. (KG)	5	10	18	20	33	43
Max. Water Pressure		≤0.4Mpa
RW Quality	S.S.	≤80mg/L
RW Quality	Oil	≤10-20mg/L
Outlet Water Quality	S.S.	≤10mg/L
Outlet Water Quality	Oil	≤7mg/L
Backwashing Data	Pressure	0.15Mpa
Backwashing Data	Air Pressure	0.07Mpa
Ave. Water Head Lost		0.5MPA

Design Basic Data

1.Working Temperature∶3～50℃;

2. Max. Running Speed∶25m/h;

3.Max. Running Pressure∶≤0.6MPa;

4.Backwashing Way∶Compressed Air with Water

5.Backwashing Water Pressure∶0.15MPa;

6.Backwashing Water Strength∶20M3/m².h;

7.Backwashing Air Pressure∶0.07MPa-0.1MPa

8.Backwashing Air Strength∶15m/min.h;

9.Backwashing Time∶5～10min;

10.Packing Layer Height∶1500~2000mm;
