Coarse Screen for Power Plant

Payment Type: T/T

Supply Ability: 100 sets per month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LCS1000

Brand: Loren

Status: New

Applicable Industry: Hotels, Farms, Food &Amp; Beverage Shops, Restaurant, Food Shop, Manufacturing Plant, Machinery Repair Shops, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Motor

Place Of Origin: China

Warranty Period: 2 Years

Productivity: 500l/Hour, 10000l/Hour, 750l/Hour, 100l/Hour, 1000l/Hour, 20000l/Hour, 250l/Hour, 2000l/Hour, 3000l/Hour, 125l/Hour, 200l/Hour, 4000l/Hour, 5000l/Hour, 7500l/Hour, 50000l/Hour

Main Applicant: Filtration of Large Particle

Solid Particle Size: 3-20mm

Running Way: Continuously Running

OEM, ODM Service: Available

Automatic Runing: Fully Auto

Treated With: High Load and High Efficiency

With: Lower Power Consumption, Low Noise

With: Long life due to little parts

Design: as per Customer's deman

Product Description

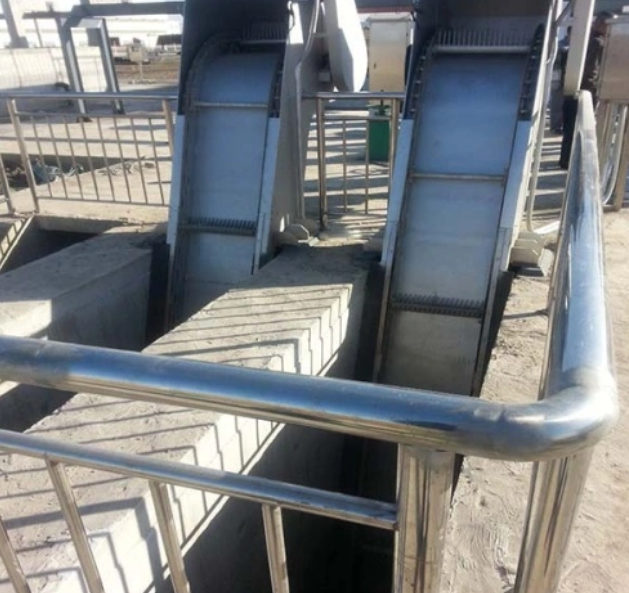

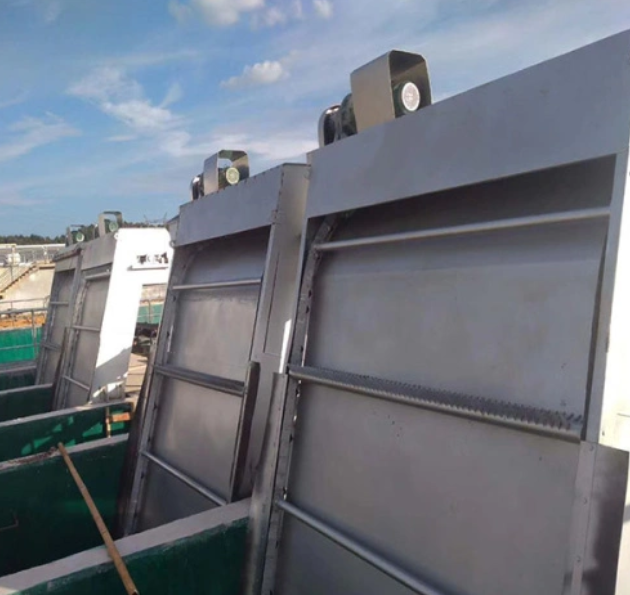

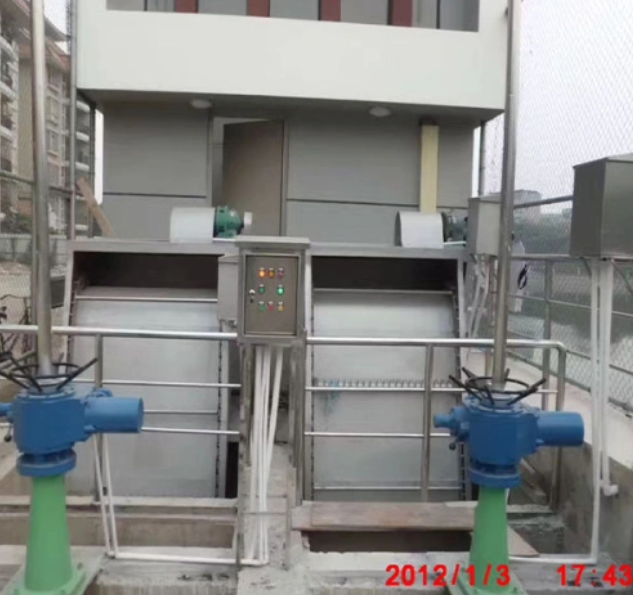

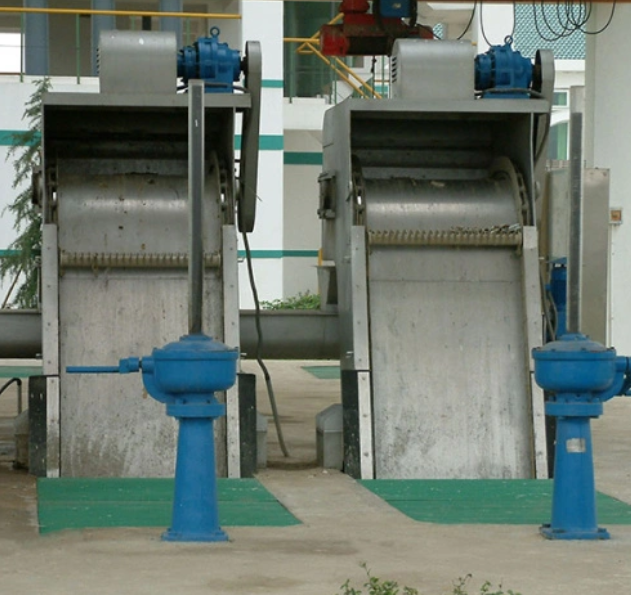

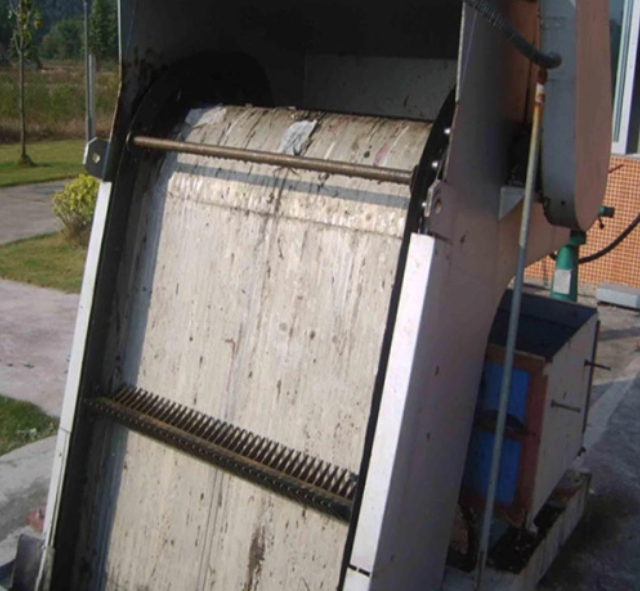

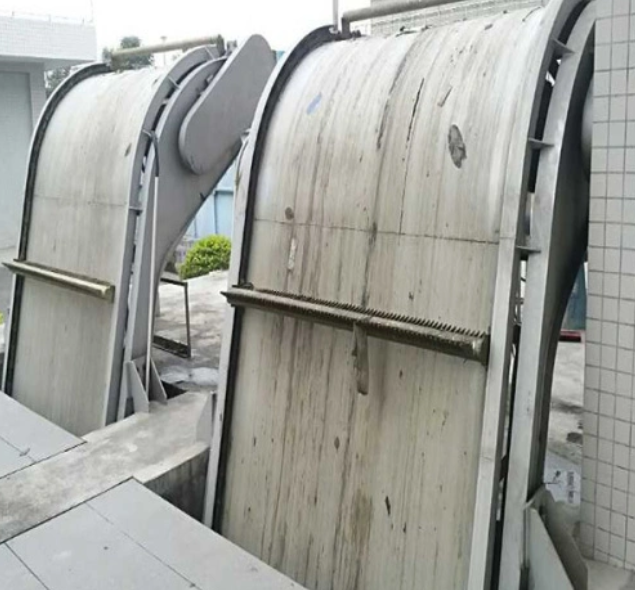

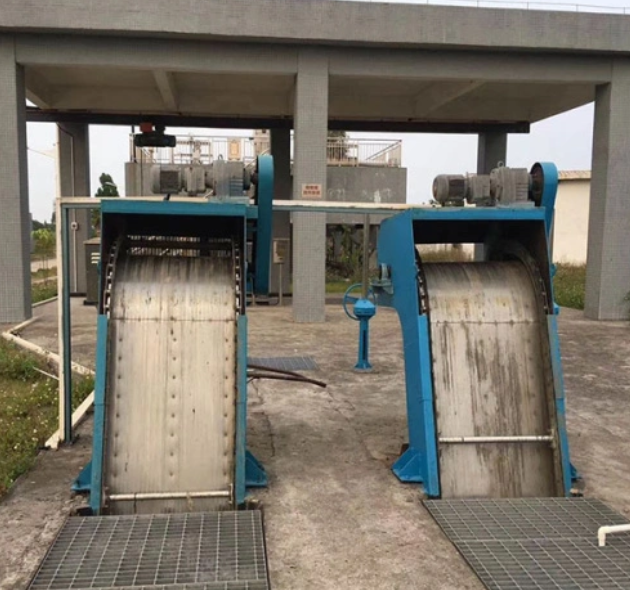

LCS Mechanical Grille Screen

Composition and Principle

LCS-type Mechanical Grille Is Composed of the Rack, Systems Of Drive, Guide, Cleaning, Rake System Etc.

When Running, The Reducer Drives The Sprocket Rotation and The Sprocket Drives The Rake Tooth Chain For The Rotary Motion, and The Rake Chain Teeth Will Remove The Water Debris Continuously. When Moving To The Upper Part Of The Rack, Some Part Of The Debris Will Fall As Per Its Own Gravity, The Other Parts Of The Debris Will Be Scrapped Off By Its Rotating Brush Thus To Make It Finish A Circle, This Circle Will Continuously Copy Running To Make The Debris In The Sink Being Separated Continuously To Ensure The Initial Purification of Sewage and The Protection Of The Follow-Up Drainage Equipment.

Feature & Characteristic

-Continuously Auto Slag Discharge

- Lower Energy Consumption

-Low Noise

- No Easy Clogging

-Not Easy Abrasion

-High Efficiency

-Large Treated Capacity

-Easy Mounting

-Grille Slag is Very Easy to Clean

-Effectively Remove Flat Solid, Fibers, Hairs,

-Easy Operation and Stable Running

-Full Auto Control

Applicant

- Sewage Treatment Plant

-Top Water Purification

-Power Plant

-Food

-Paper Mill

-Leather

-Textile

-Slaughter House

-Pharmacy

-Other Large Suspended Soild Waste Water Site

Technical Specification

Model	Gate Width （mm）	Grille Width （mm）	Channel Width (mm)	Grille Gap （mm）	Over Flow Speed （m/min）	Discharge Height （mm）	Install Angle （°）	Power （kw）
LCS300	300	430	500	3-20	1.8-2.5	600-1200	60-75	0.75
LCS500	500	630	700	3-20	1.8-2.5	600-1200	60-75	0.75
LCS800	800	930	1000	3-20	1.8-2.5	600-1200	60-75	1.10
LCS1000	1000	1130	1200	3-20	1.8-2.5	600-1200	60-75	1.10
LCS1200	1200	1330	1400	3-20	1.8-2.5	600-1200	60-75	1.5
LCS1500	1500	1630	1700	3-20	1.8-2.5	600-1200	60-75	1.5
LCS1800	1800	2090	2200	3-20	1.8-2.5	600-1200	60-75	2.2
