Industrial Drum Filter for Solid Liquid Seperation

 

Industrial Drum Filter for Solid Liquid Seperation

Payment Type: T/T

Supply Ability: 100 sets per month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LODF600

Brand: Loren

Status: New

Applicable Industry: Hotels, Farms, Food &Amp; Beverage Shops, Garment Shops, Restaurant, Building Material Shops, Food Shop, Manufacturing Plant, Printing Shops, Machinery Repair Shops, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Bearing, Motor

Place Of Origin: China

Warranty Period: 2 Years

Productivity: 20000l/Hour, 1000l/Hour, 2000l/Hour, 3000l/Hour, 5000l/Hour, 50000l/Hour, 10000l/Hour, 4000l/Hour, 7500l/Hour, 2500l/Hour

Wedge Gap: 0.5mm-5mm

Water Flow Style: External Water Flow

Main Performance: Filtering Solid in Waste Water

Backwashing: Regular Time Control Backwashing

Com Bined Tota Solution: Available

Auto Control: Fully Auto Run and Auto Slag Discharge

Structure: Stainless Steel or Others

OEM ODM Service: Available with 3D Drawings

After Sales Sevice: Within 8 Hours Response and Solution

Design: Inside Special design to g

Product Description

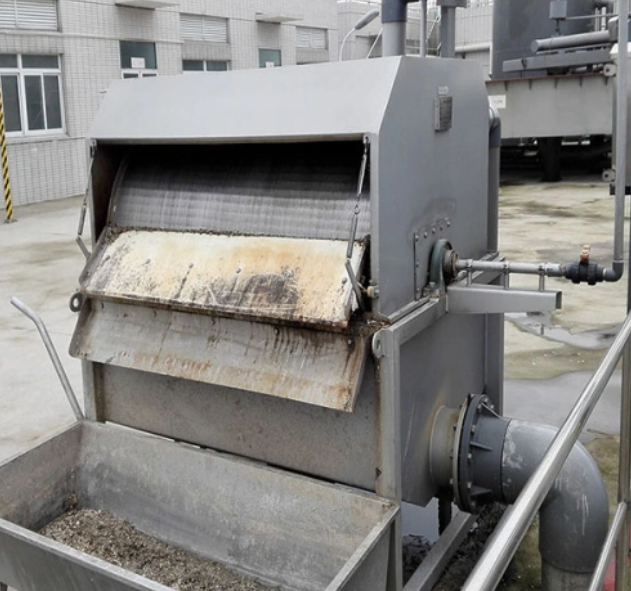

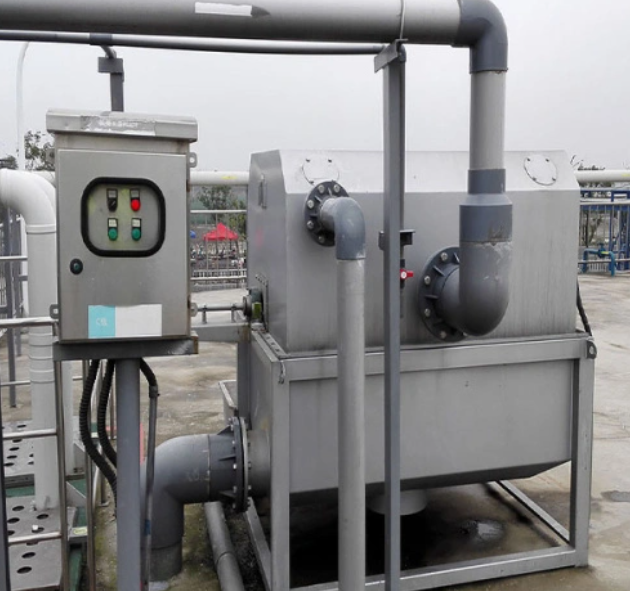

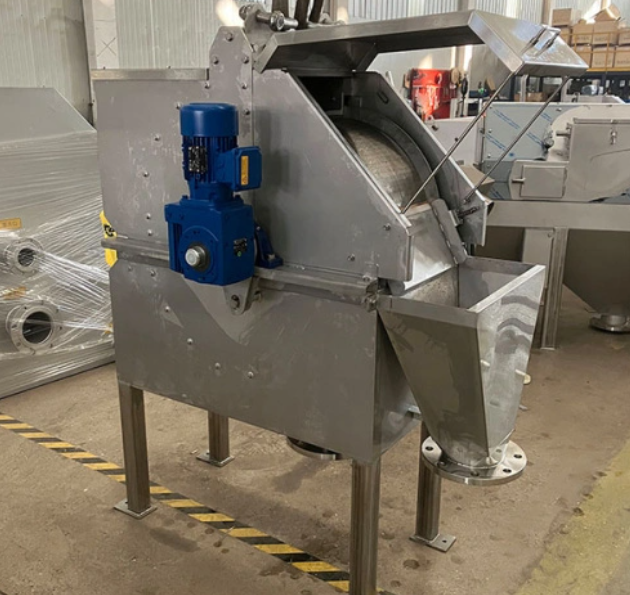

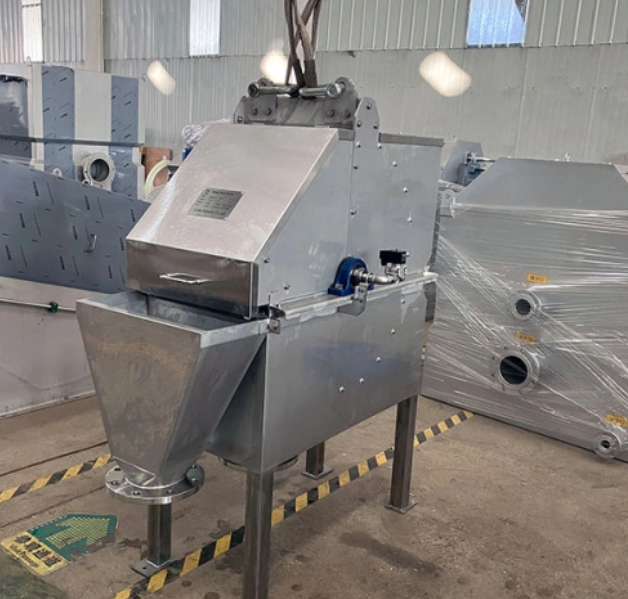

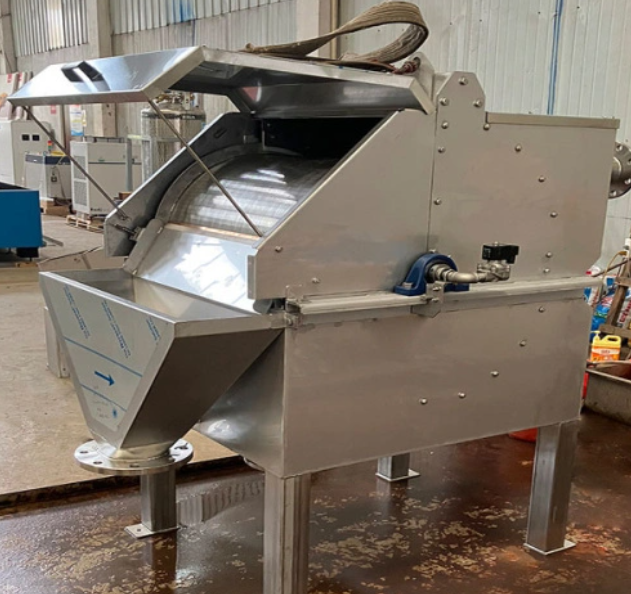

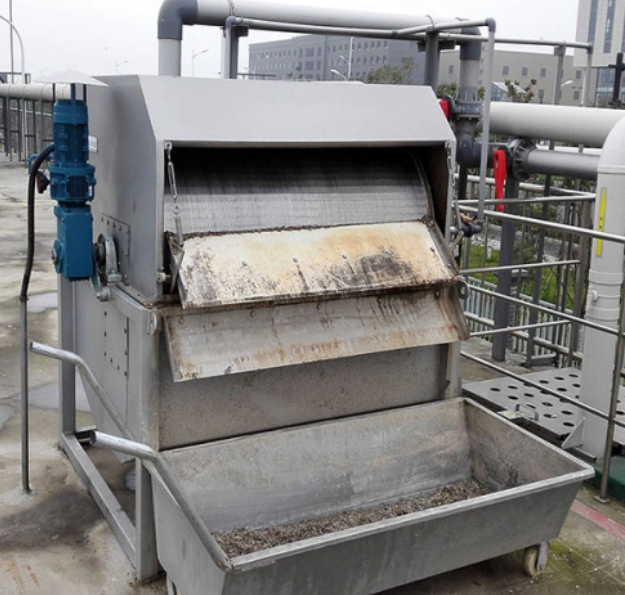

LODF Series External Flow Fine Micro Drum Filter

Concept

Our LODF Micro Drum Filter Is a Continuous And Effective Fine Screen For Removing Suspended Solids In The Water Under High Efficiency With Simple Structure , Higher Liability , Less Room Occupation Compared To Similar Ones From Other Competitors. We Have Various Grid Gap For Option

Machine Feature

-No Clogging by Adopting Wedge Bars As Filtering Element

-SS Material Wedge Bar is Suitable for High Temp. High Density Liquid Filtering

-Compact Drum Design Make Large Filtering Area and Little Consumption

-Automatic or Manual Control Back-washing

-Automatic Run and Slag Discharge Continuously

-Fully Enclosed Design to Prevent Secondary Pollution

-Overall SS Structure with Anti-Corrosion Performance

Drum Filter Feature

-SS304/SS316L Integrated Structure

-External Spray System

-Sealing Cover Plate

-4-20 rpm Speed Regulation Range

-Automatic Slag Blow

-Time Back Flush

Optional Choice

A.SS316L Integrated Structure

B.Liquid Level Switch

C.Backwash Solenoid Valve

D.Backwash Pump

E.Electric Control Cabinet

Applicant

-STP(Sewage Treatment Plant) Pretreatment

-Tap Water Disposal

-Industrial Waste Water Treatment

-Sea Water

-Aquaculture

-Agriculture

-Plumber

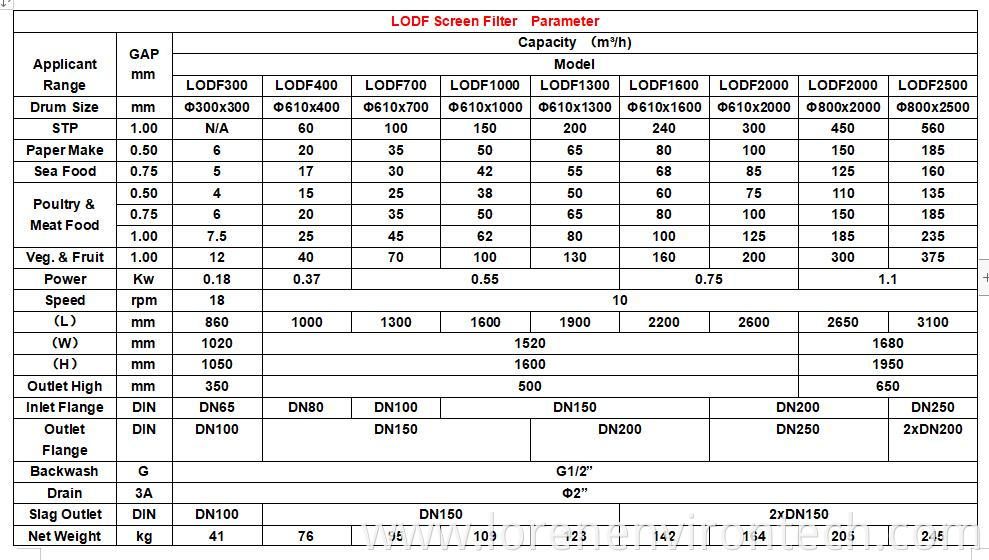

Model Selection Reference

Working Principle

When The Rotary Drum Screen Runs, The Sewage Or Other Raw Water Will Flow Into The Screen Inlet Tank Via Inlet Pipe Lifting By Pump. Through Eliminator(Or Water Distribution Pipe) , The Sewage Will Flow Into The Front Of Screw Screen And Pass Through The Screen Surface And Flow Into The Drum. Finally, The Sewage Will Flow Out At The Bottom Of The Drum. The Suspended Solids Will Be Left On The Drum Surface. With The Vibration Of The Drum Surface, The Suspended Solids Will Be Transported From One Side To Another Side And Will Be Discharged By The Discharging Mechanism.
