Step Mesh Plate Rotary Screen

Payment Type: T/T

Supply Ability: 80 Sets per month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LPS 800

Brand: Loren

Status: New

Applicable Industry: Hotels, Farms, Food &Amp; Beverage Shops, Restaurant, Garment Shops, Building Material Shops, Manufacturing Plant, Food Shop, Printing Shops, Machinery Repair Shops, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 3 Years

Core Components: Motor

Place Of Origin: China

Productivity: 7500l/Hour, 4000l/Hour, 3000l/Hour, 2000l/Hour, 1000l/Hour, 5000l/Hour, 50000l/Hour, 2500l/Hour, 10000l/Hour, 20000l/Hour

Mesh Hole: 0.5-10mm

Fine Solid Purification: Can be Use Nylon Model for replacement

Feature: Large Filtration Area

Merit: No Underwater Bearings,

Product Description

Perforated Rotatory Grille/ Perforated Mesh Screen

Definition

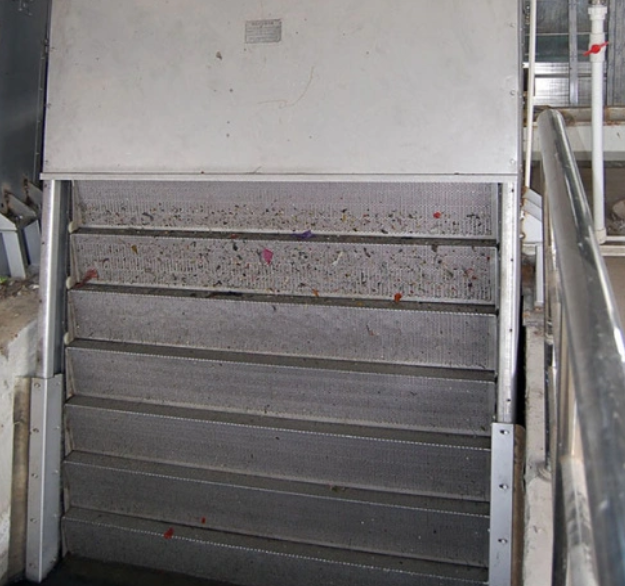

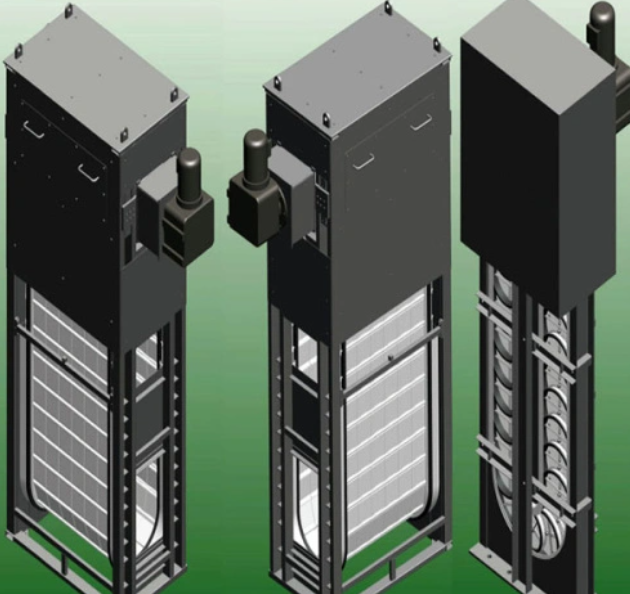

A Rotary Perforated Plate Grille is a Continuous Solid Liquid Separation Equipment for Waste Water Treatment , It Includes a Inclined Frame-Style Rack , a Stepped Rotary System Mounted On a Frame-Type Rack, a Brushing Device, a Flushing Device.The Stepped Slewing System Is Composed Of Lower Rack Reel, Reducer Installed Between Rack Upper Part And Main Shaft Sprocket ,And The Middle Chain Reel Device Which Is Composed Of Interconnected Bending-Formed Trapezoidal Parts.

The Rack Upper Also Configure Another Reducer Gathering With Rotatory Brush.

This Machine Have Solved The The Easy Clogging Problem During The Static And Swimming Grille Reel Interactive Operation,When The Stepped Perforated Reel Collecting The Dirt In The Water Under Rotation Movement, It Also Make Itself And Brush Remain Clean Status To Extend The Grille Life With Simple Structure, Clean Appearance.

Feature & Characteristic

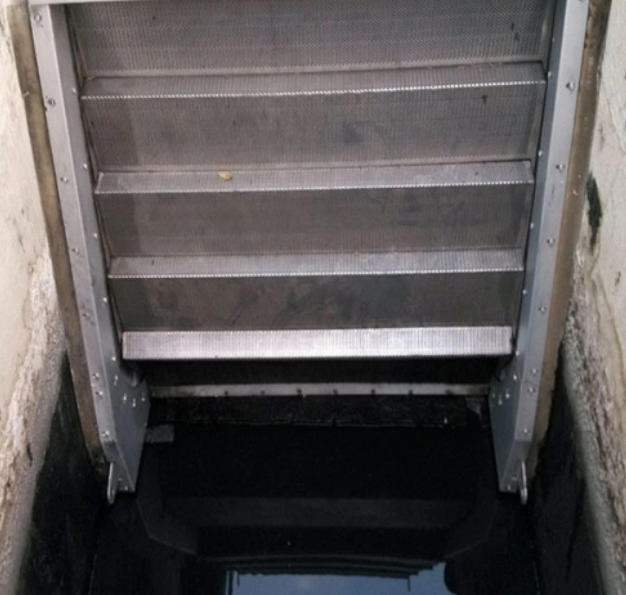

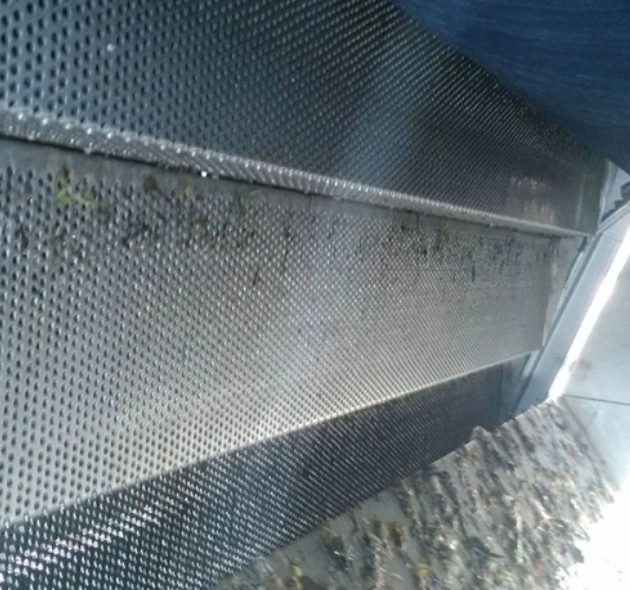

-Step Perforated Mesh Plate Design

-Heavy Duty Stainless Steel Drag Chain

-Adjustable Efficient Cleaning Brush Device

-No Underwater Bearings, Maintenance-Free

-Large Filtration Area to Stop Solid

-Dual Anti-Brush Device

-Lower 300mm Water Head Loss with Large Water Flow Volume

-2-6mm Perforated Plate Make Sure Large Solid Grain

-Easy Mounting no Need Change Civil Condition

-Grille Slag is Very Easy to Clean

-No Screen Slag Turn Over

-Effectively Remove Flat Solid, Fibers,Hairs,

-Easy Operation and Stable Running

-Full Auto Control

Applicant

-Updating of Sewage Treatment Plant

-Top Water Purification

-Power Plant

-Food

-Paper Mill

-Leather

-Textile

-Slaughter House

-Pharmacy

Specification

Model	Flow (M3/D)	Water depth (m)	Site Depth & Width (m)	Back Wash Water (L/Min)	Motor (kw)
LPS800	30000	1.2	1.7*1.6	174	0.75
LPS800	40000	1.5	2.0*1.6	174	1.1
LPS1200	60000	1.5	2.0*1.6	250	1.5
LPS1200	70000	1.8	2.3*1.6	250	.1.5
LPS1600	110000	2.0	2.5*2.3	328	2.2
LPS1600	130000	2.3	2.8*2.3	328	2.2
LPS1600	145000	2.5	3.0*2.3	328	2.2
LPS2000	170000	2.3	2.8*3.0	405	3.0
LPS2000	185000	2.5	3.0*3.0	405	3.0
LPS2400	222000	2.5	3.5*3.0	501	3.0
LPS2400	266000	3.0	3.0*4.0	501	3.0
LPS2800	310000	3.0	3.5*4.0	579	4.0
