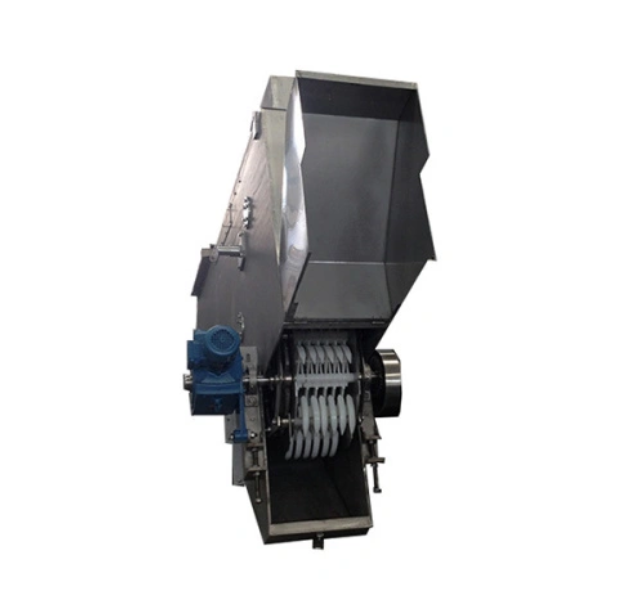

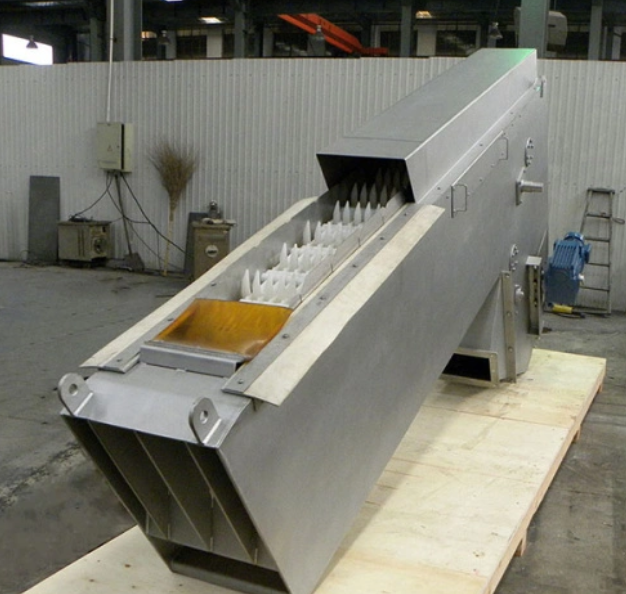

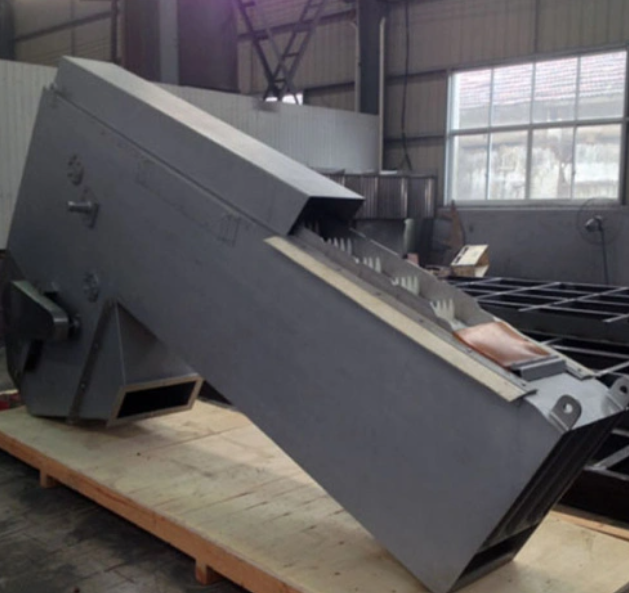

Nylon Rake Teeth Bar Screen

Payment Type: T/T

Supply Ability: 500 Sets Per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LRS 1500

Brand: Loren

Status: New

Applicable Industry: Hotels, Farms, Food &Amp; Beverage Shops, Restaurant, Garment Shops, Building Material Shops, Manufacturing Plant, Printing Shops, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Motor

Place Of Origin: China

Warranty Period: 1 Year

Productivity: 7500l/Hour

Anti-Corrosion Resistance: Nylon Rake Bath with SS Structure

Opening Gap: 1,1.5,2,..15mm Available

Large Treated Capacity: 2500 M3 per hour

Optional Choose: Cover , Heating Blanket etc

Rake Structure: Nylon or Steel or PVC

Adjustable: Openning Space

No: Clogging

Control Way: Fully Auto Working

OEM , ODM Service: Available

Applicant: Widely in Industrial or Mun

Product Description

Rotary Mechanical Grille Definition

LRS Series Rotary Rake Bar Mechanical Screen Is A General Advanced Continuous Auto Sundries Intercepting & Removing Grille for Water Solid Treatment, It is an Idea Solid Liquid Separation Machine

Mechanical Bar Screen Feature

-Higher Separation Efficiency

-Higher Auto Run Degree

-Little Load and Electricity Consumption

-Little Noise

-Overload Safety Protection

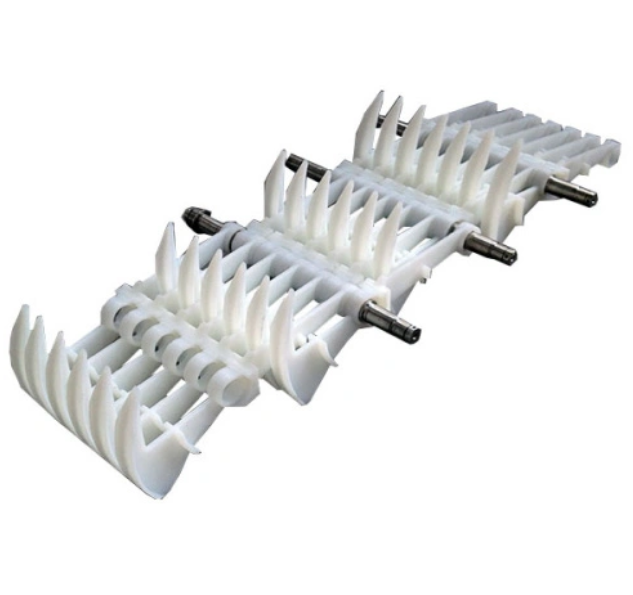

-Rake Teeth Material Can be Nylon or Steel

-Rake Opening Gap Can be Adjustable for Different Water Fluctuation

-Self Clean Performance with Little Clogging

Applicant of Rake Bar Screen

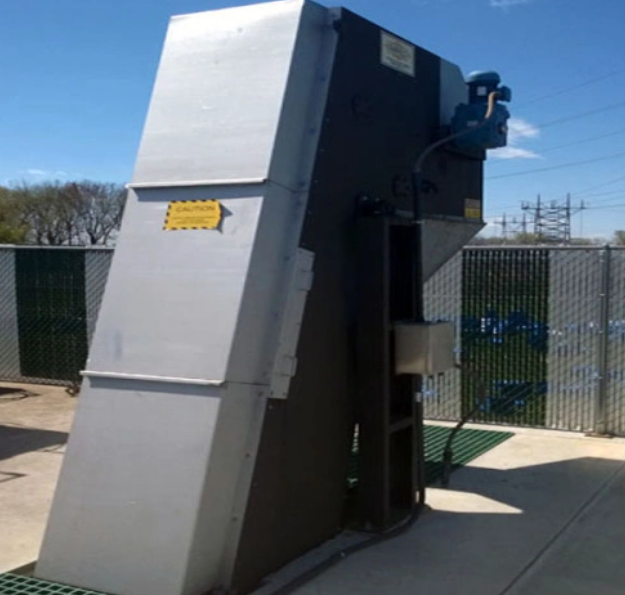

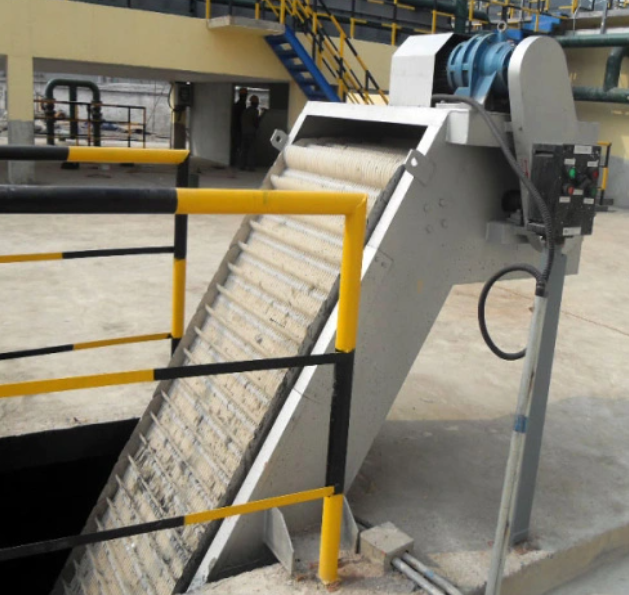

-Municipal Sewage Treatment

-Tap Waste Water (Waterworks )

-Electricity & Power Plant

-Textile

-Dyeing and Printing

-Food Processing

-Paper Mill

-Leather Processing

-Aquaculture

-Slaughtering House

-Tannery Industry

Specification

Model	Screen Width (mm)	Channel Width (mm)	Water Volume (M3)	Power (kw)	Rake Gap (mm)
LRS-300	300	400	150-460	0.37	1-15
LRS-400	400	500	170-540	0.37	1-15
LRS-500	500	600	240-750	0.55	1-15
LRS-600	600	700	308-960	0.55	1-15
LRS-700	700	800	360-1160	0.55	1-15
LRS-800	800	900	440-1420	0.75	1-15
LRS-900	900	1000	550-1580	0.55	1-15
LRS-1000	1000	1100	580-1830	0.55	1-15
LRS-1100	1100	1200	650-2080	1.10	1-15
LRS-1200	1200	1300	710-2250	1.10	1-15
LRS-1300	1300	1400	780-2310	1.50	1-15

Working Principle

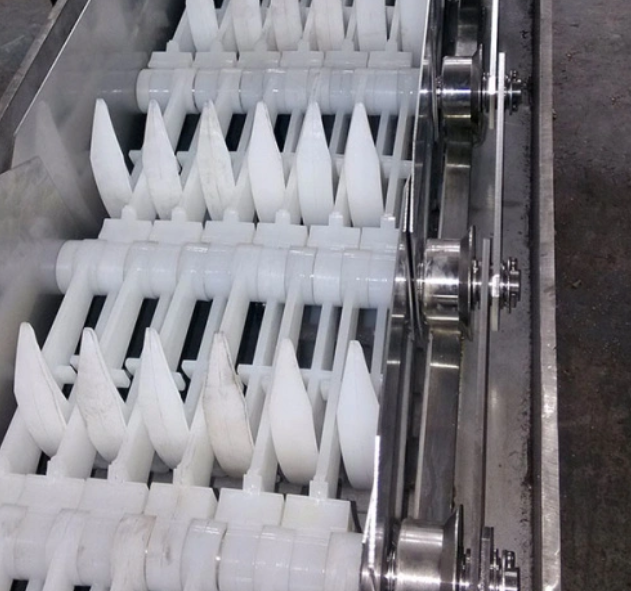

Groups of Rake Bar Run Counter Flow Direction Under Reducer Driving, When Reaching to Its Up, Each Rake Teeth Bar Group will Carry on Self-Cleaning Working Under the The Direction Of Sheave & Burr Wheel, Meanwhile Most Solid Materials Falls Down By Gravity. The Other Solids Attaching On The Rake Will be Tidy Out Under The Opposite Direction Of Sweeper. The Whole Circle Movement Can Be Continuous or Sequence as per Actual Requirement
