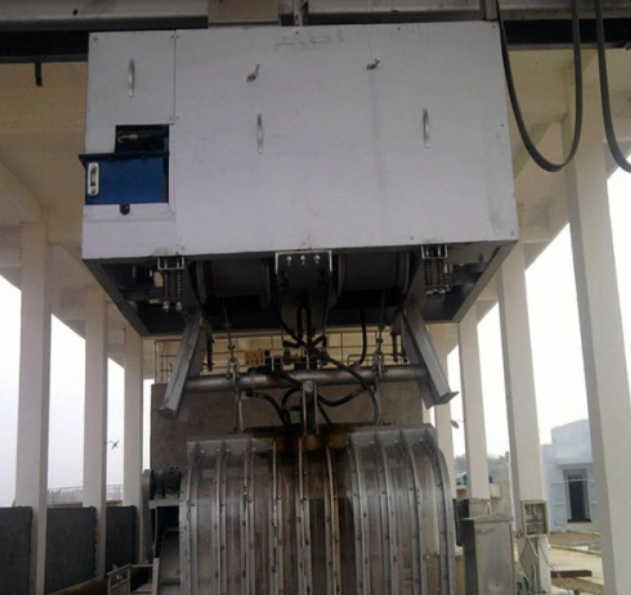

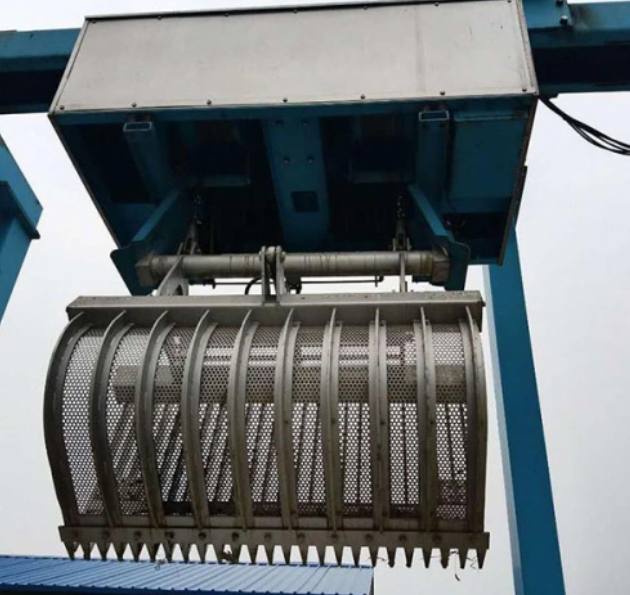

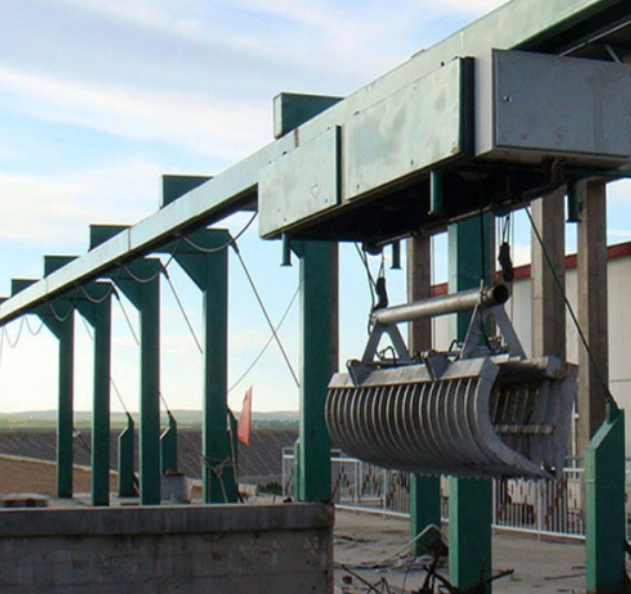

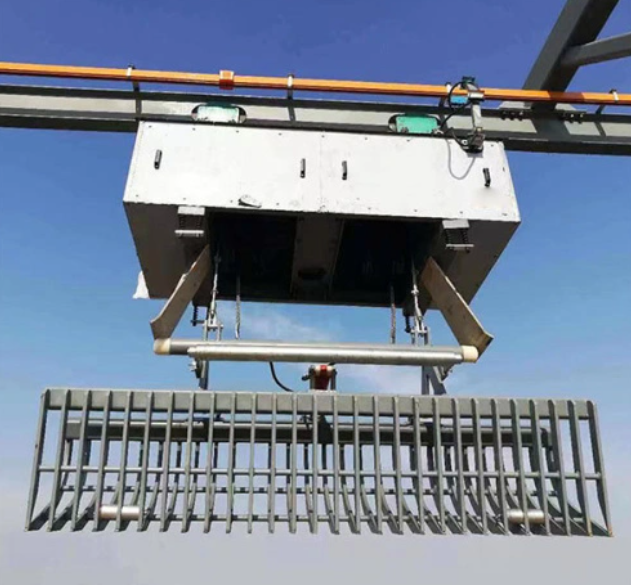

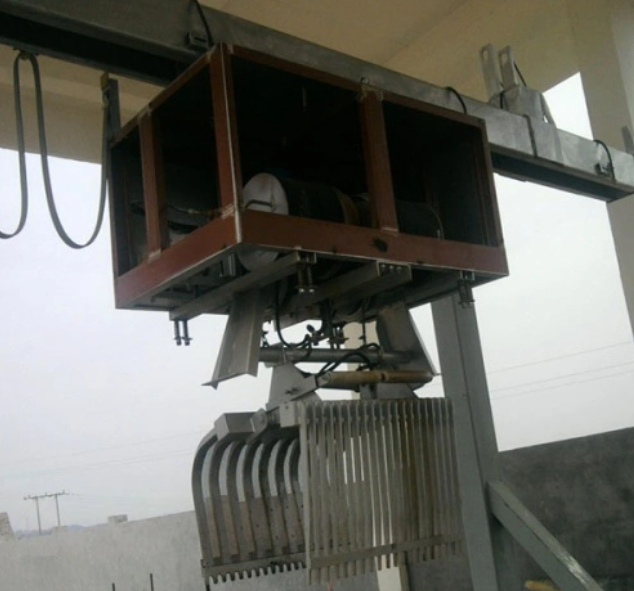

Suspended Mobile Hydraulic Grab Screen

Payment Type: T/T

Supply Ability: 120 sets Per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LGS 1000

Brand: Loren

Status: New

Applicable Industry: Garment Shops, Restaurant, Farms, Food &Amp; Beverage Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Motor

Place Of Origin: China

Warranty Period: 2 Years

Productivity: 1000l/Hour, 2000l/Hour, 5000l/Hour, 50000l/Hour, 2500l/Hour, 10000l/Hour, 500l/Hour, 100l/Hour, 750l/Hour, 20000l/Hour, 250l/Hour, 125l/Hour, 3000l/Hour, 4000l/Hour, 200l/Hour, 7500l/Hour

Used For: Grab Large Solid Upper Than DN40MM

Working Way: Orbit or Hydraulic Staton

Mounting: Freely

Save: Construction Cost

Type: Open and Closed Grabe Hopper

Merit: Strong Adjustable for replace other ones

OEM ODM Service: Provided

No: Secondary Polution, Deb

Product Description

Grab Mechanical Grille

Definition of Grab Type Grill Cleaning Machine

LGS Series Movable Hydraulic Mechanical Screen Is A Idea Advanced Continuous Auto Cleaning of large Suspends Materials Sundries In Water Such as Trees, Weeds, Trash, Fibers,Rubber Products,Plastics and Oil Barrels etc. It is Composed of Suspend Orbit System , Movable trolley and Grab Rakes Device

Feature of Movable Grab Screen

-Large Treated Capacity

-Multiply Sundries Can Be Intercepted and Grabbed Out

-Special Fit for Multiple Channel or Wider Channel Slag Cleaning

-Open Structure Fit for All Grille and Far Distance Discharge Area

-No Need 2^nd Disposal

-Realize the Overall Clean from Upper and Down

-Grab Rake Can Penetrate Screen to Remove Hairy Dirt Surroundings

- Little Fault Due to No Soaking Parts

-Overload Safety Protection

-Easy Mounting to Save Construction Charge

--Self Clean Performance by Timer and Liquid Level Difference

-with No Clogging and No Debris Drop Phenomenon

-One Set can Replace Many Other Mechanical Screens

Applicant for Medium& Large Buildings of Hydraulic Mobile Grab For Cleaning Dirt In Hydropower Station

-Water Supply And Drainage Works,

-Flood Control Pumping Station

--Slag Discharge Pumping Station

-Sewage & Rainwater Slag Discharge Pumping Station

-Thermal Power Plant

-Hydro-power Plant

-Sewage Treatment Plant

-Concentrated Irrigation Station

Specification of Suspended Mobile Hydraulic Grab Screen

Model	Channel Width (mm)	Channel Depth(m)	Lift Power (kw)	Move Power (kw)	Rake Gap (mm)
LGS-1000	1000	≤10	1.10	0.55	40-100
LGS-1500	1500	≤10	1.50	0.75	40-100
LGS-2000	2000	≤10	2.20	0.75	40-100
LGS-2500	2500	≤10	2.20	1.10	40-100
LGS-3000	3000	≤10	3.00	1.10	40-100

Working Principle

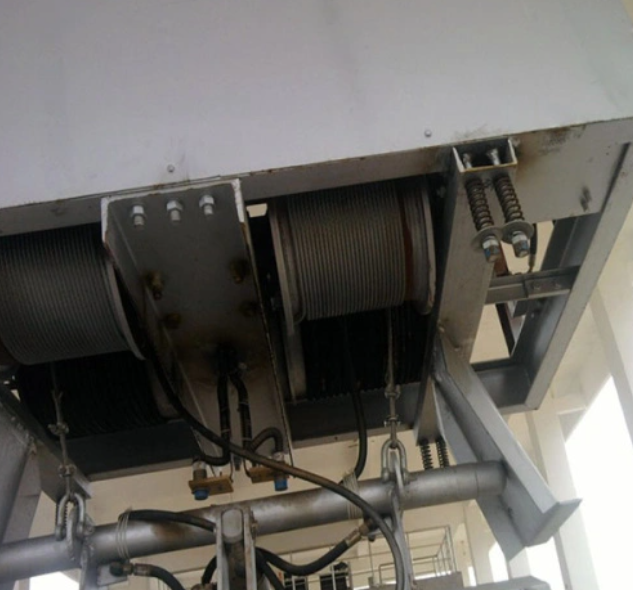

The Grab-Type Grid Cleaning Machine Is Composed Of Six Parts: The Fixed Grid Group Of The Water Inlet Channel, The Elevated Monorail System, The Grab Trolley (Or Rail Trolley) Driving System, The Grab Lifting System, The Hydraulic Control System, And The Electrical Control System. When Working, The Grab Bucket Fixed By The Wire Rope Is Driven By The Driving Device To Pick Up The Dirt Trapped In The Underwater Grille, And The Garbage Is Unloaded Into The Garbage Trolley To Prevent The Pump And Pipeline From Being Worn Or Blocked, So As To Facilitate The Smooth Progress Of The Follow-Up Process .
