Security Filter for Water treatment

Payment Type: T/T

Supply Ability: 100 sets per month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LBF-219

Brand: Loren

Applicable Industry: Food &Amp; Beverage Factory, Energy &Amp; Mining, Machinery Repair Shops, Manufacturing Plant, Building Material Shops, Garment Shops, Food &Amp; Beverage Shops, Farms, Hotels

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Pressure Vessel, Bearing

Old And New: New

Place Of Origin: China

Warranty Period: 1 Year

Service System: Online Support

Bag Accuracy Diversified: as per site grain diameter

Side Leakage: Little Chance

Large Capacity: with small room

Lower Energy Consumption: to reduce running cost

Bags Can Be Reused For: Many times after flushing

Mounting Flexible: Adjustable legs

Can Work: in groups

Essential Function: Filtration Under 1µm Suspend Solid

Material: As per demand

OEM ODM Service: Available

Product Description

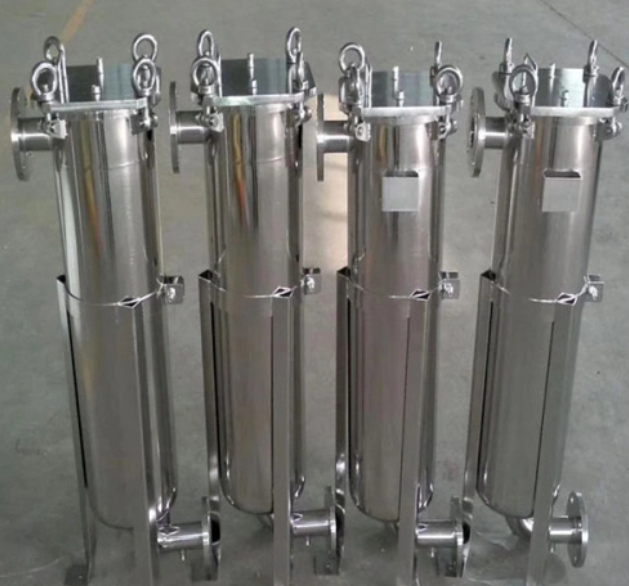

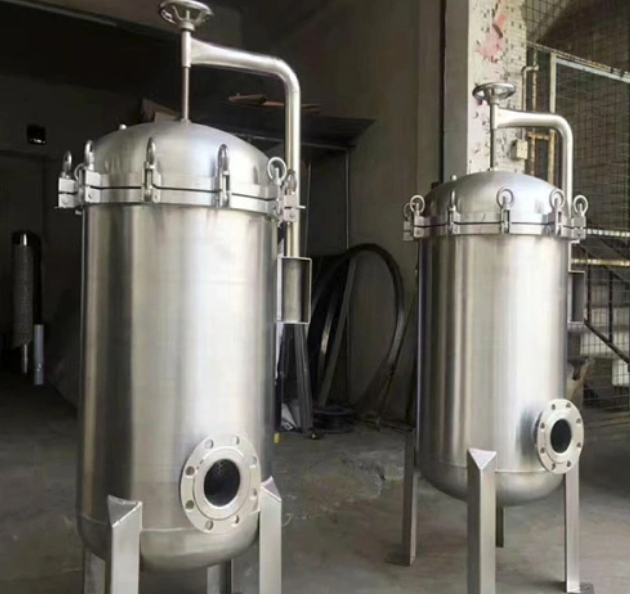

LBF Series Bag Filter

Vertical Straight-Through Decontamination Device Definition

Basket Filter Is a New & Widely Applied Multiple Functional Filter With Compact Room , Easy Operation , Energy Saving And Enclosed Running Condition.

Applicant Range Under Condition:TSS<100PPM & Accuracy:1-1000µm

-Paint

-Beer

-Vegetable Oil

-Medicine

-Chemical

-Petroleum Product

-Textile Chemical

-Photosensitive Chemical

-Electroplating Solution

-Milk

-Mineral Water

-Hot Solvent

-Latex

-Industrial Water

-Sugar Water

-Resin

-Ink

-Industrial Wastewater

-Fruit Juice

-Edible Oil

-Wax etc

Security Filter Feature & Merit

- Little Side Leakage Chance for Filter Bag

-Bag Can Bear Higher Pressure with Little Pressure

-Filter Accuracy Improved Gradually Up to 0.5µm

-With Large Treated Capacity and Small Volume

-Easy to Change Bag and Clean Dirty Bag

-Cleaned Bag Can Be Reused Repeatedly to Save Cost

-Multiply & Flexible Application and Mounting Ways.

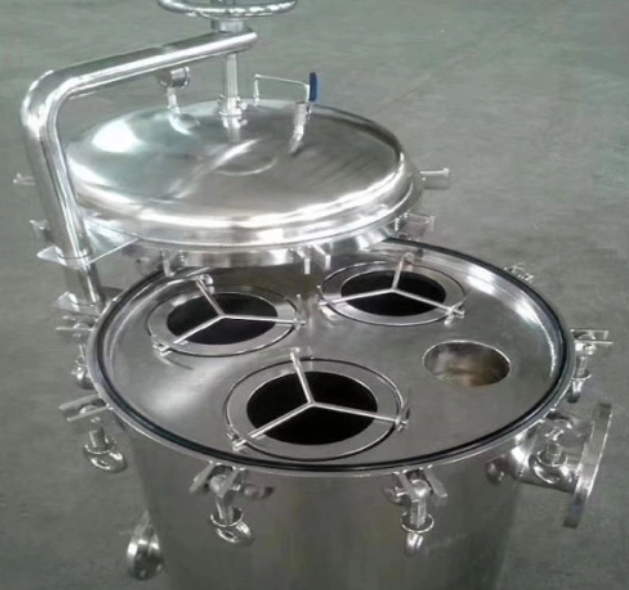

-Turnover Cover Design With No Liquid Residence On Top

-Dual O-Shape Sealing Rings To Make No Bypass Leakage

-Adjustable Legs Can Fit For Different Height Mounting Condition

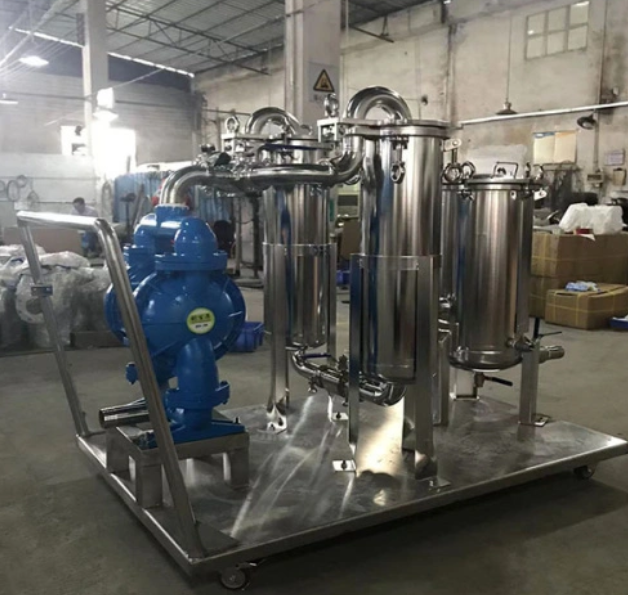

-Can Integrated Several Sets together as a group unit

-Material optional choice of A3, SS304/316, Duplex Steel 2205/2507

Suitable Filtering Material

-Weakly Corrosive Materials in Petrochemical Production

A. Water

B. Nitrogen

C. Oil Product

D. Hydrocarbons

-Corrosive Materials For Chemical Production

A. Caustic Soda

B. Soda Ash

C. Concentrated Dilute Sulfuric Acid

D. Carbonic Acid

E. Acetic Acid,

F. Ester Acid

-Low Temperature Materials In Refrigeration

A. Liquid Methane

B. Liquid Ammonia

C. Liquid Oxygen

D. Various Refrigerants

-Materials For Hygienic Requirements In Light Industry and Pharmacy

A. Beer

B. Beverage

C. Dairy Products

D. Grain Slurry

E. Medical Supplies Etc.

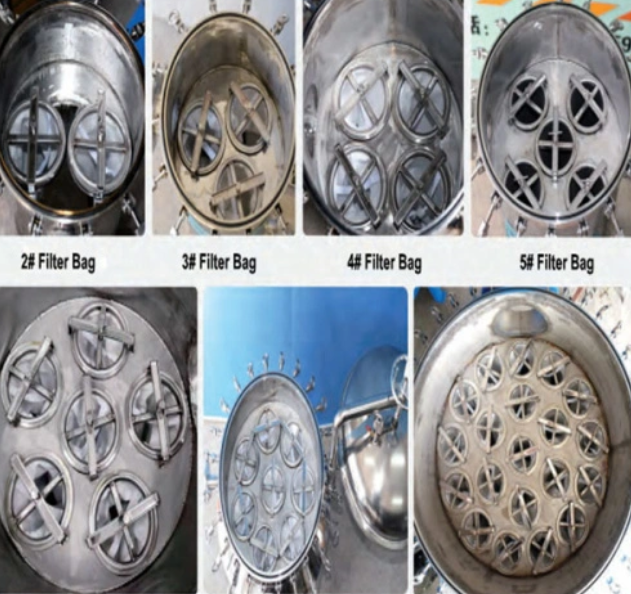

Bag Filter Parameter Data & Model Selection

Model	Cylinder DN (MM)	Flow (M3/h)	Filter Area (M2)	Work Pressure	Accuracy (µm)	In & Out Flange
LBF-10	133	10	0.25	0-1.6 MPa	1-840	38mm
LBF-18	219	18	0.25			DN40
LBF-36	219	36	0.50			DN40/65
LBF-72	400	72	1.0			DN80/100
LBF-108	450	108	1.5			DN100/150
LBF-144	500	144	2.0			DN100/150
LBF-216	650	216	3.0			DN150/200
LBF-288	700	288	4.0			DN150/200
LBF-432	900	432	6.0			DN200/250
LBF-720	1100	720	10.0			DN250/300

Function Requirement

- Must Set a Air Drainage Valve On its Top Cover with Inspection hole

-Design Pressure≥1.5 times Working Pressure

-Test Pressure≥1.5 times Design Pressure for 30 Minutes keeping

- Total Holes Area ≥2.0 times Pipe Cross-Sectional Area

-Working Temperature:-80℃—+450℃

-Nominated Diameter: DN15-DN600

-Nominated Pressure:PN1.0—5.0Mpa

-Sealing Material: PTFE, Nitrile Rubber, Oil-Resistant Asbestos Glue

Design Criteria

-"Code for Design of Sports Buildings" JGJ31-2003 JGJ265-2003

-"Code for Water Supply and Drainage Design of Swimming Pools and Aquatic Amusement Pools" CECS14: 2002

-"Code for Design of Building Water Supply and Drainage" GB50015-2003

-04S107 "Swimming Pool Accessories Installation And Equipment Selection"

Maintenance

-Especially Protect its filtrate or core (SS Mesh &Frame)

-Regularly Clean the Debris in The core after a period Running

-During Tiding Core, Pay More Attention to The Mesh no Deforming or Damage, Otherwise , Can Not Get Good Filtration Results Thus To Damage Compressor, Pumps And Instruments.

-Change the damage Stainless Steel Mesh if Deformed Or Damaged
