Swimming Pool Sand Filtration Machine

Payment Type: T/T

Supply Ability: 100 sets per month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LSSF-5

Brand: Loren

Applicable Industry: Building Material Shops, Food &Amp; Beverage Shops, Farms, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Factory

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Pressure Vessel

Old And New: New

Place Of Origin: China

Warranty Period: 1 Year

Service System: Online Support

Packing: Activated Sand or Quartz Sand

Mounting Way: Outdoor

Filter Media: Circulated Water

Flow Speed: 35-45m/h

Working Pressure: 0.2-0.5 MPa

Output Water Quality: SS≤5mg/L

Media Layer Height: 400 mm

Quartz Sand Grain: 1-2 mm

Running Way: Auto running and cleaning

Working Temperature: ≤55℃

Product Description

Maintenance-free LSSF-5 Shallow Activated Sand Filter

Feature and Performance of our Automated mechanical filter Helps Water Purifier Performance

- Compact Structure With Small Volume And Footprint

- Flexible Mounting（Horizontal Or Vertical， Indoor Or Outdoor ）to Save Room.

- With Good Corrosion-Proof Performance and Long Life.

- With large filter volume: can be boosted from 30m3/h into 2500 m3/h

- With Large Filter Speed : 40-60m/h As Per Water Quality.

- With Impurities Removal Below 0.10mm / Output Turbidity Below 0.5NTU.

- Automatic Intelligent Backwash for 2-3min under flow lower 3m3 without pump

- Constant Water Supply

- Special Water Distribution Makes Whole System As Layer Flow And Stable Running.

- Select Refined Quartz Sand Or Garnet Select,Min Media Diameter Can Be 0.16mm

- Lower long term run cost and Maintenance Charge

Media And Volume

LSSF Series Shallow Sand Filter Can Use Ordinary Various Media But Mainly Based On Quartz Sand, We Recommend 2 Kinds Of Quartz Sand Below

Bottom Sand

Cover the Catchment

Upper Sand

（400mm Thickness）

Recommend Volume

Backwash Volume

1.0-2.0 mm

40-50 m3/h

35-55 m3/h

1.0-2.0 mm

0.5-1.0 mm

15-25 m3/h

25-40 m3/h

Ordinary Quartz Sand Filter System Parameter

SN.	Type	Dimension (m)	Filter Area	Coarse volume T/H	Fine Volume T/H	Sand Weigh kgs
1	LSSF-1	1.22 x 1.22 x 2	1.13	40-50	15-25	860
2	LSSF-2	2.64 x 1.22 x 2	2.26	80-100	30-50	1720
3	LSSF-3	3.96 x 1.22 x 2	3.39	120-150	45-75	2580
4	LSSF-4	5.28 x 1.22 x 2	4.52	160-200	60-100	3440
5	LSSF-5	6.95 x 1.22 x 2	5.65	200-250	75-125	4300
6	LSSF-6	8.32 x 1.22 x 2	6.78	240-300	90-150	5160

Comment:for those more large flow volume , we can use more filter unit by connecting with different tube , valve with standard DIN joints.

Technique Condition

Fluid Media	Water	Material	Casted Iron Or Plastic
Max. Temp.	<70℃	DN range	DN20-DN600
Pressure	PN16	Joint way	Bolt, Flange or others
Start pressure	>0.07MPa	Life time	10/15 year for PVC/Metal

Applicant of The Filter

1. Industrial Water Filter

A. Steel Factory Oxygen Lance Water Filtration

B. Feeding Water for Clogging of Boiler and Heat Exchanger Pipeline filtering

2. Industrial Circulated Water Filtering System.

3. Raw(surface, Lake, Sea, Well Waterworks) Water Disposal-- Remove Grain, Sand , SS, Algae And Organics

4.Agricultural Irrigation—such as Farmland Irrigation, Park And Golf Course Turf Irrigation

5. Industrial Waste Water Treatment

6. Aquaculture, Swimming And Water Park Industry.

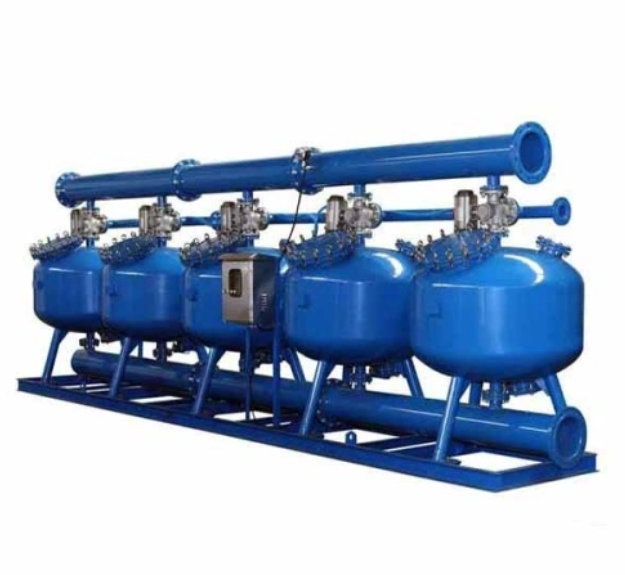

LSSF-5 Shallow Sand Filter Whole System Composition Parts

SN	Item	Specification	Quantity	Unit
1 body	Low layer sand filter	LSSF-5	2	sets
2 part	Cylinder shell	Φ1200×1900mm	5	pcs
	Water distributor	Mushroom shape	5	sets
	Quartz sand	1.0-2.0mm	6.5	Tons
	Two-ways valve	DN100	5	pcs
	Entry pipeline	DN200	1	sets
	Discharge pipe	DN100	1	sets
	Auto air discharge valve	DN25	1	pc
	Pressure switch		1	pc
	Input and output Manual valve	DN200	2	pcs
	Discharge Manual valve	DN100	1	pc
	Skid	6950×1220mm	1	pc
	Control panel		1	pc
