Multiple Functional Quartz Sand Filter

Payment Type: T/T

Supply Ability: 50 Sets Per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LVF-3000

Brand: Loren

Place Of Origin: China

Suspend Solid Removal Ratio: Over 90%

Outlet Water Turbidity: Lower Than 3 mg/L

Running Pressure: 0.25MPa～0.6MPa

Running Temperature: 5°～40°

Backwashing Intensity: 8～15L/m²•s

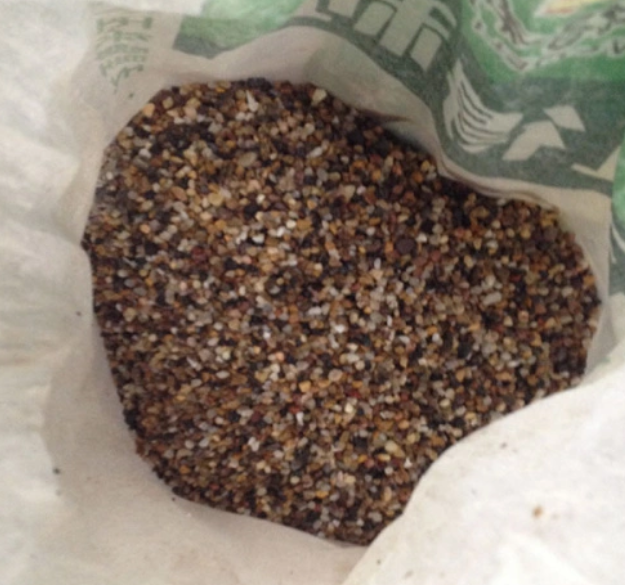

Packing: Quartz Sand or Mixed

Integrated With: Water Tank or Pipeline if needed

Can Be Combined: In Group with same base

OEM ODM Service: Available

Life: Long time

Product Description

LQF Series Mechanical Filter

Brief introduction

LQF Series Quartz Sand Filter Is a high efficiency Water Purifier of Suspended matter, organic matter, colloidal particles, microorganisms, chlorine, smell and some heavy metal ions in the Waste Water Thus to Reduce the Turbidity .

Feature and Characteristic

-Compact and Simple Structure Design

-Excellent Coagulation Performance

-Large Purified Capacity

-High Speed Filtration

-Continuously Auto Back Washing with no Stopping Machine

-Small Footprint

-Easy Operation and Running

-High Accuracy of Filtration

-Not Easy to Happen Fault

-Lower Investment

-TSS Removal Ratio over 90%

-Can Realized Multiple Sets Auto Controlled Integration

-Long Working Life

Applicant

-Pure Water Preliminary Treatment

-Soften Water Treatment

-Preliminary Treatment for EDI Or RO Plant Water

-Underground or Blackish Water Treatment

- Food and Beverage Waste Water Treatment

-Electronic or Mineral Waste Water Treatment

-Textile or Dyeing and Printing Waste Water Treatment

-Paper Making Waste Water Treatment

-Chemistry Waste Water Treatment

-Intermediate Waste Water Recycling Used

-Swimming Pool Recycled Water Treatment

- Metallurgy or E-Plating Waste Water Treatment

-Pharmacy Waste Water Treatment

-Mining Waste Water Treatment

-Municipal and Sewage Treatment Plant

Parameter and Model Selection

Model	Capacity (M3/H)	Filter Speech (M/H)	Tank Size (LWH) M	Quartz Sand Volume (kg)
LQF-800	5	8-12	￠800*1950	900
LQF-1000	7.5	8-12	￠1000*2050	1400
LQF-1200	11	8-12	￠1200*2150	2000
LQF-1500	18	8-12	￠1500*2300	3180
LQF-1600	20	8-12	￠1600*2350	3620
LQF-1800	25	8-12	￠1800*2450	4580
LQF-2000	30	8-12	￠2000*2550	5650
LQF-2200	38	8-12	￠2200*2650	6840
LQF-2400	45	8-12	￠2400*2750	8140
LQF-2600	55	8-12	￠2600*2800	9550
LQF-3000	70	8-12	￠3000*2800	12710
