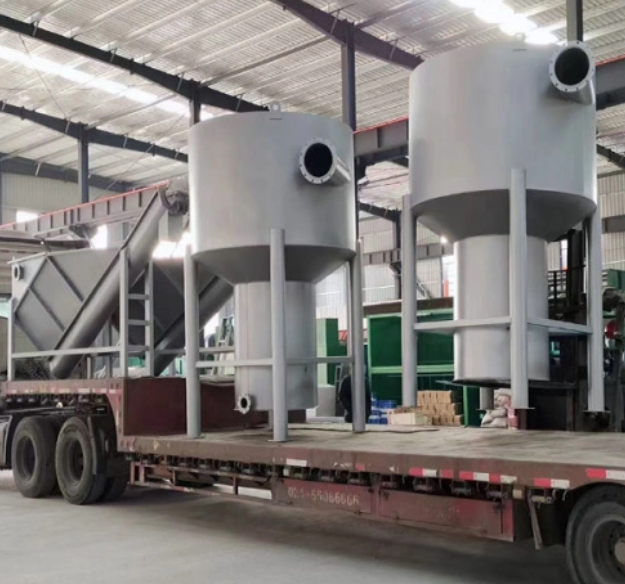

Definition of Hydrocyclone Sand Water Separator
It Is Mainly Used In The Swirling Grit Settling Pond Of The Urban Sewage Treatment Plant. This Equipment Uses Hydraulic Swirling To Effectively Separate the Mud Grit And Organic Matter. It Is Ideal Grit Removal Equipment.
Feature of Vortex Grit Chamber System
-The Grit Removal Effect Is Little Affected By Changes In Water Volume.
- Compact Structure with Small Room and Little Investment
-Easy Operation and Maintenance
-Long Service Life:
-Two Optional Boosting Way: Air Lift Effect Is Relatively Good;
While Pump Lift Cost Is Relatively Low;
-Particle Removal Rate Above 0.2mm is Greater Than 85%;
-Flow Below 1080m / h, the Grit Chamber Adopts Steel Structure
-Flow Over 1080m / h, the Grit Chamber Adopts RCC Structure
-Automatically PLC Control the Grit Washing and Grit Discharging Cycle to Make Sure Its Safe and Reliable Operation
- Particle Removal Rate Above 0.2mm is Greater Than 85%;
- It Can Be Run Both Locally And Remotely As Per Requirement.
-Can be Run In Groups
-It Can Be Run Both Locally And Remotely As Per Requirement.

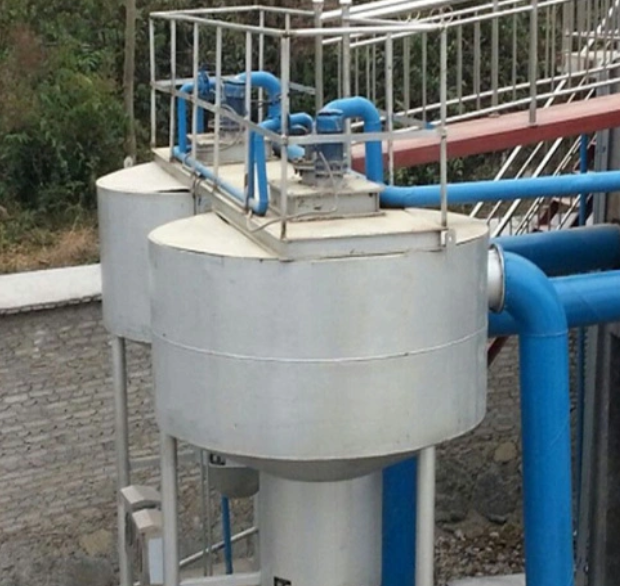

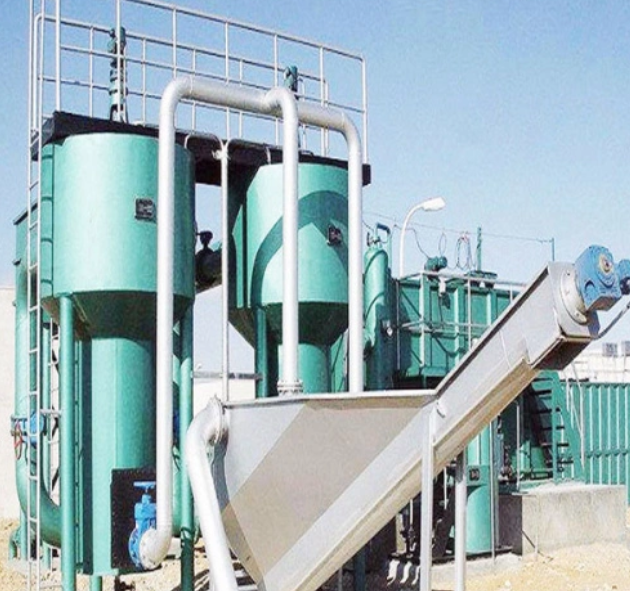

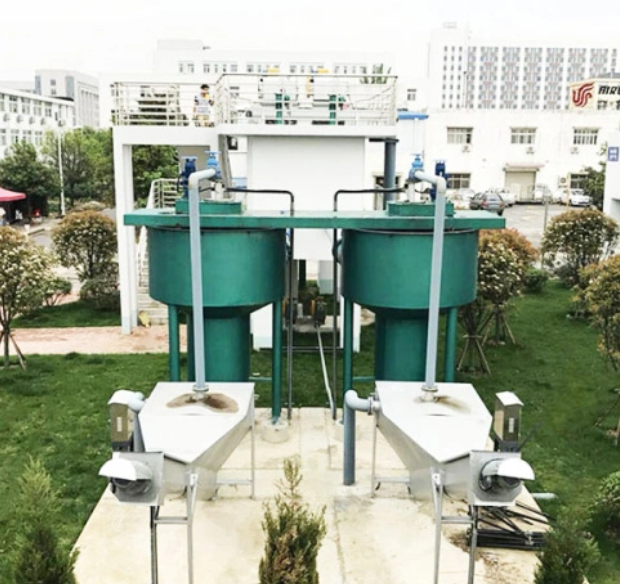

Applicant of Swirling Flow Grit Chamber Removal System
-Urban Hotel or Restaurant
-Water Source Hot Pump
-Water Treatment Field
-Food Processing
-Pharmacy
-River Water
-Well or Blackish Water
-Coal Washing Water
-Industrial Mineral Processing,
-Solid-Liquid Separation
-Liquid Outgassing
Model Selection and Parameter Data Sheet of Hydrocyclone Vortex Grit Settler
Model | Capacity (M3/h) | Pool DN (mm) | Power (KW) | Blower Volume (M3/h) | Mounting Size (L*W*H) MM |
LGR180 | 180 | 1830 | 2.25 | 85.8 | 1100*1400*300 |
LGR360 | 360 | 2130 | 2.95 | 107.5 | 1100*1400*300 |
LGR720 | 720 | 2430 | 2.95 | 105 | 1150*1550*400 |
LGR1080 | 1080 | 3050 | 3.75 | 105 | 1350*1550*450 |
LGR1980 | 1980 | 3650 | 4.5 | 122 | 1450*1700*585 |
LGR3170 | 3170 | 4870 | 4.5 | 120 | 1850*2200*600 |
LGR4750 | 4750 | 5480 | 5.5 | 120 | 1850*2200*630 |
LGR6300 | 6300 | 5800 | 5.5 | 120 | 1960*2500*700 |
LGR7200 | 7200 | 6100 | 5.5 | 120 | 1950*2500*750 |
Comment:
-Hydraulic Surface Load: 200M3/M2.H
-Hydraulic Retaining Time ( HRT) :20-30 Second
-Peak Flow Value HRT:35 Seconds
-Feeding Speed V: 0.15-0.90m/s under design Ratio (40-100%)
-Inlet and Outlet Channel clip Angle no less than 270 degree
-Design Surface Hydraulic Load： 150M3(m2.h) / 150-200 Range
-Effective Water Depth: 1-2 meters
-Pool Diameter/Depth:2-2.5
-Pool Center Set upright Impeller Separator
-Sludge Grit Settlement Volume Can be Calculated as 0.003L /M3

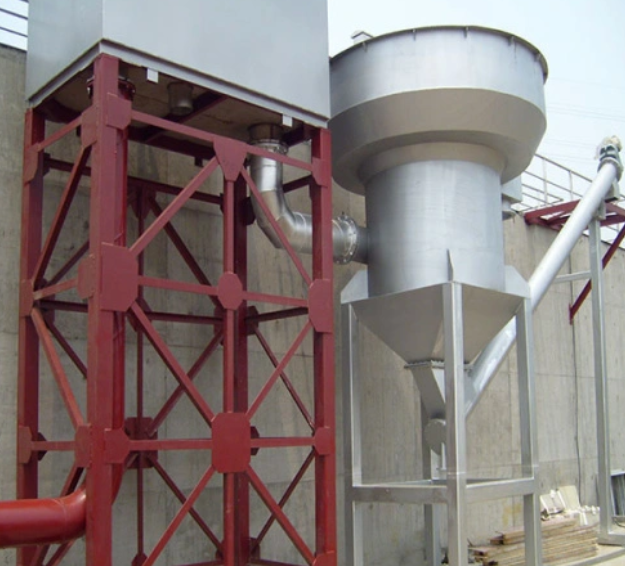

Structure and Working Principle of LGR Series Swirling Flow Grit Chamber Removal System
The Swirling Grit Removal Pool adopts a cone-bottomed round pond with an Impeller Separator Installed in the Pond. After the sewage flows from the pond tangentially, it rotates 270 degree (clockwise as viewed from the top) and the sewage is discharged from the drainage channel by utilizing a certain flow rate of incoming water as power. It will make tangential movement along the inner wall of the circular Grit pool to form a swirling flow. At the same time, the liquid swirling and axial vortices are stirred by the paddles, thereby accelerating the sedimentation of the Grit particles in the sewage and effectively separating the organic matter from the Grit particles.
The smaller the central water flow section is, the faster the water flow speeds is, and the bottom water flow speed is increasing in the center. Move the Grit on the bottom of the pond to the central Grit bucket in a spiral trajectory. Organic matter rises in the center of the pond and the organic matter will be discharged together with the water flow. The bottom settling Grit is boosted by a lifting device, and then enters into the grit separator for Grit-water separation, while the sewage returns to the Grid or Screen well.
