LFF Series Efficient Fiber Ball Filter

Payment Type: T/T

Supply Ability: 150 Sets Per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LFF-8

Brand: Loren

Applicable Industry: Hotels, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Construction Works, Restaurant, Food &Amp; Beverage Shops, Farms

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Pressure Vessel

Old And New: New

Place Of Origin: China

Warranty Period: 1 Year

Service System: Online Support

Essential Function: Purifying Water Quality

Filtering Speed: 20～50m/h

Maximum Operation Pressure: ＜0.6MPa

Finish Water Lost: 3～10m

Washing Intensity: 3m³/min.m² (by air), 0.6m³/min.m² (by water)

Washing Time: 10～20 min

Backwash Strength: 10-12L/m2.s

After Sale Service: Witin 8 Hours response and solution

OEM ODM Service: Available Anytime

Product Description

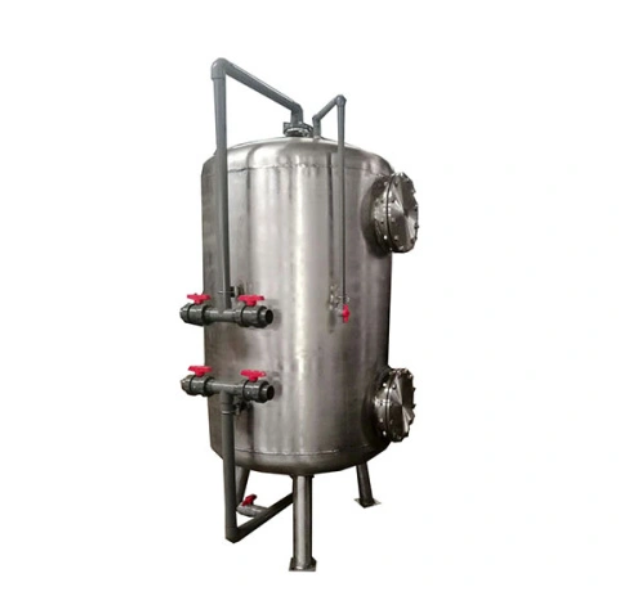

LFF Series Efficient Fiber Ball Filter

Brief Introduction of Automated mechanical filter Helps Water Purifier Performance
Filtering is the most efficient method for removing suspend solid in the water, filter is the indispensable step during higher output water process craft, our LFF series non-toxic and efficient fiber ball filters are widely applied in living and a variety of high standard industrial water treatment system , it can be also applied in deep treatment of recycled sewage for circulated usage.

Main Parameter
-Filtering Speed:20～50m/h
-Maximum Operation Pressure:＜0.6MPa
-Finish Water lost:3～10m
-Washing intensity:3m³/min.m² (by air)
-0.6m³/min.m² (by water)
-Washing time:10～20 min

-Backwash Strength:10-12L/m2.s

Feature and Performance

-Simple Structure With Easy Operation

-Over 90% High TSS includes Bacteria, Virus, Macro-molecular Organic Matter

-3-5 times higher Filtering Speed than traditional one , can reach 50m/h

-2-4 Times Sewage Interception Capacity Compared To Traditional One

-1/5-1/3 Room of Traditional Filter to save cost

-1/2-12/3 Ton Water Production Cost compared to that of Traditional Filter

-1-3% of Produced Fresh Water Consumption for Backwash

-No need change filter Media by auto flushing

Applicant

- Industrial Water Feeding System

- Circulating Cooling Water Side Filter

- Heating Network With Water Filtration

- High Purity Water Preparation

- Industrial Sewage Advanced Treatment System

- Removal of Iron And Manganese From Groundwater

- Drinking water

- Bath Water Circulation Treatment etc

Fiber Ball Packing Data

Fiber/Ball DN

(μm/mm)

Fiber

Length

(mm)

Void Ratio

Specific Surface Area

(m2/m3)

Filtration Rate (m/h)

Mud Hold

(kg/m3)

Packing Density

(kg/m3)

20-50/30-60

15-20

96%

300

20-85

50-80

Fiber Bundle Mechanical Filter Parameter

Model	Flow Volume M3/H	Dimension DN*H (mm)	Filter Layer Thick(mm)	Filter Area (M2)
LFF-8	8	￠600*3000	1000	0.3
LFF-15	15	￠800*3130	1000	0.5
LFF-25	25	￠1000*3350	1000	0.8
LFF-30	30	￠1200*3450	1200	1.13
LFF-35	35	￠1200*4100	1200	1.13
LFF-45	45	￠1400*3800	1200	1.54
LFF-55	55	￠1500*4050	1400	1.80
LFF-60	60	￠1600*3870	1400	2.0
LFF-90	90	￠1700*5100	1400	2.3
LFF-100	100	￠1800*5180	1400	2.5
LFF-130	130	￠2000*5370	1400	3.2
LFF-150	150	￠2100*5620	1400	3.5
LFF-160	160	￠2200*5460	1400	3.8
LFF-180	180	￠2200*6100	1500	3.8
LFF-210	210	￠2400*6000	1500	4.5

Comment

-The Filter Speed Normally 30m/h for SS Removal and 20m/h for Iron and manganese

-Diameter Over 1000mm Filter Can Configure Agitator for Good Back washing

-If Adopting Roots Fan as Air Source , Please Inform us before Ordering
