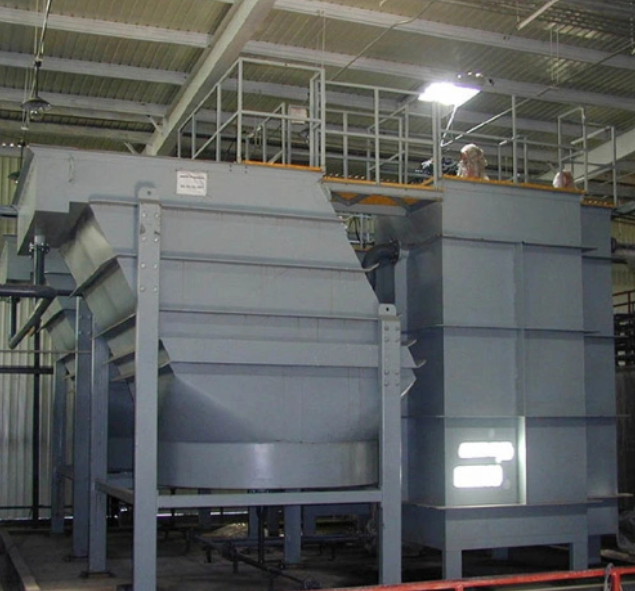

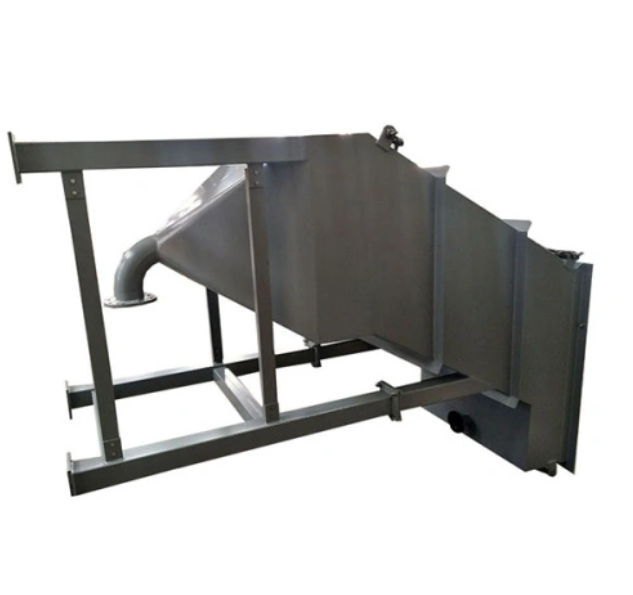

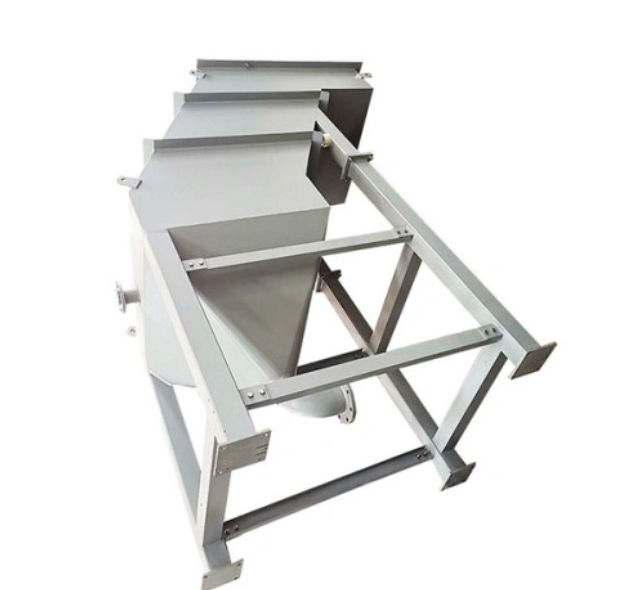

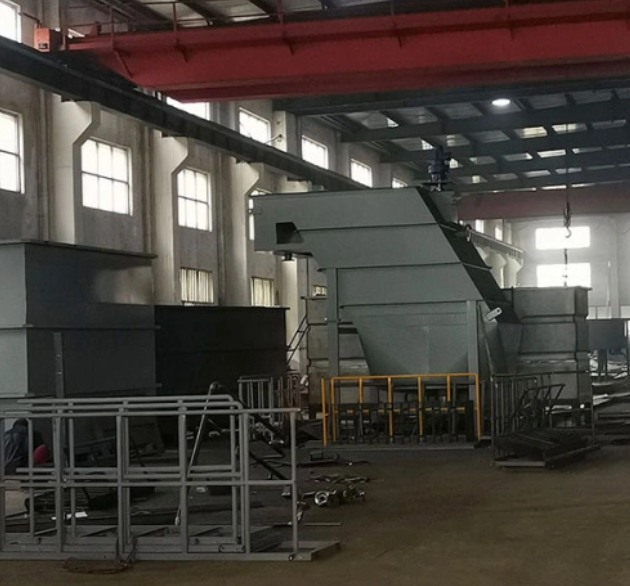

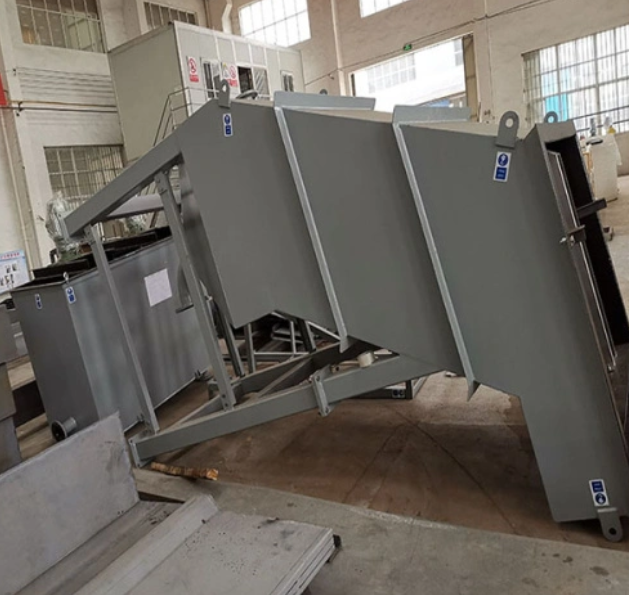

Loren LIPC Series Modular Lamella Clarifier
Lamella Clarifier In Water Treatment Plant Definition
A Lamella Clarifier or Inclined Plate Settler (IPS) Is A Type of Clarifier Designed To Remove Particulartes From Liquids.
Loren Lamella Plate Vertical Clarifier is Designed To Provide Low Cost, Efficient Solids Removal From a Wide Range Of Waste & Process Liquids. The Inclined Plate Design Allows The Total Gravity Settling Area To Be As Much As Ten Times More Than The Actual Floor Space Occupied By The Clarifier. Integral Chemical Mixing & Flocculation Tanks Are Available, As Well As Options For Enhanced Sludge Thickening.
Inclined Plate Lamella Type Separator Feature & Advantage
-100% Water Cost Saving
-Auto Self-Cleaning Lamellar Packs Guarantees Perfect Performance
- No Clogged Phenomenon
-Large Effective Settling Area
-Separate Slurry Instantly From Water
-Extremely Little Space Size is Suitable & Available For Low Ceiling Space .
-Simple Design With No Chemical in Some Applicant like Before UF Filter
- Optional Auto Floc. Dosing Station Can Optimize Its Settling Process
- No Mechanical, Moving Parts In Settling Area
-Efficient Removal Of Solids (TSS, TDS, Metals etc.) From Liquids
-Minimum Maintenance
-Low Mounting Costs
-Capacities From 1 to 2,000 GPM
-Acceleration Of The Sedimentation & Disintegration Processes
-Space Saving & Cost Reduction;
-Increased System Flow Rate & Efficiency Due To Compact Dimensions
-Drastic Reduction Of Foam In The Dirty Water Collection Pit
-It Is Delivered Preassembled & Pretested
-Unlimited Video Call Assistance For The Start-Up & Adjustments.
- Prevent The Proliferation of Dangerous Bacteria In The Water
-Eliminate The Obstruction of Muddy Deposits In Pipes & Matching Machinery
-Elimination of Water Abrasion Index.
-Reduction of Water Acidity Index.
-Help Maintain a Cleaner & Healthier Workplace.
-Long Service Life Time
Vertical Lamellar Plate Pack Water Clarifier Normal Criteria
-Max. Inlet Water Concentration:10000mg/L Grease & 3000mg/L Solids
-90-99% Free Oils & Greases Removal Ratio
-20-40% Emulsified Oil & Grease Removal Under No Chemical Dosing.
-50-99% Removal Ratio Under The Addition Of Chemical Agent
-Treated Water Turbidity is About 1-2 NTU
-50mmTube or Plate Spacing
-1-2 m Tube or Plate Length
-Plate Pitches Between 45° & 70° Allow For Self-Cleaning
-Lower Pitches Require Backwash
-Minimum Plate Pitch 7°
-Typical Loading Rates Are from 5m/h & 10M/h
Working Principle

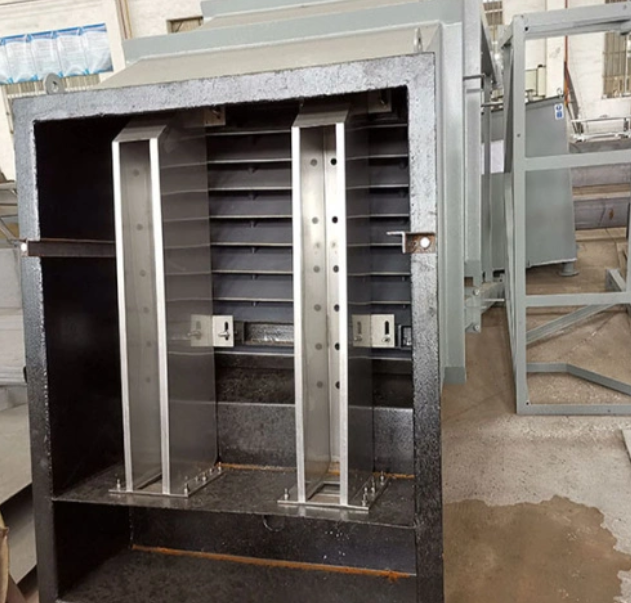

Typical Lamella Water Clarifier Design Consists Of a Series Of Inclined Plates Pack Located Inside a Silo Water Clarifier The Untreated Waste Water Coming From Manufacturing Processes Enters From The Top Of The Silo & Flows Down a Feed Channel Underneath The Inclined Plates (Or Lamella).Water Then Flows Up Inside The Clarifier Between The Inclined Plates (Or Lamella).The Solids Contained Into The Water Fall To The Plate (Lamella) Surface, Where They Slide By Gravity Down To The Conic Sludge Collection Hopper.
Applicant
-Ground Water
-Industrial Process Water & Backwash From S & Filters.
-Pretreatment for Effluent Filtration/Membrane Processes
-Municipal & Industrial Waste Water Treatment Process
-Upgrade Conventional or Existing Sludge Blanket Clarifier
-TSS, Solids/Particulate Removal
-Ballasted Flocculation
-Filter Backwash Clarification
-Leachate Clarification
-Industrial Process Water Clarification
-Cooling Tower Water Clarification
-Surface/Raw Water Treatment
-Water Recycling/Reuse
-Primary clarification of wastewater
-Wash Water Re-circulation Systems In Fruit & Vegetable Crop Processing
-Humus Settlement
-Gravel & Sand Industry
-Glass / Ceramics / Natural Stone
-Chemical Industry
-Energy Industry
-Tunneling / Construction Sites
-Waste / Landfill / Street-Cleaning
-Wet Scrubber & Slaking Effluents In The Power Industry
-Thickening Processes In The Chemical, Mining & Mineral Industries
Why Us
- We Serve for Global Groups For Many Years
-Factory Long History Directly Sales Cost & Fast Delivery
-Fully Customized Economic& Compact Design & Fabrication
-Fully Automatic System with Long Life Work Protection
-Customer OEM Service & Flexible Adjusting
-Good Quality Control & Training System
-Large Domestic & Overseas Performance Sites
-Within 8 Hours Response Service & After Sales Service
Model Selection & Specification Table
Model & Capacity ( M3) | Dimension L*W*H (MM) | Plate Qty (PC) | Drive Power (kw)） | Inlet DN | Outlet DN | Sludge Output DN |
LIPC-5 | 2400*1360*3050 | 10 | None | 80 | 80 | 150 |
LIPC-10 | 3000*1740*3200 | 15 | None | 100 | 100 | 150 |
LIPC-20 | 3750*2200*4260 | 38 | None | 125 | 125 | 200 |
LIPC-30 | 4050*2520*4650 | 46 | None | 125 | 125 | 150 |
LIPC-40 | 4340*2820*4700 | 50 | None | 150 | 150 | 150 |
LIPC-50 | 4520*3090*4900 | 56 | None | 150 | 150 | 200 |
LIPC-60 | 4725*3190*5100 | 58 | None | 150 | 150 | 150 |
LIPC-80 | 4975*3290*5330 | 60 | None | 200 | 200 | 150 |
LIPC-100 | 5175*3490*5330 | 64 | None | 200 | 200 | 200 |
With Bottom Skimmer Type |
LPCS-5 | 2600*1600*3300 | 10 | 0.55 | 80 | 80 | 50 |
LPCS-15 | 3400*1800*3800 | 15 | 0.55 | 100 | 80 | 50 |
LPCS-20 | 3400*2200*3800 | 38 | 0.55 | 150 | 150 | 50 |
LPCS-30 | 4200*2200*3800 | 46 | 0.55 | 150 | 150 | 50 |
LPCS-40 | 4200*2800*3800 | 50 | 1.10 | 200 | 200 | 50*2 |
LPCS-50 | 4700*2800*3800 | 56 | 1.10 | 200 | 200 | 50*2 |
LPCS-60 | 4800*3100*4000 | 58 | 1.10 | 200 | 200 | 50*2 |
LPCS-80 | 5100*3400*3800 | 60 | 1.10 | 200 | 200 | 80 |
LPCS-90 | 6300*3000*3800 | 62 | 1.10 | 250 | 250 | 80 |
LPCS-100 | 7100*3000*3800 | 64 | 1.10 | 250 | 250 | 80*2 |
LPCS-110 | 7800*3000*3800 | 68 | 1.10 | 250 | 250 | 80*2 |
LPCS-120 | 8300*3000*3800 | 74 | 1.10 | 300 | 250 | 80*2
|
