LHS Series Hydrocyclone & Cyclone Separator

 

LHS Series Hydrocyclone & Cyclone Separator

Payment Type: T/T

Supply Ability: 250 sets Per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LHS-300

Brand: Loren

Service System: Onsite Installation, Return And Replacement, Overseas Call Centers, Field Maintenance And Repair Service

Warranty Service: 2 Years

Appropriate Types: Outdoor, Hotel, Commercial

Kind Of Power: Electric

Species: Cold

Installation Method: Stand

Shell Material: Stainless Steel

Certification: Ce

Place Of Origin: China

Key Function: Purifying Sand , Grit, Oil and Grease in water

Remove Sand Grain Size: ＞0.1mm

Raw Water Turbidity: ≥300 NTU

Outlet Water Turbidity: ≤10 NTU

Water Head Lost: <0.02 Mpa

Water Inlet Pressure: ≤0.25Mpa

Pressure Lost: 0.028 Mpa

Short Back Washing Time: Only 5 Seconds

Can Be Deign: Multiple Stage Combination Work

OEM ODM After Sale Servie: Available in short time

Product Description

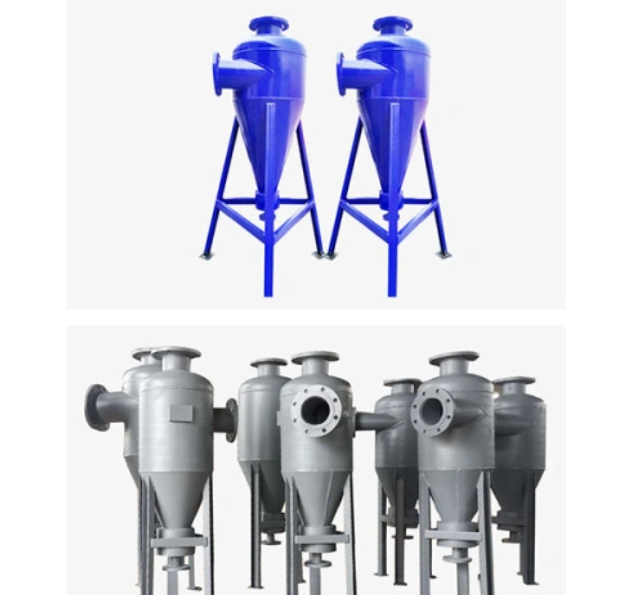

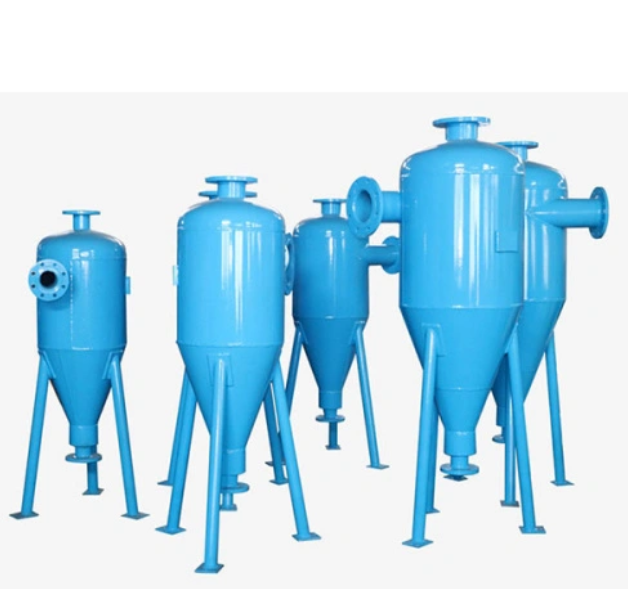

LHS Series Hydrocyclone & Cyclone Separator

Definition of Precision Water Treatment Cyclone Desander

LHS Series Hydrocyclone Separator is a Main Machine to Separate Large Slurry or Large Grit or Oil & Grease In The Water Through Gravity or Pressurized Power in Form of Pipe Style or Cylindrical Styles . It Integrated Swirling and Filtration

Feature and Characteristic of Scale Reduction Water and Sand Separation Machine

-Simple Structure

-Easy Operation

-Reliable and Safe Performance

-Nearly No Needing Maintenance

-Large Capacity with Small Room

-Can Tidy the Grit or Sand Without Interrupting Water Supply

-With Little Purifying Resistance

-Precise Filtration With No Secondary Pollution

-High Sand Removal Ratio and Efficiency

-Back Washing Valve Can Auto Clean Its Filtration Mesh

-Only 5 Seconds Short Back Washing Time

Applicant Field of Groundwater Well Water Grit Collector Desander

- Water Source Hot Pump System

-Cooling Water for Center Air Conditioner

-Cooling Water System

-Winter Hot-Cold Circulated Water System

-Industrial Cooling Water System

-River Water

-Well Water Desander

-Coal Washing Water

-Industrial Mineral Separation

-Liquid Outgassing

-Steel Water

-Power Plant

-Chemistry

-Waterworks

-Sea Water

-Brackish Water

-Food Industry

-Pharmacy

-Environmental Protection

-Agriculture

-Other Water Treatment Fields

Technique Data

-Remove Sand Grain Size:＞0.1mm

-Raw Water Turbidity:≥300 NTU

-Outlet Water Turbidity:≤10 NTU

-Water Head Lost: <0.02 Mpa

-Water Inlet Pressure:≤0.25Mpa

-Pressure Lost: 0.028Mpa

-Smooth Sand Discharge

Working Principle

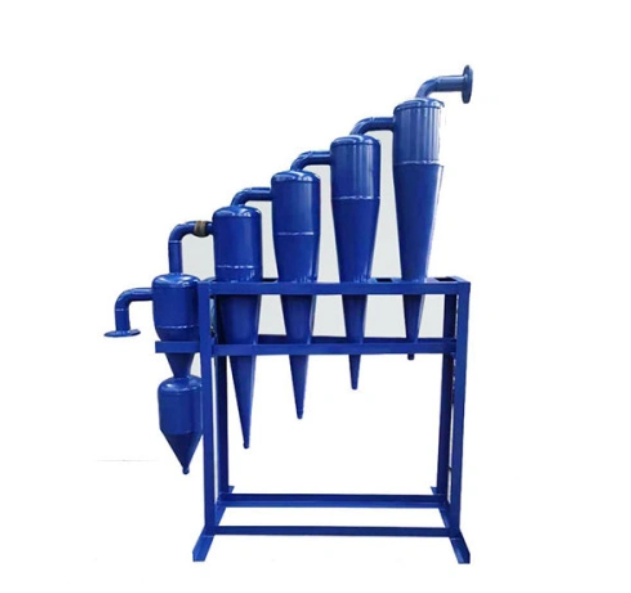

As per The Settling Density Difference of different Materials In Water To achieve solid liquid Separation Under The Function of Centrifugal Force ,The centripetal buoyancy and fluid drag, In Some Condition , The More Higher of The Filter Inlet Water Pressure, The Higher Efficiency of the Sand Removal Ratio. It Can Also Be Run with Multiple Sets Combined Together.

Working Process Normally

A. Raw Water→Swirl Desander→Security Filter→Water Storage Pool →User

B. Starch Slurry Water→Swirl Desander→Security Filter→Sedimentation Pool

Model Selection and Parameter Data

Model	Capacity (M3)	Max grain size (mm)	Separation Size (µm)	Dimension(mm)	Sand Removal Ratio
LHS-6	6	1.5	30-70	￠160*700	>96%
LHS-9	9	1.5	30-70	￠160*800	>96%
LHS-12	12	2.0	40-100	￠220*1000	>96%
LHS-15	15	3.0	40-100	￠280*1100	>96%
LHS-20	20	3.0	40-100	￠320*1100	>96%
LHS-25	25	3.0	40-100	￠320*1200	>96%
LHS-30	30	3.0	40-100	￠320*1300	>96%
LHS-35	35	6.0	50-150	￠400*1400	>96%
LHS-40	40	6.0	50-150	￠400*1500	>96%
LHS-50	50	6.0	50-150	￠400*1600	>96%
LHS-60	60	10	74-200	￠500*1500	>96%
LHS-70	70	10	74-200	￠500*1500	>96%
LHS-80	80	10	74-200	￠500*1550	>96%
LHS-90	90	16	80-230	￠600*1600	>96%
LHS-100	100	16	80-230	￠600*1700	>96%
LHS-115	115	16	80-230	￠600*1800	>96%
LHS-130	130	16	80-230	￠600*1900	>96%
LHS-145	145	16	80-230	￠600*2000	>96%
LHS-160	160	20	90-260	￠700*1700	>96%
LHS-175	175	20	90-260	￠700*1800	>96%
LHS-190	190	20	90-260	￠700*1900	>96%
LHS-205	205	20	90-260	￠700*2000	>96%
LHS-225	225	25	100-290	￠800*1800	>96%
LHS-240	240	25	100-290	￠800*1900	>96%
LHS-255	255	25	100-290	￠800*2000	>96%
LHS-270	270	25	100-290	￠800*2100	>96%
LHS-285	285	25	100-290	￠900*1900	>96%
LHS-300	300	25	100-290	￠900*2000	>96%
LHS-315	315	25	100-290	￠900*2100	>96%
LHS-330	330	25	100-290	￠900*2200	>96%
LHS-340	340	30	120-350	￠1000*2000	>96%
LHS-365	365	30	120-350	￠1000*2100	>96%
LHS-375	375	30	120-350	￠1000*2200	>96%
LHS-390	390	30	120-350	￠1000*2300	>96%
LHS-405	405	30	120-350	￠1000*2400	>96%

Note:The Above Data is only for Reference, Will Subject to our Final confirmation
