Loren LPFP Series Automatic Plate Frame Filter Press for wastewater treatment
Automatic Lab Filter Press Filtration Equipment Definition
A Plate & Frame Filter Press Is One Kind Of Intermittent Liquid-Solid Splitter Under Pressure of Transforming Pump or Hydraulic Power to carry on solid liquid Filtration Over Medias In Various Straining Chambers composed by its Board and Frame Layout.
During Pressure Filtration Process, The whole system pressure controlled by gauge is relatively constant to prevent slurry Leakage thus to ensure good filtration effect.
It can be Mainly formed two types: Plate Frame Style & Box Or Chamber Style
Loren Quick Open Plate & Frame Sludge Filter Press Feature & Merit
-Excellent Solid Liquid Separation Efficiency
-Filtration Area Range: 200-2000 m2
-Multiple Optional Filter Plate Material: SS, Cast Iron, Rubber, PP, FRP., PP-30 Elastomer Membrane
-Multiple Choice of Liquid Flow: Open,Dark, Washable,Non-Washable,Medium Feed, Corner Feed, Upper And Middle Feed Etc
-Optional Plate Compaction Way:By Screw, Electricity Or Hydraulic Cylinder
-Lower Residual Moisture
-High Capture Rate
-Low Energy Consumption
-Super Low Cost
-Reliable & Easy Automatic Running Performance
- Special Design for Aggressive Media
-Modular and Customized Design and Solution
-Free Access to Plate Packing
-Idea for Ultra Thin Materials
-Easy on Mounting and Maintenance
-Global Brand Components
-High Pressure Dual Cranks Control mould Opening and Closing
-Long Service Life
-Clog-Free Performance: Fit for Sludge with oil, Grease and Fiber Perfectly
-Stainless Steel Module Structure Make It Run In A Long Life Time
Working Principle of loren Effective High Capacity Sludge Press Filter Equipment

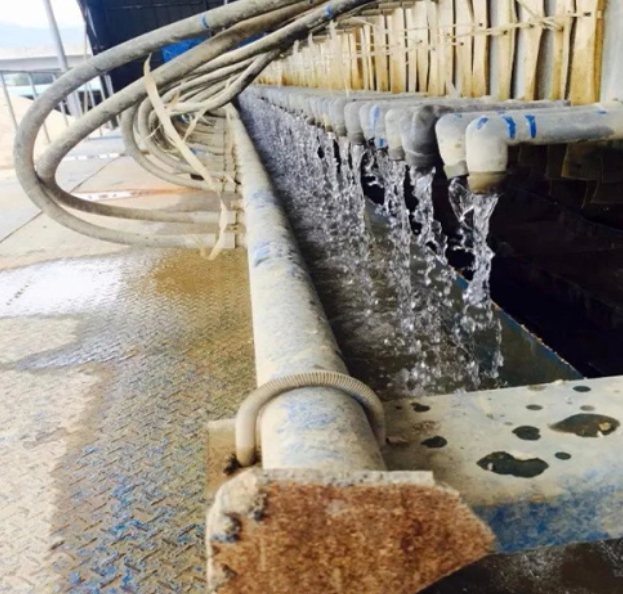

Slurry Will Be Pumped Into The Filter Cloths Of The Filter Press Evenly To From Sludge Cake Under By Trapping And Compaction Gradually During The Feeding Cycle. The Filter Cake Acts As a Depth Filter For Solid Liquid Separation While The Filtrate Will Flow Into The Mainifold Valve Through Its Side Outlet Port. Once The Solids Build Within The Chambers Until They Are Completely Full Of Filter Cake Under The Pressure From Its Feeding Pump, It Finishes One Filtration Cycle And Will Be Ready To Be Drained.
Applicant for Almost All Types of Slurry Fields Such as
-Ceramics Industry
-Stone Industry
-Glass Industry
-Mining & Minerals Industry
-Coal Washing
-Sand Washing
-Pulp Paper Industry
-Food Industry
-Chemical & Pharmacy Industry
-Electroplating Industry
-Textile& Dyeing Industry
-Leather Industry
-Municipal Slurry
-Petroleum Industry
-Sugar Manufacturing
-Food & Beverage Industry
-Starch Processing
-Painting and Coating
- Metallurgy
-STP
-Energy
-Hotels & Restaurant
-Building Material Shops
-Printing Shops,
-Brewing
- Aquatic Product Industry
-Water Clarification Plant Sludge Dewatering or Concentration
-Butchery & Husbandry.
-Ethanol Residue
-Slaughter Industry
-Car Wash Factories
Hydraulic Filter Separation Sludge Dewatering Machine Main Technique Parameter & Model Selection
Model | Filter Area (M2) | Filter Room Volume (Liter) | Plate* Frame Qty (pc) | Power (kw) | Dimension L*W*H (MM) | Weight (KG) |
LPFP4/450 | 4 | 61 | 9*10 | 2.2 | 2061*680*860 | 750 |
LPFP6/450 | 6 | 91 | 14*15 | 2.2 | 2311*680*860 | 820 |
LPFP8/450 | 8 | 122 | 19*20 | 2.2 | 2561*680*860 | 870 |
LPFP10/450 | 10 | 151 | 24*25 | 2.2 | 2811*680*860 | 950 |
LPFP12/450 | 12 | 182 | 29*30 | 2.2 | 3061*680*860 | 1020 |
LPFP16/450 | 16 | 243 | 39*40 | 2.2 | 3561*680*860 | 1150 |
LPFP15/630 | 15 | 226 | 18*19 | 3.0 | 2846*930*1050 | 1700 |
LPFP20/630 | 20 | 298 | 24*25 | 3.0 | 3146*930*1050 | 1950 |
LPFP30/630 | 30 | 453 | 37*38 | 3.0 | 3796*930*1050 | 2200 |
LPFP40/630 | 40 | 595 | 49*50 | 3.0 | 4396*930*1050 | 2580 |
LPFP30/830 | 30 | 442 | 22*23 | 3.0 | 3325*1300*1300 | 2500 |
LPFP40/830 | 40 | 595 | 30*31 | 3.0 | 3765*1300*1300 | 2850 |
LPFP50/830 | 50 | 749 | 38*40 | 3.0 | 4205*1300*1300 | 3200 |
LPFP60/830 | 60 | 902 | 46*47 | 4.0 | 4670*1300*1300 | 3450 |
LPFP70/830 | 70 | 1056 | 54*55 | 4.0 | 5110*1300*1300 | 3800 |
LPFP80/830 | 80 | 1210 | 62*63 | 4.0 | 5560*1300*1300 | 4300 |
LPFP50/1000 | 50 | 752 | 28*29 | 4.0 | 4000*1450*1400 | 3200 |
LPFP60/1000 | 60 | 908 | 34*35 | 4.0 | 4400*1450*1400 | 4000 |
LPFP70/1000 | 70 | 1064 | 40*41 | 4.0 | 4700*1450*1400 | 4400 |
LPFP80/1000 | 80 | 1194 | 45*46 | 4.0 | 5000*1450*1400 | 4800 |
LPFP100/1000 | 100 | 1505 | 57*58 | 4.0 | 5700*1450*1400 | 5200 |
LPFP120/1000 | 120 | 1790 | 68*69 | 5.5 | 6400*1450*1400 | 6500 |
LPFP100/1250 | 100 | 1519 | 36*37 | 5.5 | 4742*1750*1550 | 5800 |
LPFP120/1250 | 120 | 1807 | 43*44 | 5.5 | 5197*1750*1550 | 6800 |
LPFP140/1250 | 140 | 2094 | 50*51 | 5.5 | 5652*1750*1550 | 7500 |
LPFP150/1250 | 150 | 2260 | 54*55 | 5.5 | 5912*1750*1550 | 7800 |
LPFP160/1250 | 160 | 2423 | 58*59 | 5.5 | 6172*1750*1550 | 8400 |
LPFP180/1250 | 180 | 2710 | 65*66 | 5.5 | 6627*1750*1550 | 9500 |
LPFP200/1250 | 200 | 2998 | 72*73 | 5.5 | 7082*1750*1550 | 10600 |
LPFP250/1250 | 250 | 3737 | 90*91 | 5.5 | 8252*1750*1550 | 11800 |
LPFP200/1500 | 200 | 3025 | 49*50 | 7.5 | 6400*2100*1900 | 14200 |
LPFP200/1500 | 250 | 3812 | 62*63 | 7.5 | 7200*2100*1900 | 16000 |
LPFP200/1500 | 300 | 4538 | 74*75 | 7.5 | 8100*2100*1900 | 17300 |
LPFP200/1500 | 350 | 5246 | 86*898 | 7.5 | 8570*2100*1900 | 18500 |
LPFP200/1500 | 400 | 5050 | 99*100 | 7.5 | 9800*2100*1900 | 21000 |
LPFP200/1500 | 450 | 6837 | 112*113 | 7.5 | 10850*2100*1900 | 23600 |
LPFP200/1500 | 500 | 7563 | 124*125 | 7.5 | 11600*2100*1900 | 25800 |
LPFP600/2000 | 600 | 12100 | 83*84 | 7.5 | 10500*3010*2445 | 55700 |
LPFP700/2000 | 700 | 14100 | 97*98 | 7.5 | 11660*3010*2445 | 59700 |
LPFP800/2000 | 800 | 16100 | 110*111 | 7.5 | 12800*3010*2445 | 63000 |
LPFP900/2000 | 900 | 18100 | 125*126 | 7.5 | 13900*3010*2445 | 66000 |
LPFP1000/2000 | 1000 | 20100 | 139*140 | 7.5 | 15100*3010*2445 | 70000 |
