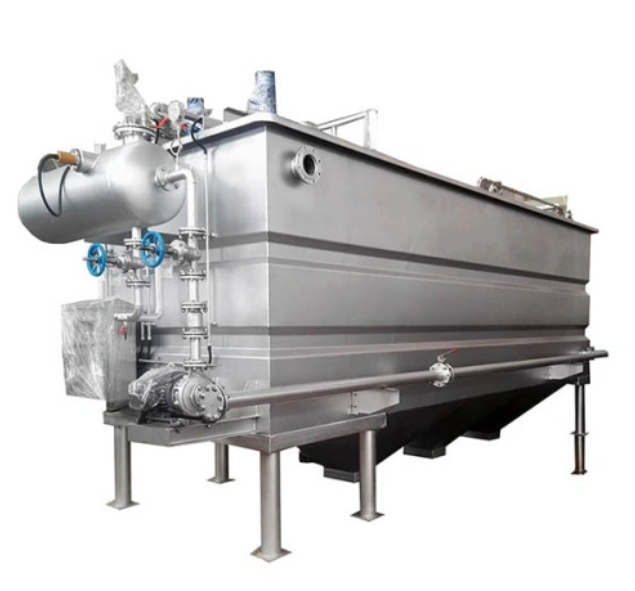

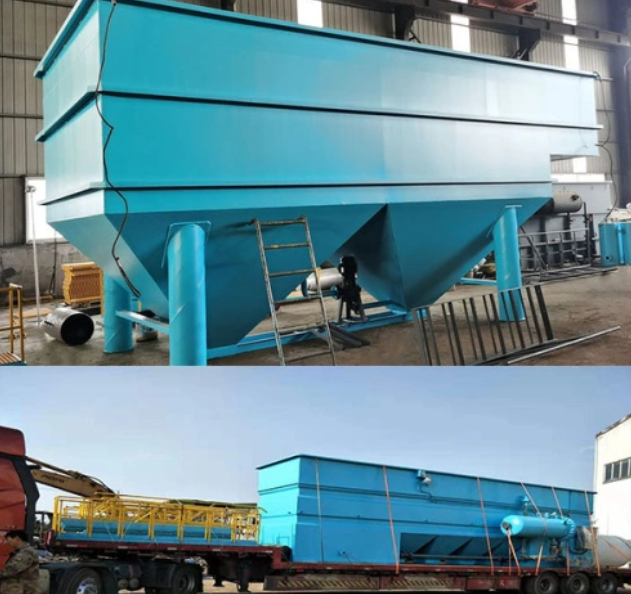

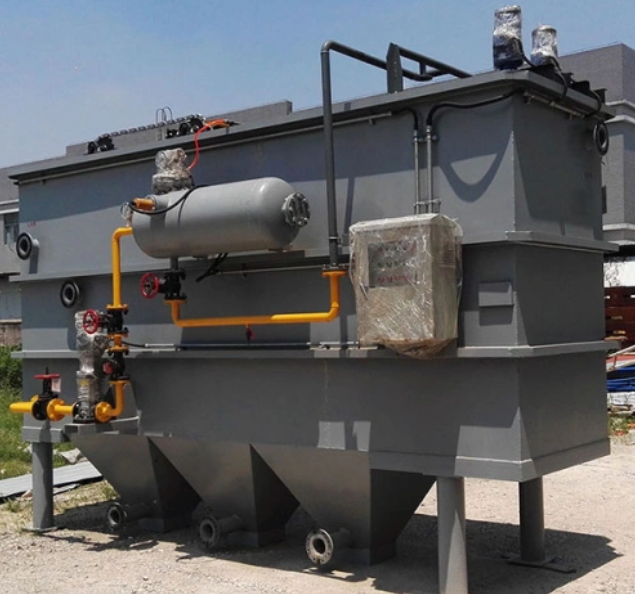

Super Efficiency DAF System with Bottom Sedimentation Hopper

 

Super Efficiency DAF System with Bottom Sedimentation Hopper

Payment Type: T/T

Supply Ability: 20 sets per month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LPRD-100

Brand: Loren

Applicable Industry: Garment Shops, Manufacturing Plant, Food &Amp; Beverage Factory, Energy &Amp; Mining, Printing Shops, Farms, Hotels, Food &Amp; Beverage Shops, Other

Out-of-warranty Service: Online Support, Spare Parts, Field Maintenance And Repair Service, Video Technical Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Indonesia, India, Mexico, Thailand, Bangladesh

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Place Of Origin: China

Warranty Period: 1 Year

Productivity: 4000l/Hour

Outstanding Feature: Bear High and different stream load

Material Structrue: More Optional （CS, SS, Duplex Steel ）

Coating: Expoxy , FRP, Rubber or Ordinary

Single Large Treated Capacity: 1-300 m3 per hour

Auto Control: Fully Automatic Control with no operator

Design: Module Design with parts Changable Easily

Long Life: Within 20 Years

Can Be Added New Technology: Electrocoaagulation, Silicon Carbon Ceramic UF Membranes etc

OEM ODM Service: Provided

Configuration: Optional Famous Brand or

Product Description

1.Introduction of PDAF

Precipitation Dissolved Air Flotation (PDAF) is our new developed DAF equipment combined with the actual use of the requirements and advanced technology both home and abroad.it can more effectively separate suspends solid in the water by perfect combination of both DAF technology and sedimentation craft in a pool.

The system is now in advanced domestic industry-leading level by adopting such international technology micro, inclined plate, sedimentation and shunt etc

2. Equipment Composition

The sedimentation flotation equipment consists of five systems:

1).Main DAF pool body;

2). Dissolved air system;

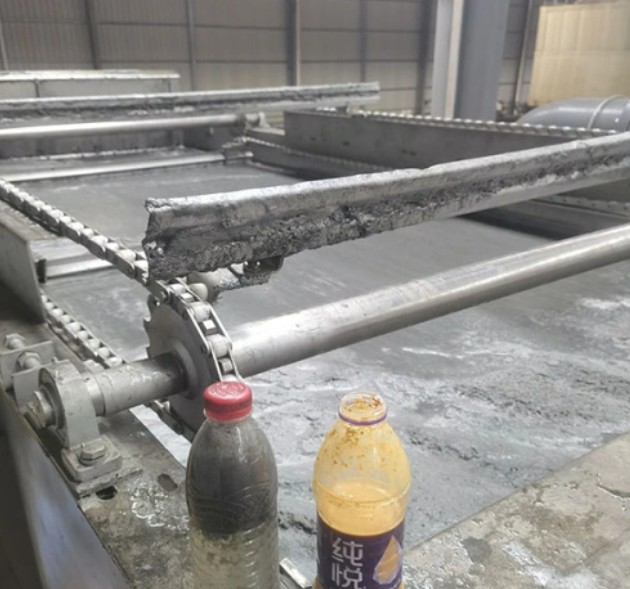

3). Skimming system;

4). Precipitation system;

5). Electronic control system;

6). Escalator walkway;

7). Inclined plate system (optional).

3. Application

It is applied for such water quality with high solid and flocculation concentration, and those SS or contaminants whose weight is heavier than water and also the precipitation phenomenon is significant. So it is widely applied in such fields as oil, fat, food processing, sludge concentration, electroplating pharmaceutical ,leather industry and so on.

4. Main features and advantages

1). Suitable for water treatment capacity range: 1 ~ 150 m3 / h (single unit)

2).Fit for high concentrations (large amount of SS, oil and colloidal) waste water

3).Assembly on mill to facilitate on-site easy by connecting matching pipeline and cables.

4).Optional installed indoor or outdoor (need insulation under -10℃ ambient temperature )

5).Can be achieved on-site unattended 24 hours automatic continuous operation

6).Easy to precipitate mud and prevent clogging

7).Easy to stop machine for cleaning.

5. Model selection refers to that of CDAF except height

Model	Capacity (m3/h)	air Volume(m3/h)	Pump (kw)	Compressor (kw)	Skimmer(kw)	Run Weight (kg)
LPRD-1	0.5～1	0.3～0.5	0.55	0.55	0.18	1800
LPRD-2	1.5～2	0.6～1	0.75	0.55	0.18	2100
LPRD-3	2～3	1～1.5	0.75	0.75	0.37	3600
LPRD-5	3～5	1.5～2	1.1	0.75	0.37	4400
LPRD-10	5～10	2～3	1.5	0.75	0.37	9400
LPRD-15	11～15	3～5	2.2	0.75	0.37	12400
LPRD-20	16～20	5～7	2.2	0.75	0.37	15000
LPRD-25	21～25	6～8	3	0.75	0.37	18000
LPRD-30	26～30	8～10	3	0.75	0.37	21000
LPRD-40	31～40	10～15	5.5	0.75	0.37	27000
LPRD-50	41～50	15～18	7.5	1.5	0.37	33000
LPRD-60	51～60	18～20	7.5	1.5	0.55	40000
LPRD-70	61～70	20～25	11	1.5	0.55	45000
LPRD-80	71～80	25～30	11	1.5	0.55	52000
LPRD-100	91～100	30～35	15	2.2	0.55	68000
LPRD-120	101～120	35～45	15	2.2	0.55	76000
LPRD-150	121～150	45～55	15	2.2	0.75	85000
