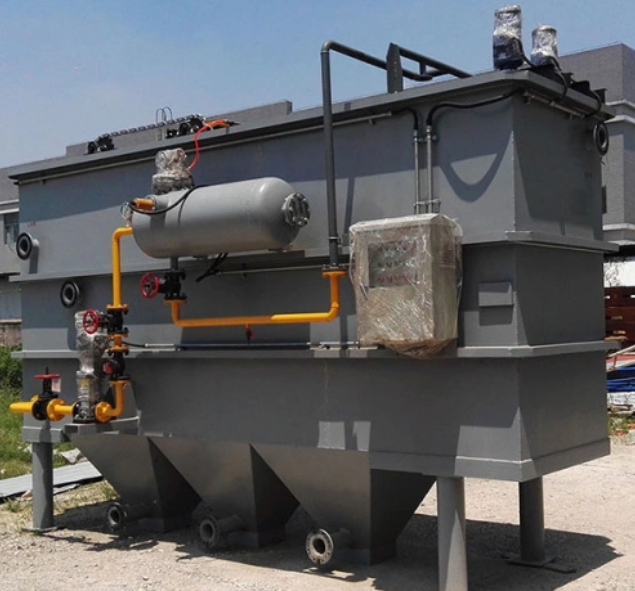

High Load DAF Machine with Bottom Hopper

 

High Load DAF Machine with Bottom Hopper

Payment Type: T/T

Supply Ability: 20 sets per month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LPRD150

Status: New

Applicable Industry: Hotels, Restaurant, Farms, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Construction Works

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Bangladesh, Mexico, India

Showroom Location (in Which Countries Are There Sample Rooms Overseas): South Africa

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 3 Years

Core Components: Bearing, Pump

Place Of Origin: China

Warranty Period: 1 Year

Productivity: 7500l/Hour

Renovated Generation: 4th

Main Structure: Stainless Steel , CS Duplex Steel

Single Model Capacity Range: 20-1200 CBM per Hour

Theories Adopts: Shallow Tank, Zero Speed with Micro Nano Bubble Generation

Merit: Small Footprint with Large Capcity

Unique Design: outside Air Release system

Air System: Can be different Design

Applicant: Almost all Industrial and Sewage as well as tap water

Feature: First Sedimentation , Then Flotation

Advantage: Fully Take use of All DAF T

Product Description

Loren Precipitation DAF Machine for Food and Other Tough Waste Water Treatment

1.Introduction

Loren LPRD Series Precipitation Dissolved Air Flotation is our new developed DAF equipment combined with the actual use of the requirements and advanced technology both home and abroad.it can separate suspends solid more effectively in the water by perfect combination of both DAF technology and sedimentation craft in a pool.

The system is now in advanced domestic industry-leading level by adopting such international technology micro, inclined plate, sedimentation and shunt etc

2. Equipment Composition

The sedimentation flotation equipment consists of five systems:

.Main DAF pool body;

2). Dissolved air system;

3). Skimming system;

4). Precipitation system;

5). Electronic control system;

6). Escalator walkway;

7). Inclined plate system (optional).

3. Application

It Is Applied For Such Water Quality With High Solid And Flocculation Concentration, And Those SS or Contaminants Whose Weight Is Heavier Than Water And Also The Precipitation Phenomenon Is Significant. So It Is Widely Applied In Such Fields As

Oil and Grease,

Food processing,

Sludge concentration,

Electroplating

Pharmaceutical

Leather industry and so on.

4. Main Features & Advantages

1). Suitable for water treatment capacity range: 1 ~ 150 m3 / h (single unit)

2). Lamella Plate Technology for Enhanced Hydraulic Settlement

3). High toughness & anti-Impact Performance

4). Half Footprint of Traditional DAF While TSS Removal Ratio Higher

5). Heavy Duty Skimmer And Sludge Concentration Range ( 30 -150 g/L)

6). Integrated Built-in Reaction System Reduce 10-30% Chemical Dosing.

7).Assembly On Workshop To Facilitate On-Site Direct Work

8). Indoor Or Outdoor Optional Mounting Under -10℃ Temperature

9). On-site Unattended 24 Hours Automatic Continuous Operation

10). Easy to Precipitate Mud & Prevent Clogging

11).Easy to Stop Machine For Cleaning.

5.Technology mechanism

1. Micro Bubble Generation By Our Special Design

2. Settlement Technology For Sludge

3. Re-flux Mechanism.

4. Scum Circulation And Flocculation Technology

5. Hypo-Surface Capture Technology

6. Laminar Flow In Separation Zone Technology

7. Solid & Liquid Separation Craft With Sludge Thickening Tech.

6. Model Selection Refers To That Of LIRD Except Height

Model	Capacity （m3/h）	air Volume（m3/h）	Pump (kw）	Compressor （kw）	Skimmer（kw）	Run Weight (kg)
LPRD-1	0.5～1	0.3～0.5	0.55	0.55	0.18	1800
LPRD-2	1.5～2	0.6～1	0.75	0.55	0.18	2100
LPRD-3	2～3	1～1.5	0.75	0.75	0.37	3600
LPRD-5	3～5	1.5～2	1.1	0.75	0.37	4400
LPRD-10	5～10	2～3	1.5	0.75	0.37	9400
LPRD-15	11～15	3～5	2.2	0.75	0.37	12400
LPRD-20	16～20	5～7	2.2	0.75	0.37	15000
LPRD-25	21～25	6～8	3	0.75	0.37	18000
LPRD-30	26～30	8～10	3	0.75	0.37	21000
LPRD-40	31～40	10～15	5.5	0.75	0.37	27000
LPRD-50	41～50	15～18	7.5	1.5	0.37	33000
LPRD-60	51～60	18～20	7.5	1.5	0.55	40000
LPRD-70	61～70	20～25	11	1.5	0.55	45000
LPRD-80	71～80	25～30	11	1.5	0.55	52000
LPRD-100	91～100	30～35	15	2.2	0.55	68000
LPRD-120	101～120	35～45	15	2.2	0.55	76000
LPRD-150	121～150	45～55	15	2.2	0.75	85000

The Above Data Only For Reference , Please Subject To Our Final Confirmation
