Vertical Waste Water Disposol DAF Machine

 

Vertical Waste Water Disposol DAF Machine

Payment Type: T/T

Supply Ability: 15 Sets per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LVAF-50

Place Of Origin: China

Design: Upright Flow Brownian Motion

Material: Mild Steel or SS or Duplex Steel

Micro Bubble: More Smaller with High Speed Rising

Unique: Distribution and Sludge Skimmer

High Performance: TSS, COD, Color , TP Removal

Model: Over 50 CBM need Change Anotehr one

OEM, ODM Service: Available

After Sales Service: Within 8 Hours Response and Solution

Supply Chain: Globally

Feature: Fast up Rising

Product Description

Vertical Flow Super Dissolved Air Flotation Machine

Feature

-Less Footprint Occupation

-Higher Surface Load

-Average Micro Bubble Under 1 um

- General Micro Bubble Surface Area Increased 100 times

-Half Chemical Consumption Compared with Rectangular one

-4% Higher Scum Skimmer Concentration

-96% TSS Removal Ratio, 100% Non-Water-Soluble COD Removal Ratio

-Fast Purification Speed

-Easy Operation

- Convenient Maintenance

Working Principle

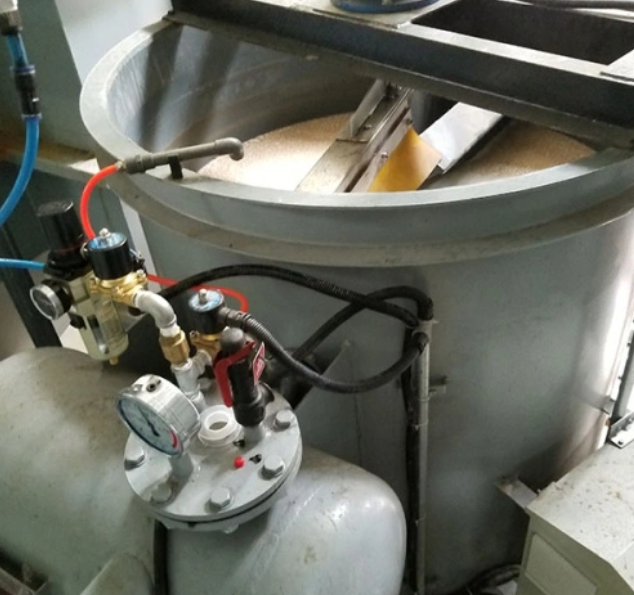

The air Which will be insert into the Dissolved Air Tank Through Air Compressor or Site Air Source Mixes with The Fresh Water to Generator Micro Air Bubble Under 0.35Mpa pressure to form dissolved air water which will be Released Suddenly to Generate Micro bubble who will Taken the Coagulant Suspend Solid Adhered onside into the DAF Tank Surface to form Scum Layers , while the Clean water will remain under the layer to go in the clean water pipe or back to the re-flux air water pipeline . the scums on the surface will be skimmed by the Scraper to generate solid liquid Separation.

Main Composition

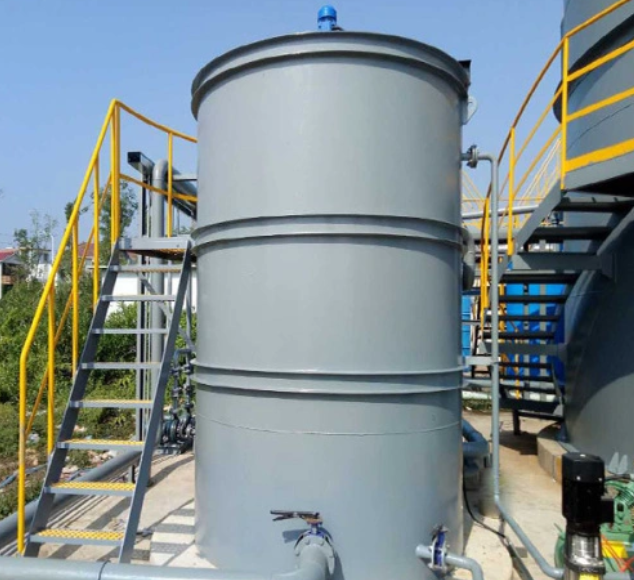

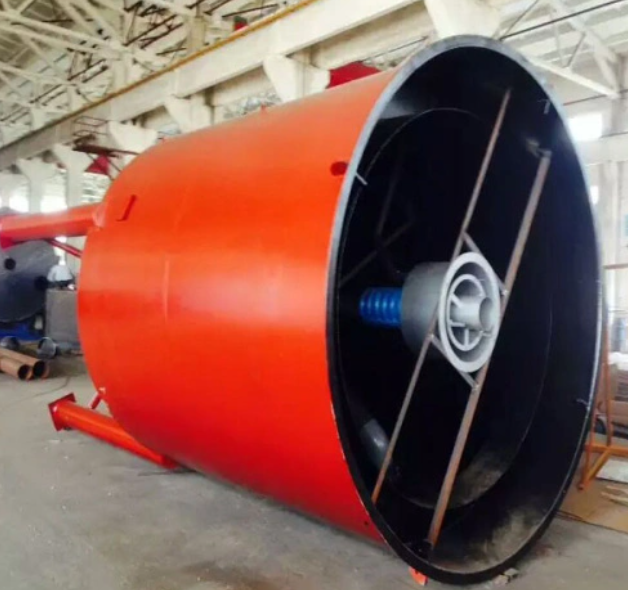

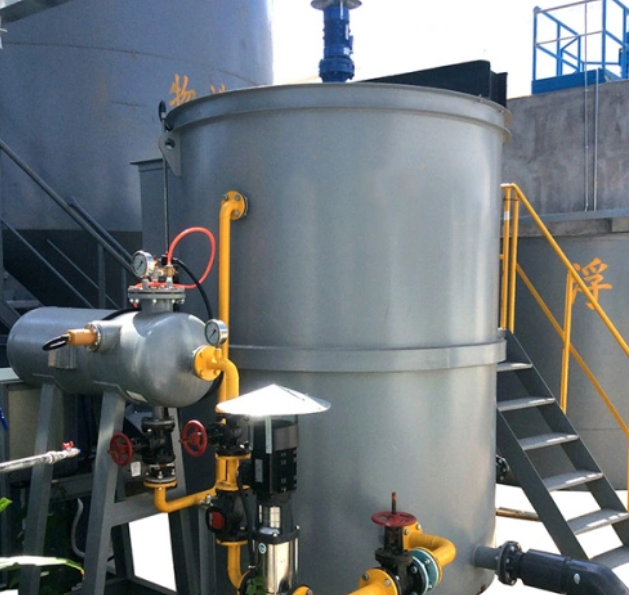

It is composed of Cylinder DAF Tank Body with Air Dispenser, Distributor, Sludge Pipe, Outlet Pipe, Sludge Tank, Scraper & Transmission System etc Inside or Two Round Chemical Dosing Tanks with Agitators Outside

Main Technical Parameter

Model	Flow	Dimension (mm)	Pump (kw)	Compressor (kw)	Skimmer (kw)	Total power (kw)
LVAF-1	0.5-1	Φ800×1900	0.55	0.55	0.37	1.47
LVAF-3	2-3	Φ1200×2100	1.1	0.55	0.37	2.02
LVAF-5	3-5	Φ1500×2600	1.1	0.55	0.37	2.02
LVAF-10	5-10	Φ1800×2800	1.5	0.75	0.37	2.62
LVAF-20	10-20	Φ2200×3000	2.2	0.75	0.55	3.50
LVAF-30	20-30	Φ2600×3200	3.0	0.75	0.55	4.30
LVAF-40	30-40	Φ3000×3500	5.5	0.75	0.55	6.80

The Above Data Only For Reference , Please Subject To Our Final Confirmation

Application

- Electroplating Wastewater Treatment

- Leather Wastewater Treatment

- Dyeing & Printing Wastewater Treatment

- Slaughtering House Wastewater Treatment

- Food Processing Wastewater Treatment

- Dairy and Beverage Wastewater Treatment

- Starch Processing Wastewater Treatment

- Paper Mill Wastewater Treatment

- Chemistry Wastewater Treatment

- Petroleum Wastewater Treatment
