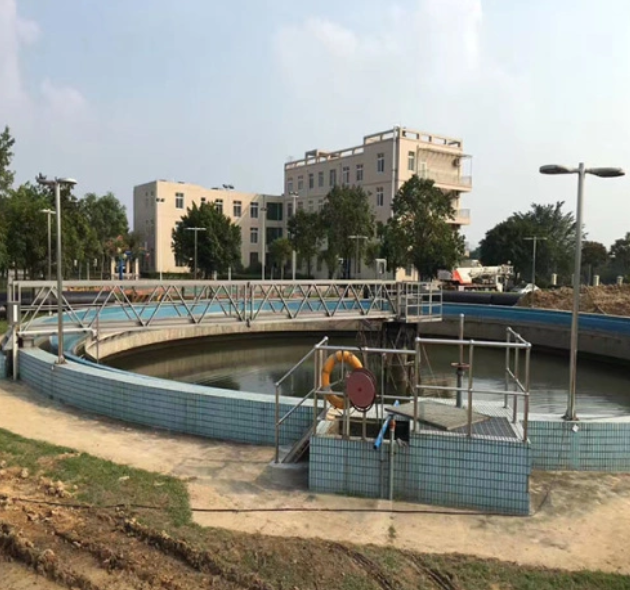

LFPS or LHPS Series Center Drive Pendant Mud Scraper
1st or 2nd Clarifier Hanger Center Drive Suction Dredger Definition
Center Drive Pendant Mud Scraper Suits For Circular Radial Flow Sedimentation Tank Of Sewage Treatment Plant. Its Major Function Is To Scrape The Settling Sludge To The Sludge Tank In Order To Sludge Back-Flow And Sludge Thickening And DE-watering. Depending Upon Circumstances, We Can Also Set Up a Skimming Mechanism On The Water Surface, Collecting The Float Scum Discharged By Hopper.

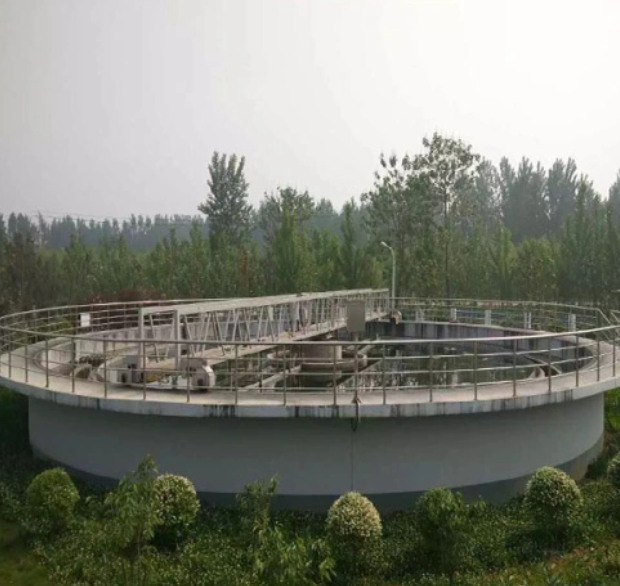

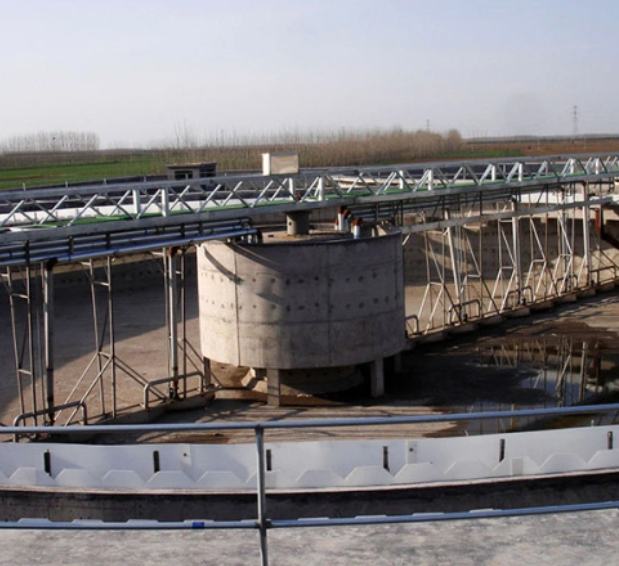

Full Bridge Hanging Central Drive Sludge Suction Dredger Composition
It Is Composed Of Working Bridge (Normally, Half-Bridge) , Drive Mechanism, Rotary Frame, Scraping Arm And Scum Board, Drag-line, Hopper Agitating Impeller, Steady Flow Cylinder, Electric Cabinet. According To The Actual Condition, We Can Add Effluent Weir Plate, Skimming Mechanism, Slag Tap And Sludge Hopper,Etc.
Solid Liquid Separator Sludge Scraper Feature
- Simple and Compact Structure with Light Weight
-Easy Maintenance
-Lower Operation Cost
-Logarithmic Spiral Curve Form Scraper Plates with Excellent Performance
-Auxiliary Scraper Device Make Half Bridge as full Bridge Function
-Simple Solid rubber driven Walking wheels Mounted Easily without Any Orbit.
-Little Sludge Interference, Re-flux Mud fresh with Good Fresh Outlet
-Optional Choice of Center Column, Center Guide Tube, v-Shaped Weir Plate, Slag Skimming Device.
-With Overload Protection Mechanism &Torque Display Device
-Multiplex Reducer Options:
A. Simple & Compact Shaft-Mounted One With Easy Maintenance;
B. Cycloid Reducer Has High Transmission Efficiency With Competitive Cost
- Multiple Optional Walking Wheel Material: Rubber (standard configuration) or Steel. Nylon , Polyurethane As Per Customized Requirement.
- The Efficient Logarithmic Spiral Scraper Plate Ensures Its Reliability
- Outdoor Safe & Reliable Electrical Components With Both Random And Remote Control.
- OEM manufactured or SS Water-Touched Components Available

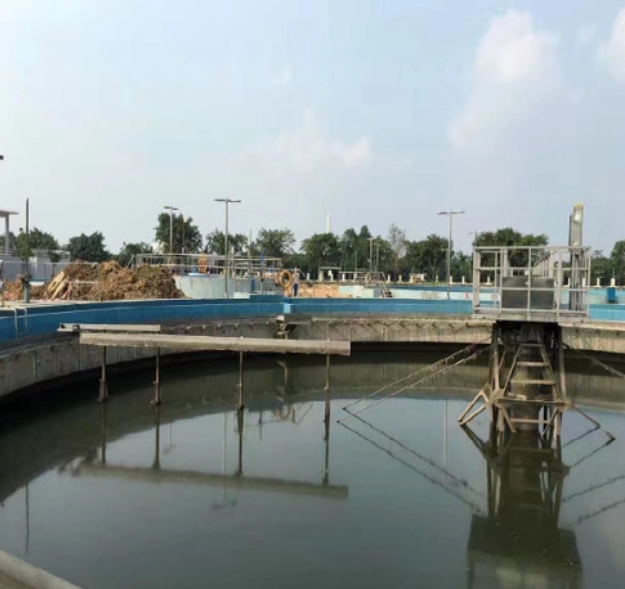

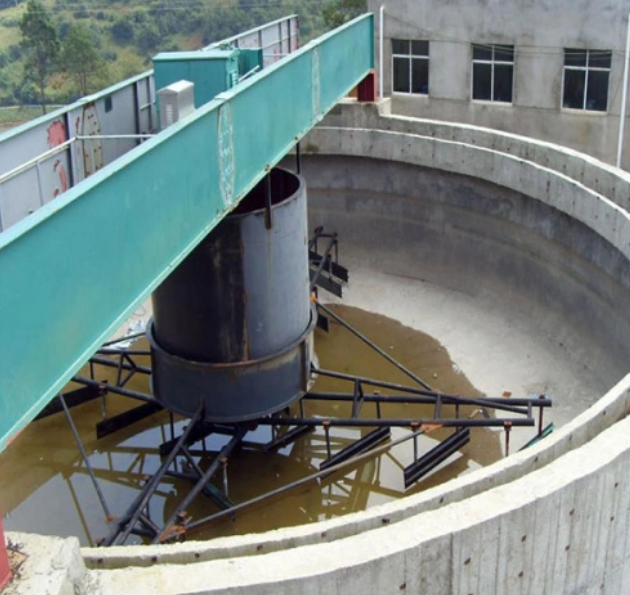

Sludge Settling Tank Scraping Machine Structure &Working Principle
When The LFPS Or LHPS Series sludge scraper Working And Running, Its Drive Mechanism Installed On The Working Bridge Will Move The Frame For Rotary Motion. Then The Scraping Arms On Two Sides And Scum Board Will Move In a Clockwise Direction, Scraping Out The Settling Sludge To The Sludge Collecting Tank. At The Same Time, If There Is Float Scum, The Skimmer Will Scrape It Into Sludge Hopper.

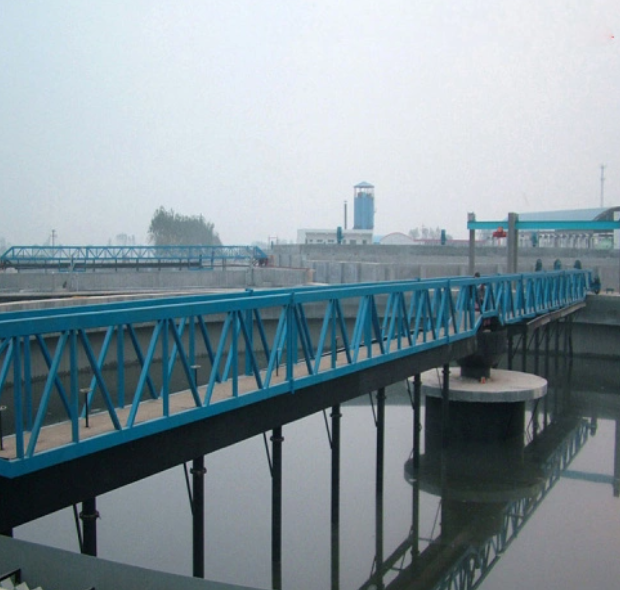

Half Bridge Center Drive Pendant Sludge Purifier Applicant
-First Sedimentation Tank of STP, ETP, WWTP
-Secondary Sedimentation Tank of STP, ETP, WWTP
-Water Supply And Drainage Engineering
-Chemistry
-Aquaculture
-University Water Supply
-Food Processing
-Hotel
-Light Industry WWTP
-Metallurgy ETP
-Mining Coal Water Treatment
Bridge Type Slurry Scraper Model Instruction and Specification
LFPS Full Bridge Center Drive Suspended Mud Scraper
Model | Pool DN (M) | Water Depth (M) | Pool Depth (M) | Linear Speed（M/Min） | Drive Power (kw) |
LFPS 8 | 8 | 1.0～2.0 | 1.5-2.5 | 1.5-2.0 | 0.37 |
LFPS 10 | 10 | 1.0～2.0 | 1.5-2.5 | 1.5-2.0 | 0.37 |
LFPS 14 | 14 | 1.5～2.2 | 1.5-2.5 | 1.5-2.0 | 0.55 |
LFPS 18 | 18 | 2.6～3.6 | 3.0-4.0 | 1.5-2.0 | 0.55 |
LFPS 20 | 20 | 2.6～3.6 | 3.0-4.0 | 1.5-2.0 | 0.55 |
LFPS 22 | 22 | 2.6～3.6 | 3.0-4.0 | 1.5-2.0 | 0.55 |
LFPS 26 | 26 | 2.6～3.6 | 3.0-4.0 | 1.5-2.5 | 0.75 |
LFPS 28 | 28 | 2.6～3.6 | 3.0-4.0 | 1.5-2.5 | 0.75 |
LFPS 30 | 30 | 2.6～3.6 | 3.0-4.0 | 1.5-2.5 | 1.10 |
LFPS 32 | 32 | 2.6～3.6 | 3.0-4.0 | 2.0-3.0 | 1.10 |
LFPS 35 | 35 | 2.6～3.6 | 3.0-4.0 | 2.0-3.0 | 1.10 |
LFPS 38 | 38 | 2.6～3.6 | 3.0-4.0 | 2.0-3.0 | 1.50 |
LFPS 40 | 40 | 2.6～3.6 | 3.0-4.0 | 2.0-3.0 | 1.50 |
LHPS Serious Half Bridge Center Drive Suspended Mud Scraper
Model | Pool DN (M) | Water Depth (M) | Pool Depth (M) | Linear Speed（M/Min） | Drive Power (kw) |
LHPS 08 | 8 | 1.0～2.0 | 1.5-2.5 | 1.5-2.0 | 0.37 |
LHPS 10 | 10 | 1.0～2.0 | 1.5-2.5 | 1.5-2.0 | 0.37 |
LHPS 14 | 14 | 1.5～2.2 | 1.5-2.5 | 1.5-2.0 | 0.55 |
LHPS 18 | 18 | 2.6～3.6 | 3.0-4.0 | 1.5-2.0 | 0.55 |
LHPS 20 | 20 | 2.6～3.6 | 3.0-4.0 | 1.5-2.0 | 0.55 |
LHPS 22 | 22 | 2.6～3.6 | 3.0-4.0 | 1.5-2.0 | 0.55 |
LHPS 26 | 26 | 2.6～3.6 | 3.0-4.0 | 1.5-2.5 | 0.75 |
LHPS 28 | 28 | 2.6～3.6 | 3.0-4.0 | 1.5-2.5 | 0.75 |
LHPS 30 | 30 | 2.6～3.6 | 3.0-4.0 | 1.5-2.5 | 1.10 |
LHPS 32 | 32 | 2.6～3.6 | 3.0-4.0 | 2.0-3.0 | 1.10 |
LHPS 35 | 35 | 2.6～3.6 | 3.0-4.0 | 2.0-3.0 | 1.10 |
LHPS 38 | 38 | 2.6～3.6 | 3.0-4.0 | 2.0-3.0 | 1.50 |
LHPS 40 | 40 | 2.6～3.6 | 3.0-4.0 | 2.0-3.0 | 1.50 |
