LFSS Series Center Drive Suspended Mud Scraper
Solid Liquid Separator Sludge Scraper Definition
The Center-Driven Single-Tube Scraper And Suction Machine Is Used To Remove The Sludge Settled At The Bottom Of The Sedimentation Tank And Skim The Scum On The Surface Of The Tank. This Series Of Dredgers Is Suitable For Both The Secondary Sedimentation Of The Peripheral Water Outlet And The Secondary Sedimentation Of The Central Water Inlet And Peripheral Water Outlet. Can Be Designed And Customized According To Customer Needs, Saving Unnecessary Costs.
Bridge Type Slurry Scraper Composition
It Is Composed Of Working Bridge, Scum Skimmer, Scraper Arm, Central Mud Collecting Cylinder, Driving Device, Central Column, Central Rotating Vertical Frame, Suction Pipe, Scum Baffle, Outlet Weir Plate, Water Retaining Skirt, Counterweight Etc
Half Bridge Center Drive Mud Suction Dredger Feature
- Simple and Compact Structure with Light Weight
-Simple Maintenance
-Lower Operation Cost
- Is Simple And Convenient With Low Operating Costs
-Logarithmic Spiral Curve Form Scraper Plates with Excellent Performance
-Auxiliary Scraper Device Make Half Bridge as full Bridge Function
-Simple Solid rubber driven Walking wheels Mounted Easily without Any Orbit.
-Little Sludge Interference, Re-flux Mud fresh with Good Fresh Outlet
-Multiplex Reducer Options:
A. Simple & Compact Shaft-Mounted One With Easy Maintenance;
B. Cycloid Reducer Has High Transmission Efficiency With Competitive Cost
- Multiple Optional Walking Wheel Material: Rubber (standard configuration) or Steel. Nylon , Polyurethane As Per Customized Requirement.
- The Efficient Logarithmic Spiral Scraper Plate Ensures Its Reliability
- Outdoor Safe & Reliable Electrical Components With Both Random And Remote Control.
- OEM manufactured or SS Water-Touched Components Available

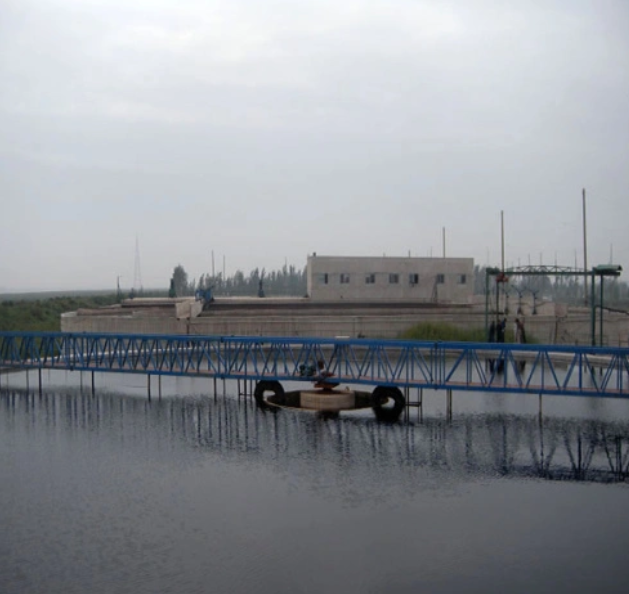

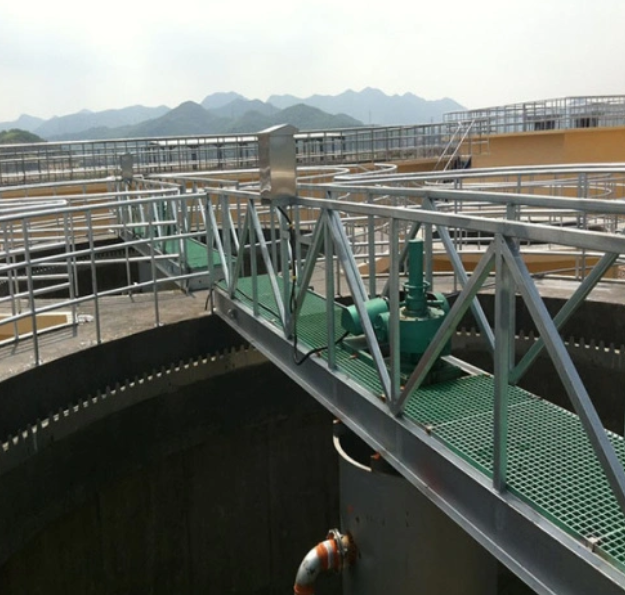

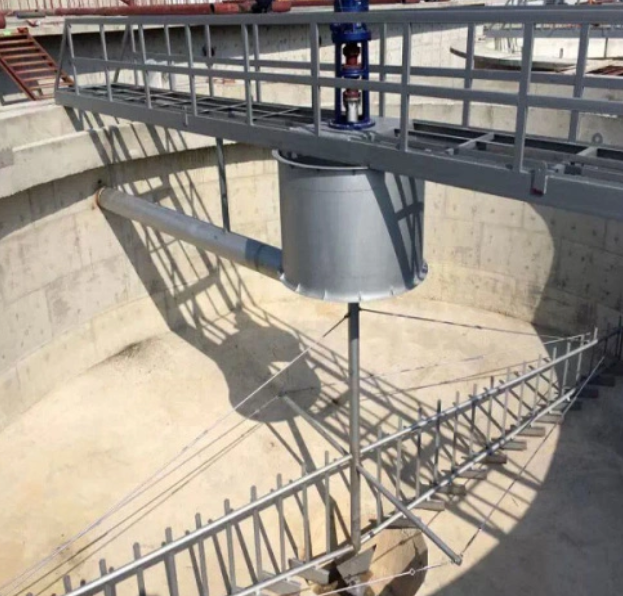

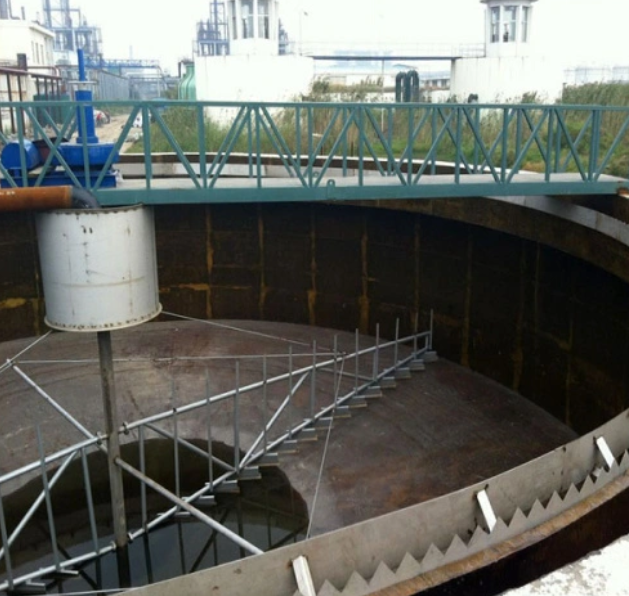

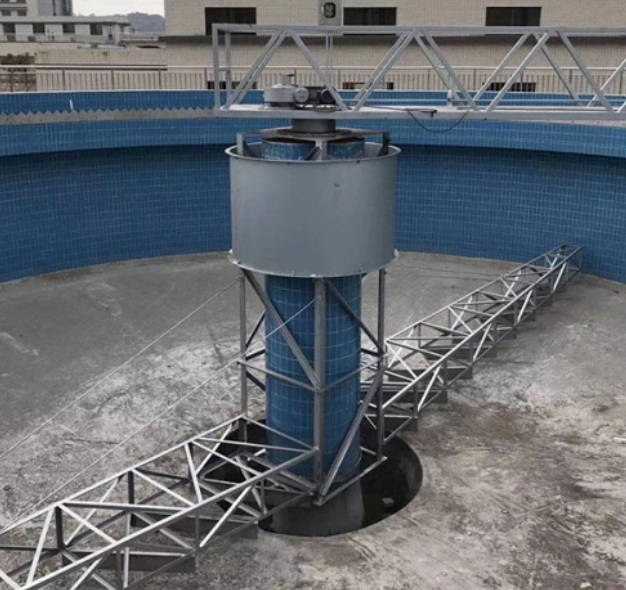

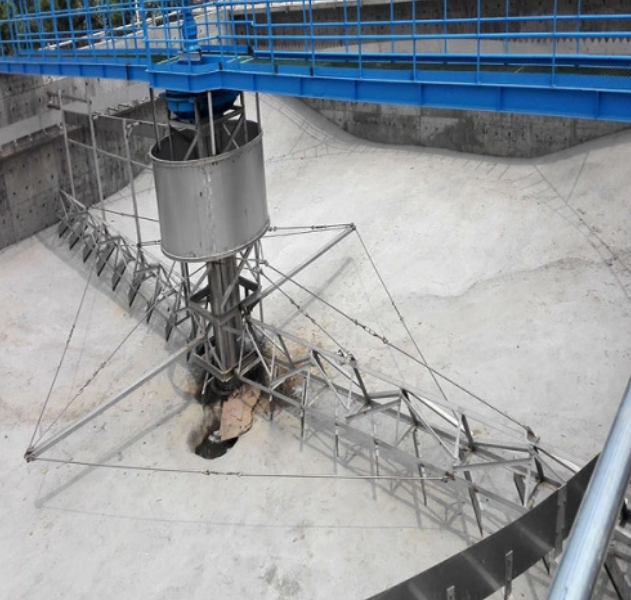

Hanging Central Drive Sludge Suction Dredger Structure &Working Principle
After The Raw Water Is Distributed By The Central Water Distribution Tube, It Flows Radially To The Overflow Tank Around The Pool. As The Flow Rate Decreases, The Suspended Solids In The Water Body Are Separated And Settle At The Bottom Of The Pool. The Supernatant Is Discharged Out Of The Pool Through The Overflow Weir Plate From The Outlet Tank. Through The Deceleration Drive And The Transmission Of The Suspension Components, The Scraper Scrapes The Sludge Into The Central Sludge Collection Tank, And Relies On Hydrostatic Pressure Or Pumps To Discharge The Sludge Out Of The Pool. The Middle Water Inlet And Mud Discharge Are Adopted, And The Peripheral Drainage Is Adopted To Ensure Uniform Water Flow. Self-Priming Sludge Discharge Using Liquid Level Difference, With Scum Scraping And Removal Device And Overload Protection Device.
Secondary Settler Centre Drive Slurry Scraper Applicant
-First Sedimentation Tank of STP, ETP, WWTP
-Secondary Sedimentation Tank of STP, ETP, WWTP
-Water Supply And Drainage Engineering
-Chemistry
-Aquaculture
-University Water Supply
-Food Processing
-Hotel
-Light Industry WWTP
-Metallurgy ETP
-Mining Coal Water Treatment
Model Instruction and Specification of Primary Clarifier Center Drive Sludge Skimmer
LFSS Full Bridge Center Drive Suspended Mud Scraper
Model | Pool DN (M) | Water Depth (M) | Pool Depth (M) | Linear Speed（M/Min） | Drive Power (kw) |
LFSS 4 | 4 | 2.8～3.6 | 3.2～4.0 | 1.0-2.0 | 0.37 |
LFSS 6 | 6 | 3.0～3.6 | 3.4～4.0 | 1.0-2.0 | 0.37 |
LFSS 8 | 8 | 3.2～4.0 | 3.6～4.4 | 1.0-2.0 | 0.37 |
LFSS 10 | 10 | 3.6～4.4 | 4.0～4.8 | 1.0-2.0 | 0.37 |
LFSS 12 | 12 | 3.6～4.4 | 4.0～4.8 | 1.0-2.0 | 0.55 |
LFSS 14 | 14 | 3.6～4.4 | 4.0～4.8 | 1.0-2.0 | 0.55 |
LFSS 16 | 16 | 3.6～4.4 | 4.0～4.8 | 1.0-2.0 | 0.75 |
LFSS 18 | 18 | 3.6～4.4 | 4.0～4.8 | 1.0-2.0 | 0.75 |
LFSS 20 | 20 | 3.6～4.4 | 4.0～4.8 | 1.0-2.0 | 0.75 |
