Full Bridge Peripheral Drive Sludge Scraper

 

Full Bridge Peripheral Drive Sludge Scraper

Payment Type: T/T

Supply Ability: 10 Sets Per Three Months

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LFPS-20

Brand: Loren

Applicable Industry: Food &Amp; Beverage Factory, Energy &Amp; Mining, Construction Works, Manufacturing Plant, Farms, Restaurant, Food &Amp; Beverage Shops

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Motor, Bearing

Old And New: New

Place Of Origin: China

Warranty Period: 1 Year

Service System: Online Support

Essential Performance: Dural Peripheral Drive Sludge Skimmer

Reducers: Optional Shaft-Mounted or Cyclonic one

Walking Wheel Material: Rubber or Steel. Nylon , Polyurethane

Scraper Plate Reliability: Efficient Logarithmic Spiral Type

Control System: Random And Remote Control.

Water-Touched Components: All Stainless Steel Structrue

Applicant: Sludge Collection and Purifier

Full ETP Solution: Available

Design: Simple and Compact

OEM ODM Service: Available

Product Description

Peripheral Drive Sludge Slurry Scraper Clarifier

Travelling Bridge Peripheral Drive Mud Scraper Definition

The Peripheral Transmission sludge scraper Is a Kind Of Equipment Used To Treat High-Concentration Wastewater, And Its Main Function Is To Remove The Sludge From The Sedimentation Tank Or Reactor. It Can Scrap The Bottom Tank Sludge Into The Sludge Collection Sink , And The Sink Sludge Will Then Be Discharged By Drainage Pipe To Facilitate Further Sludge Re-Flux Or Concentrated Dehydration. It Can Be Also Configure Tank Surface Skimmer As Per Real Working Circumstances To Collect Pool Surface Scum Which Will Then Be Discharged Out Of The Pool Via Scum Hopper

Peripheral Drive Transmission Sludge Collector Feature

- Simple Design Work Good-looking Bridge adopts Truss Structure.

- Maintenance Is Simple And Convenient With Low Operating Costs

- Multiplex Reducer Options:

A. Simple & Compact Shaft-Mounted One With Easy Maintenance;

B. Cycloid Reducer Has High Transmission Efficiency With Competitive Cost

- Multiple Optional Walking Wheel Material: Rubber (standard configuration) or Steel. Nylon , Polyurethane As Per Customized Requirement.

- The Efficient Logarithmic Spiral Scraper Plate Ensures Its Reliability

- Outdoor Safe & Reliable Electrical Components With Both Random And Remote Control.

- OEM manufactured or SS Water-Touched Components Available

Surface Bottom Peripheral Transmission Mud Skimmer Structure &Working Principle

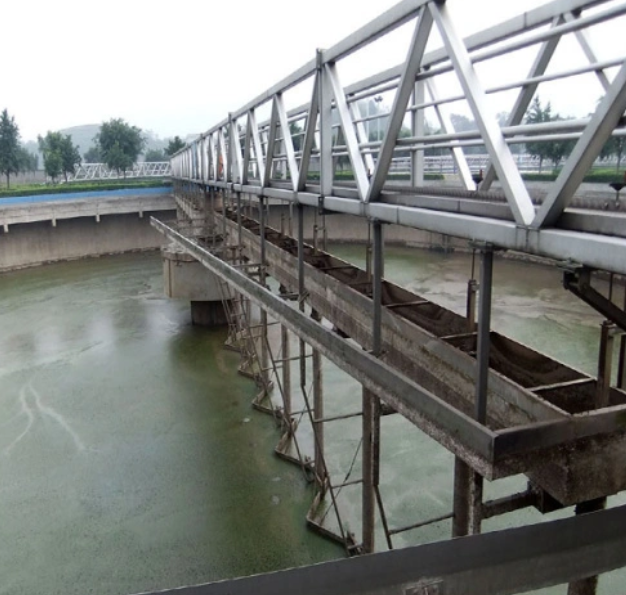

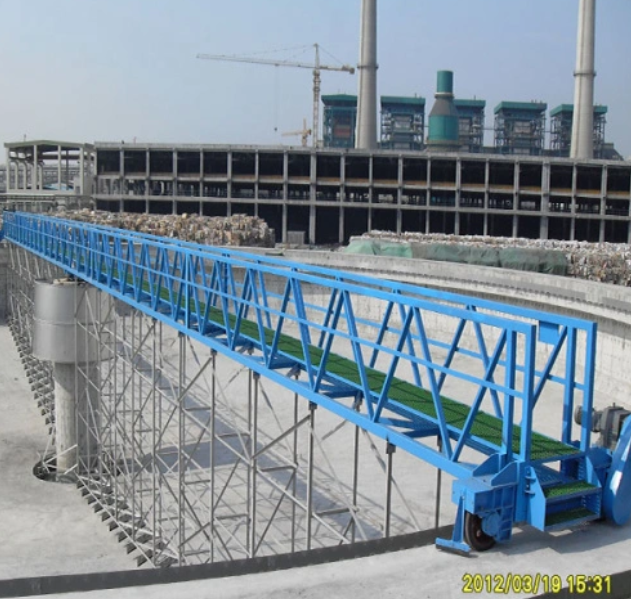

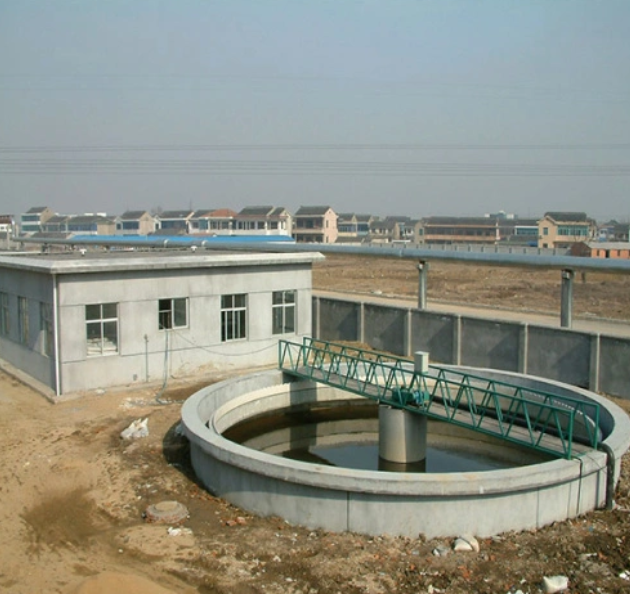

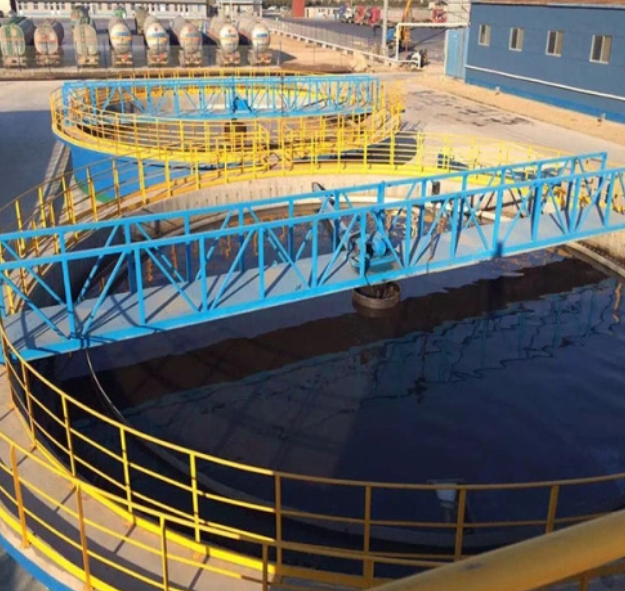

Peripheral Drive Scraper Can Be Divided Into Full And Half Bridge Styles

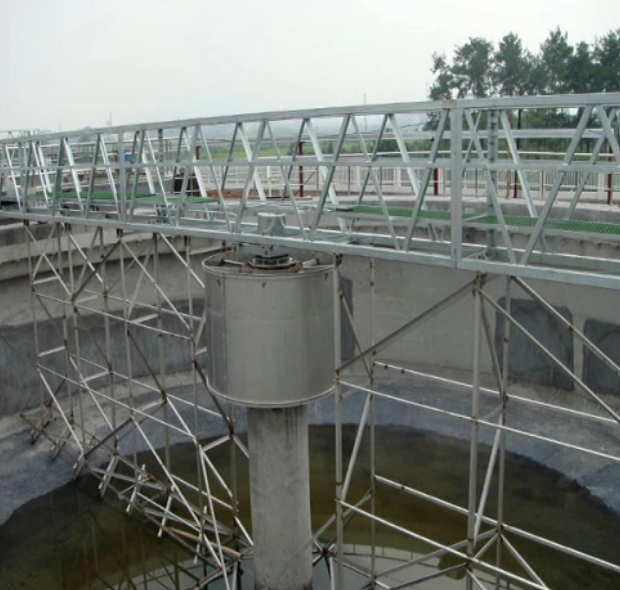

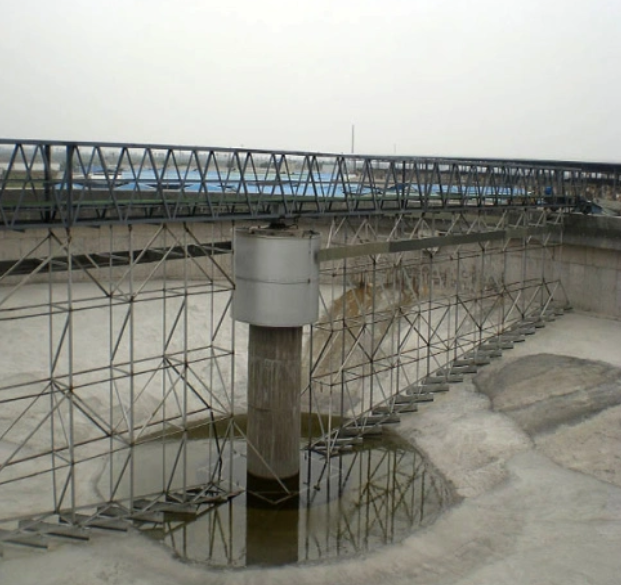

It Is Composed Of Such Main Parts As Working Bridge, Scraping Arm And Scraper Plate Assembly, Center Bearing, Drive Mechanism, Collector, Electric Control Box And Such Optional Parts As Triangular Water Outlet Weir Plate, Steady Flow Tube, Slag Plate, Scum Skimming Board And Other Accessories( Configure As Per Demand Of Customers) .

The Working Bridge Rotates Surrounding With The Center Pool Support Driven By Side Driving Mechanism The Scraping Arm Hanged Under The Bridge Rotates The Logarithmic Helix Plate, And The Settled Bottom Pool Sludge Is Collected Into The Central Sink By The Scraper Plate . The Scum On The Liquid Surface Is Concentrated In The Tapered Area Formed By The Dross Scraper And The Surrounding Slag Board, And The Scuffer Will Rake The Concentrated Scum Into The Sludge Silo Then Discharged Out .

Sludge Settling Tank Scraping Machine Applicant

-First Sedimentation Tank of STP, ETP, WWTP

-Secondary Sedimentation Tank of STP, ETP, WWTP

-Water Supply And Drainage Engineering

-Chemistry

-Aquaculture

-University Water Supply

-Food Processing

-Hotel

-Light Industry WWTP

-Metallurgy ETP

-Mining Coal Water Treatment

Full Bridge Radical Drive Sludge Scraper Model Instruction and Specification

LFPS

Pool Diameter (m)

Full Bridge Peripheral Drive Sludge Scraper

Full Bridge Scraper Technical Parameters Table

Model	Pool DN (M)	Water depth (M)	Pool depth (M)	Peripheral speed (m/min)		Power (kw)
Model	Pool DN (M)	Water depth (M)	Pool depth (M)	1^st Settler	2nd Settler	Power (kw)
LFPS18	18	2.6-3.6	3-4	≦3	≦2	0.55*2
LFPS20	20	2.6-3.6	3-4	≦3	≦2
LFPS25	25	2.6-3.6	3-4	≦3	≦2
LFPS30	30	2.6-3.6	3-4	≦3	≦2
LFPS35	35	2.6-4.1	3-4.5	≦3	≦2
LFPS40	40	2.6-4.1	3-4.5	≦3	≦2
LFPS45	45	2.6-4.1	3-4.5	≦3	≦2	0.75*2
LFPS50	50	2.6-4.1	3-4.5	≦3	≦2
LFPS55	55	2.6-4.1	3-4.5	≦3	≦2
LFPS60	60	2.6-4.1	3-4.5	≦3	≦2
