RLS Series Rake Lifting Type Truss Mud Skimmer

 

RLS Series Rake Lifting Type Truss Mud Skimmer

Payment Type: T/T

Supply Ability: 80 Sets Per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: RLS-4

Brand: Loren

Place Of Origin: China

Key Function: Removal Sludge or Sand In Rectanglular Pool

Design: Simple and Compact Structure

Horizontal Perforated Pipes: Don’t Interfere Pool Flow Density

Sludge Discharge Frequency: Can be Adjustable

Operation Cost: Lower due to little energy consumption

The Scum Removal Volume: Adjustable

Automation Control Degree: Highl

Life Time: Long lasting

OEM ODM After Sale Servie: Available

Maintenance: Easy due to top mounting

Product Description

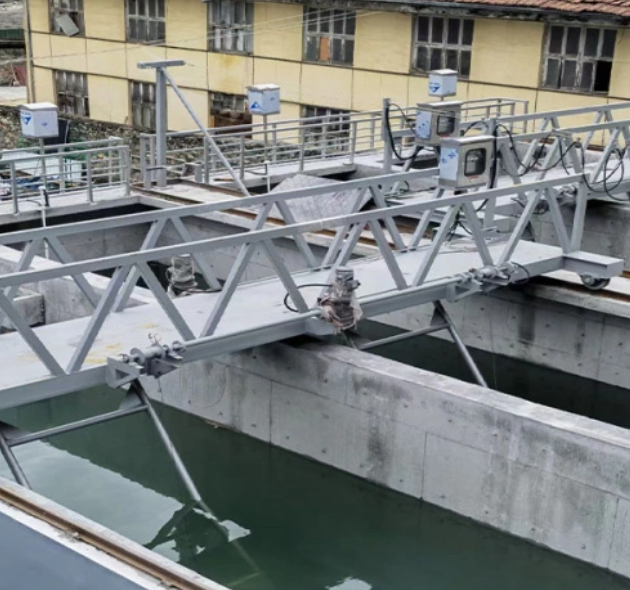

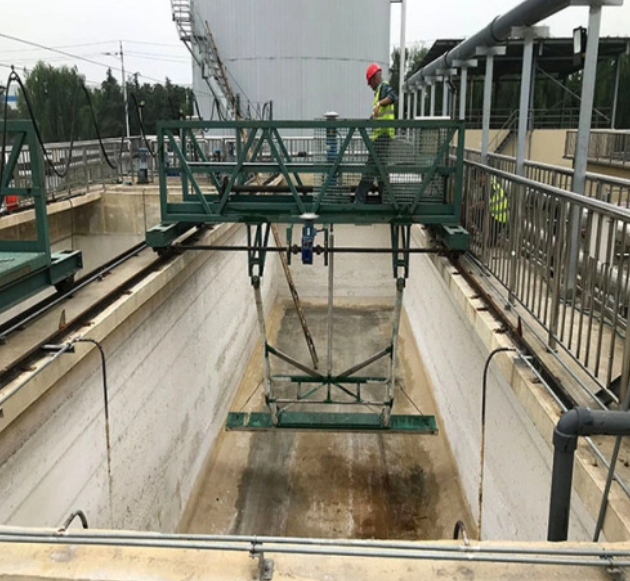

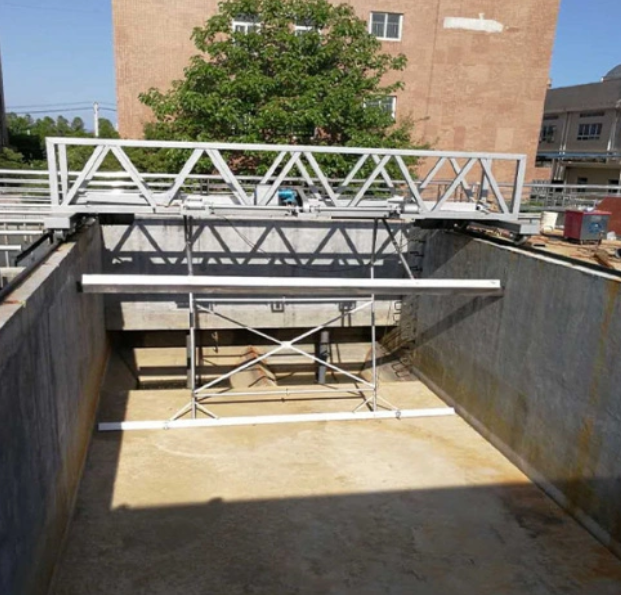

RLS Series Rake Lifting Type Truss Mud Skimmer

Definition of Rake Lifting Driving Sand Grid Separator

The Rake Lifting Type Truss Mud Skimmer Is Used For Advection Sedimentation In Sewage Treatment Plants And Waterworks. The Sludge Settled At The Bottom Of The Pool Is Scraped To The Suction Port Of The Pump, And The Sludge Is Sucked While Walking Through The Pump, And Then The Sludge Is Discharged Out Of The Pool, Which Can Be Relieved. The Pain Of Cleaning Up The Sludge At The Bottom Of The Pool.

Composition of Driving Type Mud Scraper Suction Machine

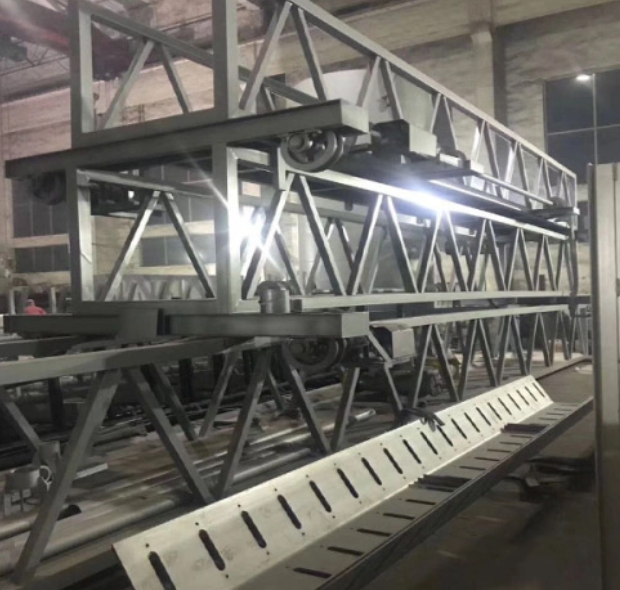

It Is Composed Of Working Bridge, Driving Traveling Device, Mud Suction System, Scum Skimming Device (Optional), Electric Control Cabinet, Siphon Generator (Siphon Mode), Etc. When Used In An Inclined Tube Sedimentation Tank, It Is Also Necessary To Install a Bottom Suction Frame And a Suction Hanger.

Feature of Driving Type Sludge Skimmer

-Work Back & Forth

-The Side-Section Design Ensures Uniform Water Distribution &Outflow.

-Over-Torque Protection Reducer Ensures Safe And Stable Operation

-Horizontal Perforated Mud-Discharged Pipes Don’t Interfere Pool Flow Density To Ensure The Stability Of The Water Outlet.

-Sludge Discharge Frequency &Working Schedule Can Be Adjusted According To The Sludge Deposition At The Bottom Of The Sedimentation Tank

- Simple and Compact Structure with Light Weight

-Simple Pool Structure Design

-Simple and Easy Maintenance

-Lower Operation Cost

-Flexible Control The Scum Removal Volume

-Stable Running and Operation

-High Automation Control Degree

-Long Lasting

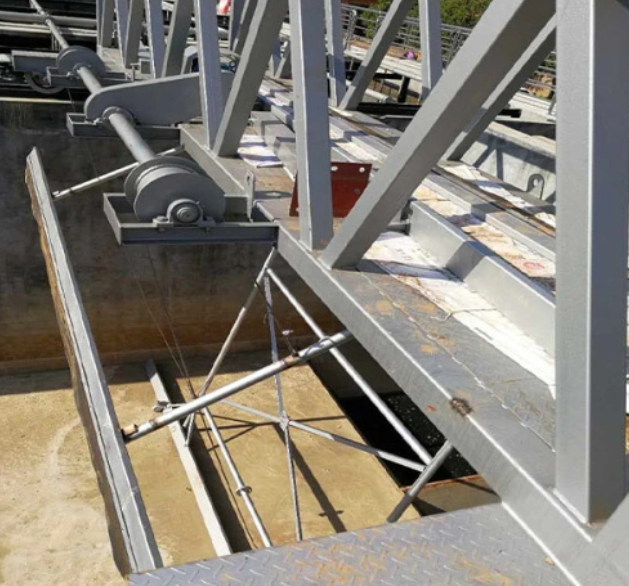

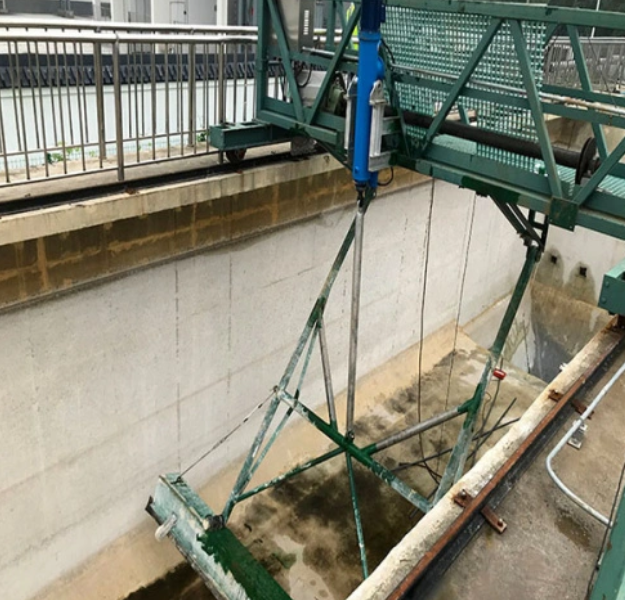

Structure &Working Principle

It Continuously Remove The Suspended Solids Floating On The Water Surface And The Sludge At The Bottom Of The Pool, And The Mud Scraper Moves Along The Surface And Bottom Of The Pool, And Pushes The Suspended Solids From The Inlet End Of The Liquid Surface To The Outlet End. The Scraper Of The Mud Scraper Is Fixed At Both Ends Of The Chain, And The Mud Scraper Is Driven By a Drive Sprocket Drive. The sludge scraper Moves Along The Entire Width Of The Trough, Scraping The Pollutants Into The Slag Discharge Chute And The Sludge Into The Sludge Hopper.

Applicant In Advection Sedimentation Tank Esp. Rectangular Pool

-Removal Bottom Sludge and Oil Grease or Jelly In Municipal Sewage

-Removal Bottom Sludge and Oil Grease or Jelly In Waterworks

-Removal Bottom Sludge and Oil Grease or Jelly In Industrial Waste Water

-Other Water Supply and Drainage Project like Steel ,Metallurgy, Mining etc

Model Instruction and Specification

RLS Serious Rake Lifting Type Truss Mud Skimmer

Model	Scraper Width (M)	Pool Width (MM)	Orbit Distance (M)	Linear Speed（M/Min）	Drive Power (kw)
RLS 4	4	3700	4	1.0-1.5	0.55
RLS 6	6	5700	6	1.0-1.5	0.55*2
RLS 8	8	7700	8	1.0-1.5	0.55*2
RLS 10	10	9700	10	1.0-1.5	0.55*2
RLS 12	12	11700	12	1.0-1.5	0.55*2
RLS 14	14	13700	14	1.0-1.5	0.55*2
RLS 16	16	15700	16	1.0-1.5	0.75*2
RLS 18	18	17700	18	1.0-1.5	0.75*2
RLS 20	20	19700	20	1.0-1.5	0.75*2
RLS 24	24	23700	24	1.0-1.5	0.75*2
RLS 26	26	25700	26	1.0-1.5	0.75*2
RLS 28	28	27700	28	1.0-1.5	0.75*2
RLS 30	30	29700	30	1.0-1.5	0.75*2
