Fast Magnetic Coagulation Settlers

Payment Type: T/T

Supply Ability: 80 Sets Per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LSM15

Brand: Loren

Status: New

Applicable Industry: Farms, Food &Amp; Beverage Shops, Hotels, Garment Shops, Restaurant, Manufacturing Plant, Food Shop, Printing Shops, Machinery Repair Shops, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Motor

Place Of Origin: China

Warranty Period: 3 Years

Productivity: 500l/Hour, 10000l/Hour, 100l/Hour, 1000l/Hour, 20000l/Hour, 750l/Hour, 250l/Hour, 125l/Hour, 4000l/Hour, 7500l/Hour, 5000l/Hour, 50000l/Hour, 2500l/Hour, 200l/Hour, 3000l/Hour, 2000l/Hour

Solve Issue: sludge filamentous bacteria swelling

Coagulation Reaction Time: 1-2 Minutes

Floculation Reaction Time: 2-4 Minutes

Magnetic Powder Reaction Time: 1-2 Minutes

Sludge Reflux Volume: 4%-8%

Sludge Discharge Density: 10-15 g/l

Lifting Volume: 15-40m/h

Support: Customized Design

Saved Dosing Chemical: 10%-50%

COD Removal Ratio: 20%-70%

Product Description

LMS Serious Magnetic Floculation Separator

Magnetic Floculation Separator Definition

It Is A Fast Sedimentation Machine by Mixing Strong Magnetic Powder With Little Coagulation or Floculation to Fasten Solid Liquid Separation under Recycled Magnetic Power System.

Magnetic Floculation Separator Feature and Advantages
-15-40M/H Fast Lifting Speed

- Minimal Operating Cost by Little Lost Circulated Magnetic Powder

-10%-50% Lower Chemical Dosing Volume

-Surface Load: 15-30m/h;

-HRT:About 20 Minutes From Water Inlet To Outlet

-Outlet Turbidity:<1.0 NTU

-Outlet Suspend Solid:<5.0 mg/L

-Visible View Depth:>3 Meters

-Total Phosphorous Removal: <0.2 mg/L

-COD Removal Ratio:>20-70% Than Normal Settler Tank

-Effectively Solve The Problem Of Sludge Filamentous Bacteria Swelling

-No Effect on Water Outlet Before Inlet High Suspend Solid Water Data

-Small Footprint

-Fit for Upgrading of Existed ETP ,STP, WWTP

--Can Get Different Outlet Criteria by Mixing Different Chemicals

-Higher Stability of Clean Water Outlet

-Strong Magnetic Strength with life time:>10 Year with 2% Lost

-Lower Running Noise

-Bigger Angle Magnetic Powder Distribution

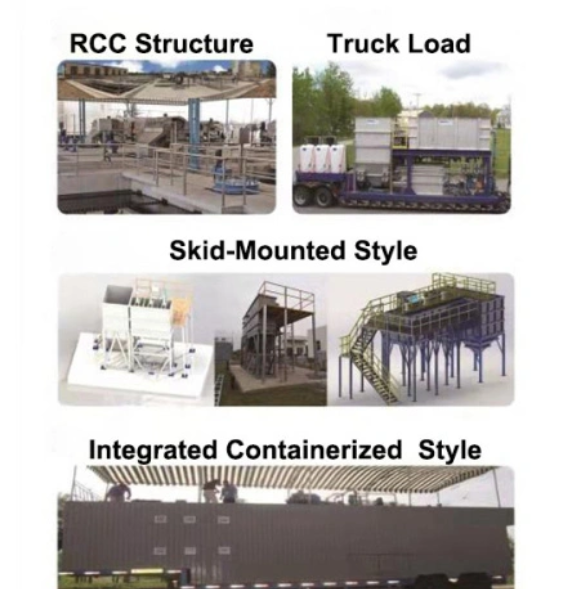

-Module Design Styles:RCC, Truck-Load, Skid Mounted,Containerized

-Fit for Maintenance by Module Design

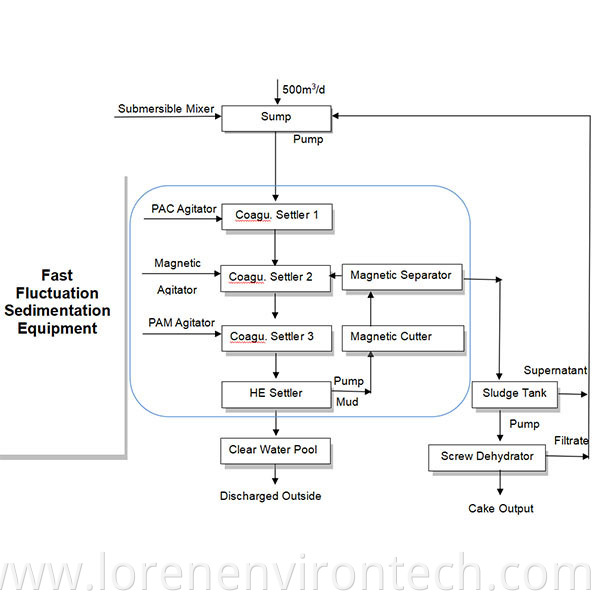

Magnetic Floculation Separator Working Process:

Magnetic Coagulation Precipitation Technology Is To Add Heavy Medium-Magnetic Powder To The Conventional Flocculation Precipitation Separation Process.So That The Flocs Produced By Flocculation Can Effectively Combine With The Load.Strengthen The Flocculation Effect.And Increase The Specific Gravity Of The Flocs (Magnetic Seed Specific Gravity 5.2～5.3) ，The Floc Sedimentation Speed Is Accelerated (Up To 20～40m/h).So That The Water Body Is Quickly Purified.The Effluent Is Clear And Transparent.The Sediment Sludge Is Sent To The Magnetic Separator To Recover The Magnetic Powder For Recycling.And The Sludge Is Discharged To The Sludge Dewatering System For Dehydration Treatment.

Low Cost Fast Magnetic Coagulation Sedimentation Machine Model Selection

SN	Model	Capacity(M3/d)	Drum Diameter	Power (kw)
1	LMS-15	360	500-700	1.5+1.5
2	LMS-30	720	600-800	2.2+1.5
3	LMS-45	1080	800-1000	3.0+2.2
4	LMS-60	1440	1000-1200	4.0+2.2

Magnetic Floculation System For High Speed Precipitation Applicant

-Upgrading of Waste Water Treatment Plant

-Deep Total Phosphorous Removal

-Deep Suspend Solid Removal

-River Black And Smelly Water Treatment

-Heavy Metal Waste Water Treatment

-Oily Water Treatment

-Municipal STP

-Industrial ETP

-Waterworks Removal Phosphorus, Algae and Softening
