Sludge or Slurry Compactor Machine

Sludge or Slurry Compactor Machine

Payment Type: T/T

Supply Ability: 10 Sets Per Month

    Contact Now
    Share:
    Product Attributes Supply Ability & Additional Information
    Product Attributes

    Model No.: LVF-85

    Brand: Loren

    Applicable Industry: Food &Amp; Beverage Factory, Energy &Amp; Mining, Construction Works, Manufacturing Plant, Food Shop, Farms

    Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

    Video Factory Inspection: Provided

    Mechanical Test Report: Provided

    Marketing Type: Ordinary Product

    Core Component Warranty Period: 1 Year

    Core Components: Motor, Plc

    Old And New: New

    Place Of Origin: China

    Warranty Period: 1 Year

    Service System: Free Spare Parts

    Special Design: With Vacuum Device

    Filtration Efficiency: High

    Work Duty: S1

    Outcome Sludge Cake: Lower Moisture

    Operation: Flexible

    Maintenance: Easy and Simple

    Applicant: Widely

    Response Of After Sale Service: With 8 Hours Solution

    Design: Compact Design

    OEM ODM Service: Available


    Product Description

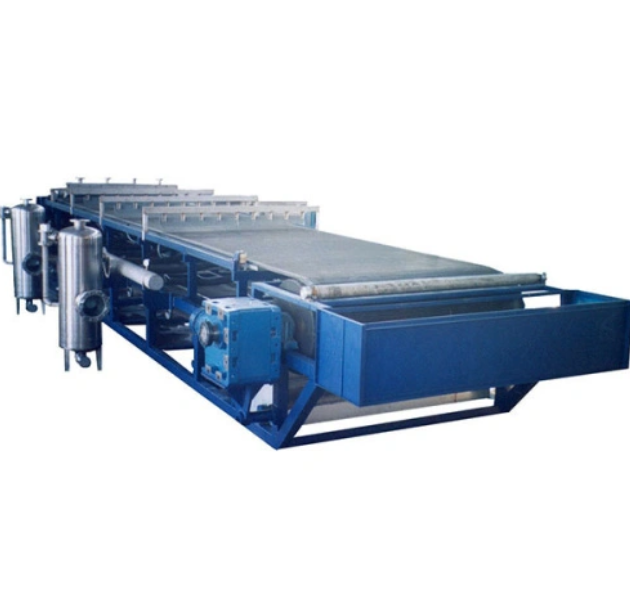

     LVF Series Vacuum Belt Filter

    Vacuum Belt Filter Definition

    It Is A High Efficiency Solid Liquid Separation Machine with Vacuum Box Device to Continuously Carry on Solid Liquid Separation and Pressing Sludge Cake and auto filtrate cloth flushing system



    Vacuum Belt Press machine Applicant

    -Metallurgy

    -Mine Exploitation

    - Power Plant Flue Gas Desulfurization

    -Coal Chemical Industry

    -Paper Making

    -Food Processing

    -Pharmaceutical Industry

    -Environmental Protection

    -Water Treatment Plants

    - Other Solid Liquid Fields with Strong Acid or Alkaline Liquid



    Soda Plant Vacuum Filter Feature and Advantages
    -24 Hours Continuously Working

    -Automatic Filtering, Cleaning , Slag Discharging and Cloth Flushing.

    - High Filtration Efficiency

    -Large Cake Produced Capacity

    -Lower Moisture of the Pressed Sludge Cake

    -Flexible Operation

    -Simple Maintenance


    Phosphoric Acid Liquid Purifier Model Selection

    Model & Area

    (M2)

    Filter Dimension

    (L*W) M

    Machine Dimension

    (L*W*H) M

    Weight (kg)

    LVF-2

    4*0.5

    7.82*2*2

    3000

    LVF-3

    6*0.5

    10*2*2

    3400

    LVF-5

    5*1.0

    9*2.2*2

    5300

    LVF-6

    8*1.0

    10.5*2.6*2

    5800

    LVF-8

    8*1.0

    12.5*2.8*2

    6300

    LVF-10

    10*1.0

    14.5*2.8*2

    6800

    LVF-12

    12*1.0

    16.5*2.8*2

    7300

    LVF-14

    14*1.0

    18.5*2.8*2

    7800

    LVF-16

    8*2.0

    12.7*4.2*2.2

    14200

    LVF-20

    10*2.0

    14.7*4.2*2.2

    15400

    LVF-24

    12*2.0

    16.7*4.2*2.2

    17200

    LVF-28

    14*2.0

    18.7*4.2*2.2

    18700

    LVF-32

    16*2.0

    20.7*4.2*2.2

    20200

    LVF-36

    18*2.0

    22.7*4.2*2.2

    21700

    LVF-40

    16*2.5

    21.5*4.8*2.4

    29500

    LVF-50

    20*2.5

    25.6*4.8*2.4

    38600

    LVF-60

    20*3.0

    25.6*5.5*2.8

    35200

    LVF-70

    18*4.0

    25.6*5.5*2.8

    56200

    LVF-80

    20*4.0

    26.1*7.1*3.3

    58800

    LVF-90

    20*4.5

    26.5*7.5*3.6

    72000

    LVF-100

    22*4.5

    28.5*7.5*3.6

    75200

    LVF-110

    24*4.5

    30.5*7.5*3.6

    78400

    LVF-125

    28*4.5

    34.5*7.5*3.6

    84800

    LVF-135

    30*4.5

    36.5*7.6*3.6

    88000

    LVF-145

    32*4.5

    38.5*7.6*3.6

    93000

    Comment:The Above Data is only for Reference, Pls Subject To Our Finally Confirmation
