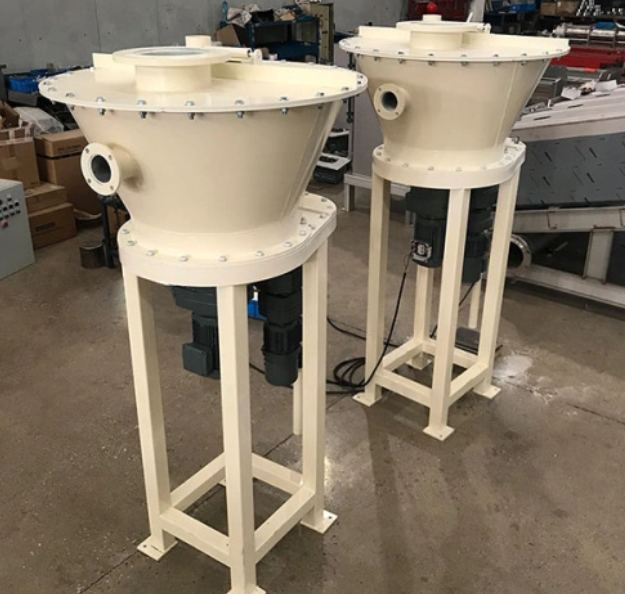

Loren LDF Series Disc Metering Feeder

Payment Type: T/T

Supply Ability: 20 Sets Per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LDF-6

Brand: Loren

Applicable Industry: Food &Amp; Beverage Shops, Farms, Building Material Shops, Manufacturing Plant, Food Shop, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Gearbox, Gear, Motor

Status: New

Engine Type: Electric

Place Of Origin: China

Warranty Period: 1 Year

Essential Function: Auto Material Feeding System

Continuous Performance: Excellent

Large: Load Capacity or Slewing Support

Feed: Evenly & Averagely

Adjustable: Exciting Force

Flow Control Or Change: Flexible at Any time

Operate And Maintenance: Easily

Low: Noise

No: Flushing Phenomenon

Long: Serving Life

Product Description

oren LDF Series Disc Metering Feeder

Double Disc Wholesale Bowl Vibrating Feeding Machine Definition

The Disc Feeder Is a Commonly Used Feeding Equipment For Medium & Fine-Grained Materials.It Can Evenly Send Materials To The Next Equipment, Which Not Only Saves Human Labor, But Also Avoids Damage To The Equipment Caused By Too Much And Sometimes Too Little Feeding, And Extends The Service Life Of The Entire Production Line Equipment To a Certain Extent.

The disc feeder consists of a driving device, the feeder body, a belt conveyor for metering and a metering device.

Electromagnetic Screw Conveyor Feeder System Round Feeder Feature & Merit

-Simple Structure

-Large Load Capacity due to Large Slewing Support Design

-Stable Vibration and Auto Self-Lubricated To Improve its Reliability

-Feed Evenly

-Excellent Continuous Performance

-The Exciting Force Is Adjustable

-Change and Control Flow At Any Time

-Easy to Operate

-The Eccentric Block Is The Excitation Source,

-Low Noise

-Less Power Consumption

-Good Adjustment Performance,

-No Flushing Phenomenon

-If Adopts Enclosed Frame, Can Prevent Dust Pollution

-Feeder Body and Sleeve Cylinder Can be Module Design

-Long Serving Life

Mining Automatic Rotary Disc Feeding Escaper Equipment Working Principle

The Motor Drives The Disc Through The Reducer Through The Coupling. When The Disc Rotates, The Material In The Bin Moves With The Disc, And Moves To The Side Of The Discharge Port, And The Material Is Discharged Through The Gate Or Scraper To Enter Next Machine Or Process . The Discharge Volume Can Be Adjusted By Scraper Device Or Gate

Applicant

-Mining Industry

- Metallurgy,

-Coal Preparation & Ore Dressing

-Building Materials Processing

-Chemical Industry

- Mineral Processing

-Sintering

-Electric Power Plant

-Waste Water Treatment Plant

--Pharmaceutical Factory

-Fertilization

Main Technique Parameter & Model Selection

Model	Capacity (M3/h)	Disc DN (MM)	Drive Speed (RPM)	Power (KW)	Grain Size(mm)	Weight (kg)
LDF-6	0.7-5	600	1.5	0.5	25	580
LDF-8	1.2-8	800	1.5	1.0	30	600
LDF-10	2.6-17	1000	1.5	1.5	40	650
LDF-13	4.3-28	1300	3.0	3.0	40	1100
LDF-15	5-30	1500	4.0	4.5	50	1300
LDF-16	7-49	1600	5.5	3.0	60	1400
LDF-18	9-60	1800	5.5	6.0	70	1500
LDF-20	14-38	2000	5.5	9.0	80	1800

Maintenance and Notice

-Regularly Fix Or Replace Disc Wear Resistant Lining

-Make Sure Lube Oil Enough in All Driving Parts

-Feed Lifting Device Must be Flexible and good working

-Gaps Among Screw Material Conducted Plates no More Than 10 mm

-Replace Screw Material Conducted Plate after Long life Run (Weared)

-Discharged Scraper Distance with Disc no more than 12mm Mounting

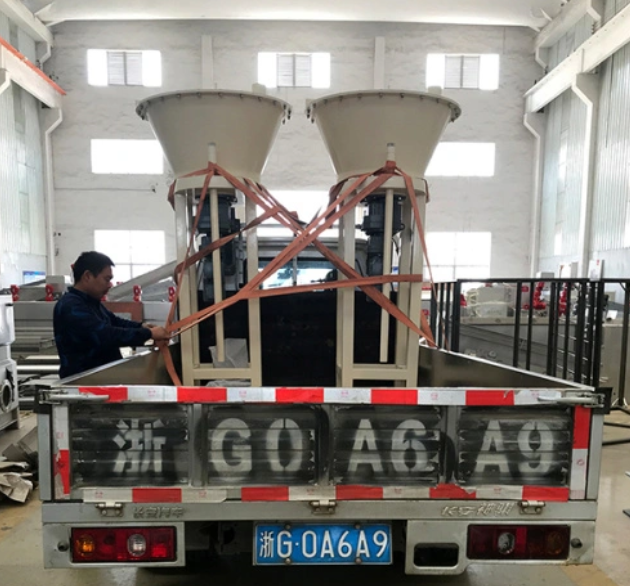

Packaging & Delivery
