Loren Multiple Channel Jet Areator

Payment Type: T/T

Supply Ability: 100 Sets Per month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LBA-50

Brand: loren

Status: New

Warranty Period: 2 Years

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 3 Years

Core Components: Pressure Vessel

Place Of Origin: China

Core Selling Point: Long Service Life

Three Function: Mixing , Oxygen Enrich and Aeration Boosting

Working Air Volume: 120-1200 m3/h Per Set

-Working Water Depth: 5-13 Meters deepth

Max. Air Throught Volume: 580m.h

With 20%: Fluctuation of Air and Oxgen Regulation Range

Service Area: 50-250 square meters

Oxygen Charging Capacity: 76.5-89.6 kg O2/H . Per Set

OEM ODM Service: Available

Turnkey Solution And Consutant: Available

Teamwork Or Agent Or Representative: Available

Product Description

Loren Multiple Channel Jet Areator （HS Code:8421299090）

Definition of Loren Butterfly Jet

It Is An Idea Device for Both Aeration and Oxygen Boosting to realize function of Mixing and Conditioning.which fit for Two Stage Mixing, DAF Air Injection, Water Pool Oxgen Boosting, Activated Sludge Pool , MBR, SBR, CASS Pools etc .

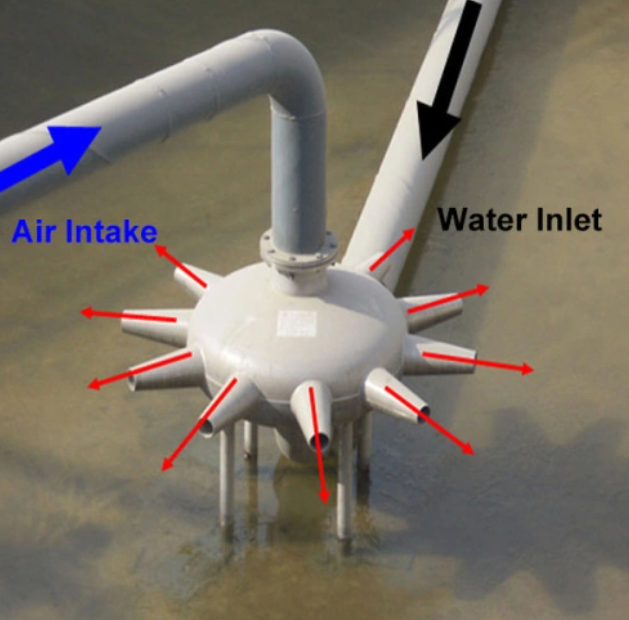

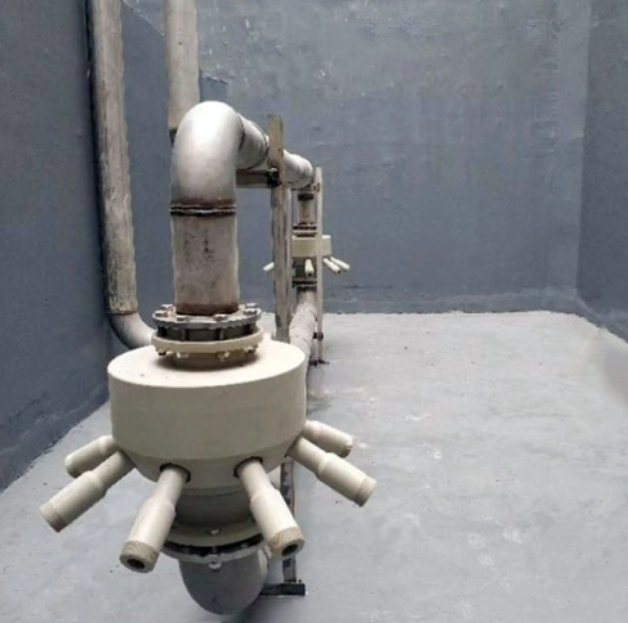

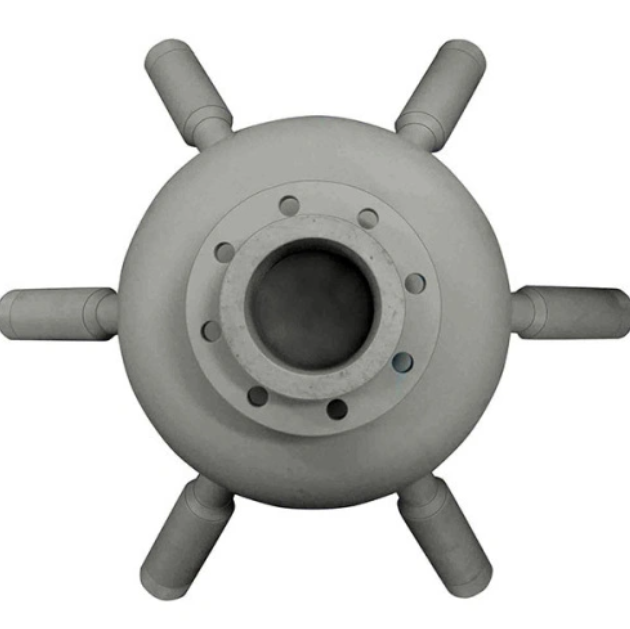

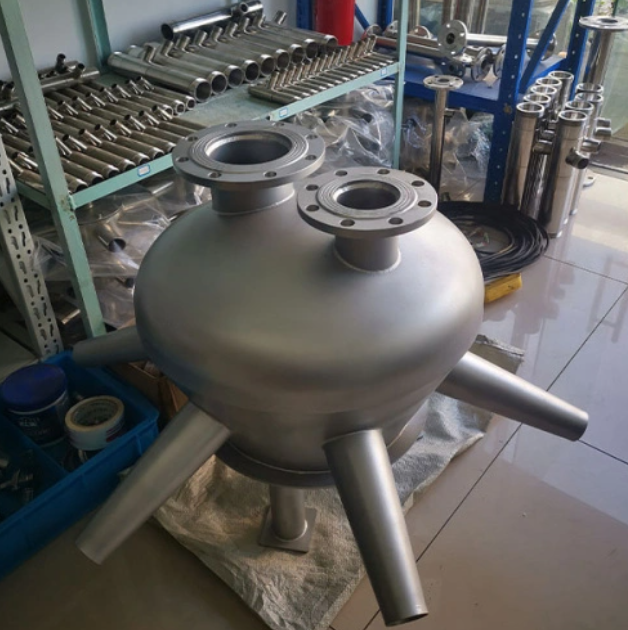

It is mainly composed of Outer and Inner Chambers, Mixed Chamber, outer and inner spraying nozzles , Air Intake and Liquid Inlet . itself doesn’t include any driving part, during working, need configure matching Injected circulated pump or blowers .

Performance Parameter of this Vortex Aerator

-Working Air Volume: 120-1200 m3/h Per Set

-Circulated Water Volume: 75-500 m3/h Per Set

-Oxygen Utilization Ratio:20-28.2%

-Oxygen Charging Capacity: 76.5-89.6 kg O2/H . Per Set

-Power Efficiency: 4.17-5.36 kg O2/KW.H

-Service Area

A. High Ammonia Nitrogen Industrial Wastewater:50-150 M2

B. City Sewage: 100-250 M2

Feature of Our Excellent Jet Areatror

-Working Water Depth Double Times than Ordinary Aerator (5-13m)

-Long Time Runn Without Blocking

-No Sealing Problem

-Higher DO Charging , Mixing and Thrust Flow Efficiency ,

-Max. Air Throught Volume:580m.h

-Large Sevice Area

-20-50% Higher Energy Saving For Its Power System

-When Feeding Air with both Oxygen and Mixing Function, Stop Air with Mixing Function

-Have 20% Fluctuation of Air and Oxgen Regulation Range which fit for VF control the Aerator System

-Easy Flange Mounting and Operation

-Flexible for Both Continuous and Sequency Aeration System

-Can Largely Improve Current System Capacity and Efficiency (upgrading)

-Compact Structure

-Long Working Life

Model Selection and Parameterof Butterfly Aerator

Model	LBA-50	LBA-60	LBA-80	LBA-100
Outer Dimension (DN*H) mm	500*400	600*500	1000*650	1400*700
Inner Sprayer DN(mm)	12	14	40	50
Outer Sprayer DN(mm)	25	30	80	80
Spray Nozzle NO.(pcs)	6-10	8-10	12	12
Single Nozzle Liquid Volume (M3/h)	6-14.5	12-24	15-30	30-60
Single Nozzle Air Volume (M3/h)	15-48	18-54	26-78	48-150
Air/Liquid Joint DN (mm)	80/100	100/150	150/200	200/300
Service Area	≥50	≥60	≥80	≥100

Applicant of loren Butterfly Jet Aerator

-Garbage Leachate

-Kitchen Wastewater

-Petrochemical

-Dyeing and Printing

-Coal Chemistry

-Paper mill

-Starching Industry

-Achohol Waste Water

-Food Processing Waste Water

-Other Waste Water site

-Old Aeration Pool Upgrading
