Air Dispenser

Payment Type: T/T

Supply Ability: 500 sets per month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LTV-3

Brand: loren

Applicable Industry: Food &Amp; Beverage Factory, Printing Shops, Advertising Company, Construction Works, Garment Shops, Hotels, Building Material Shops, Farms, Restaurant, Energy &Amp; Mining, Manufacturing Plant, Home Use, Food &Amp; Beverage Shops, Machinery Repair Shops, Food Shop, Other

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Pressure Vessel

Place Of Origin: China

Warranty Period: 1 Year

Productivity: 500l/Hour, 50000l/Hour, 4000l/Hour, 7500l/Hour, 2500l/Hour, 100l/Hour, 1000l/Hour, 10000l/Hour, 2000l/Hour, 750l/Hour, 3000l/Hour, 20000l/Hour, 200l/Hour, 250l/Hour, 5000l/Hour, 125l/Hour

Key Function: gas liquid dispensor

Can Work: Under 0.02Mpa Pressure

Can Release: dissolved air or gas into the machine

Micro-bubble Ranges: 15-30 microns

99%: Releasing Efficiency

Cleaning: Automatic

Anti-block: perormance

Long: life sevice

Widely: applicated

Product Description

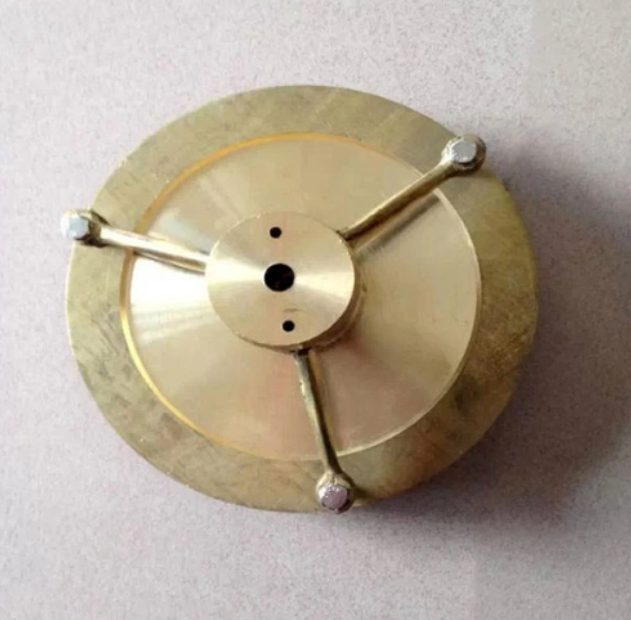

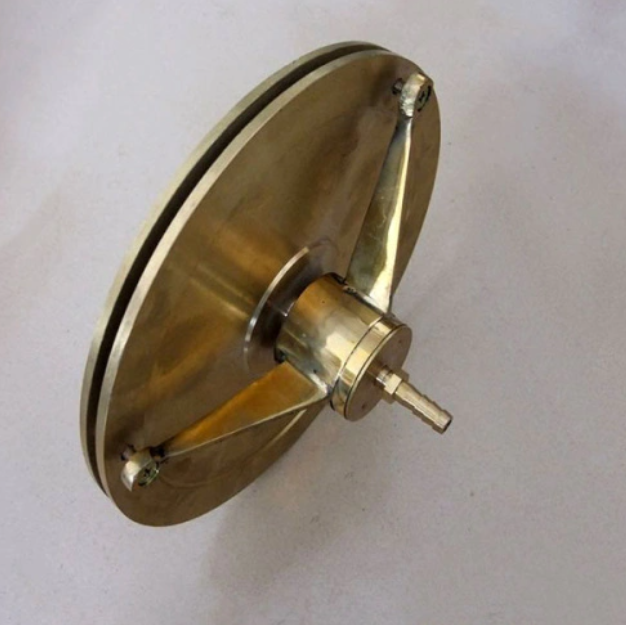

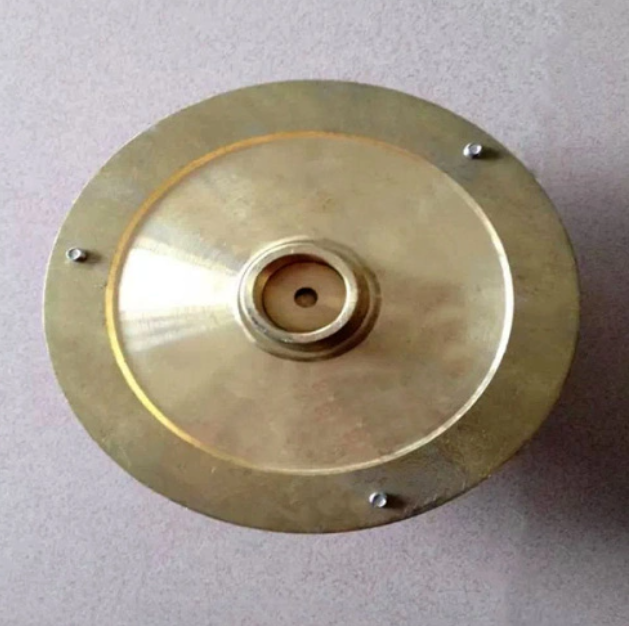

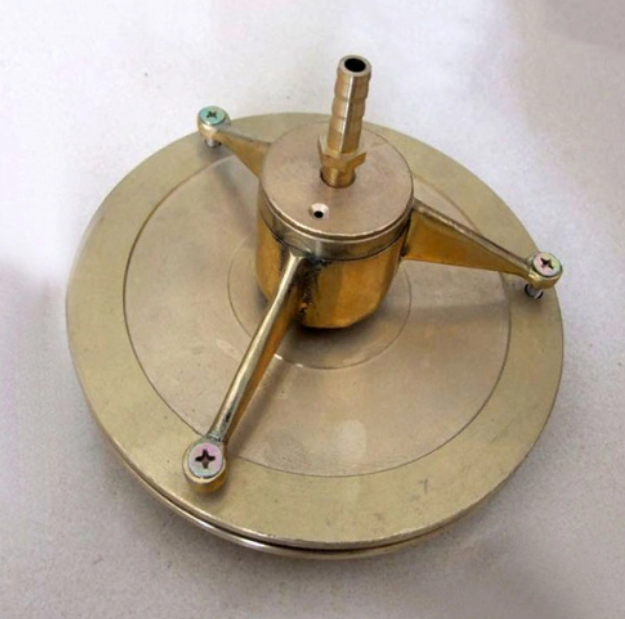

Loren LTV Model Air Dispenser

Definition of the air releasor

A Dissolved Air Releasor Is a Crucial Component In Various Industries Where The Presence Of Dissolved Air Can Cause Problems, Such As In Water Treatment, Food And Beverage Production, And Manufacturing Processes.

It Is a Device Or Process Used To Remove Dissolved Air From a Liquid, Typically Water.
It Works By Reducing The Pressure Of The Water, Allowing The Dissolved Air To Be Released As Bubbles. This Can Be Achieved Through Various Methods, Such As Using a Venturi System, a Degassing Tower, Or a Dissolved Air Flotation (Daf) System.

Characteristic of LTV Series Air Jet

-Can Work Effectively Under 0.02Mpa Pressure

-Distribution Uniformity Of Effluent

-Increases the Colliding Between Micro-Bubbles and Impurities Inside the Effluent

-Generated Micro-bubble Ranges:15-30 microns

-Over 99% Releasing Efficiency

-Automatic Cleaning

-Anti-block Effectively

-Multiple Connected Pipeline: DN15-DN50

-TSS Inlet or Outlet Data Normally: 2000 or 100 mg/l

Application of Air Injector

-Dissolved Air Dispenser Is a Key Device In DAF Machine. Pressure Dissolved Air Water Release Lots Of Micro Bubble Only Get Through This Device.

-Aeration Pool as Aeration Injector

-Combined with Submersible Agitators or Mixers

Main Octagon Releaser Technical Parameter And Size

Model	Inlet DN (mm)	Vacuum φ×（mm)	Flow(m³/h) at 2.0-4 Mpa pressure	Effect DN mm)
LTV-1	DN15	10	0.95-1.50	400
LTV-2	DN25	10	2.00-3.18	600
LTV-3	DN40	10	2.70-4.30	800

Mounting Instruction

-Assure main and branch Air pipes flushed before Mounting

-Make Sure Its Vacuum End is At The Bottom When Installment

-The Ejector&Its Control Gate Layout Must Be Convenient For Operation.

-Must Be Installed horizontally to prevent uneven Flow Distribution

-Adopts An Elbow at Outlet End instead of Long Pipe if Gas line Direction Change.
