Fuel oily Water Dispenser

Payment Type: T/T

Supply Ability: 50 Sets Per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LA-1150

Brand: Loren

Status: New

Applicable Industry: Food &Amp; Beverage Factory, Construction Works, Energy &Amp; Mining, Manufacturing Plant, Food &Amp; Beverage Shops, Retail, Machinery Repair Shops, Advertising Company

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): India

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 3 Years

Core Components: Bearing

Place Of Origin: China

Warranty Period: More Than 5 Years

Productivity: 2500l/Hour, 10000l/Hour, 1000l/Hour, 2000l/Hour, 3000l/Hour, 5000l/Hour, 4000l/Hour, 50000l/Hour, 7500l/Hour

Key Applicant: Oily Water Related Purifier and Biological Pool Areation

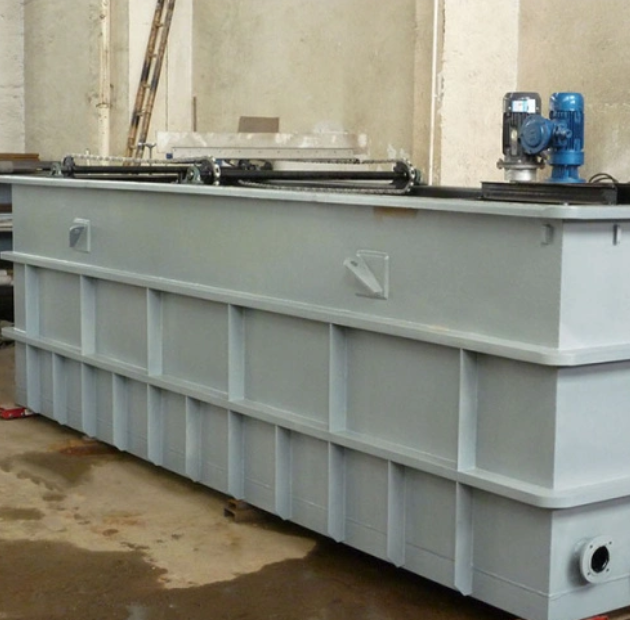

Combined With: Cativation Air Floation Machine Tank

Treated Capacity: Large for single one unit

Can Be: Multiple ones Joint working together

Micro Bubble Lifting Speed: Very Fast and Short Time

Micre Bubble HRT: 15-30 Seconds

Longer: Sevice Life

Replacement Of: Replace Air Compressor or other Dispenser

Clogging Performance: None

Run: Stabable and Effective

Product Description

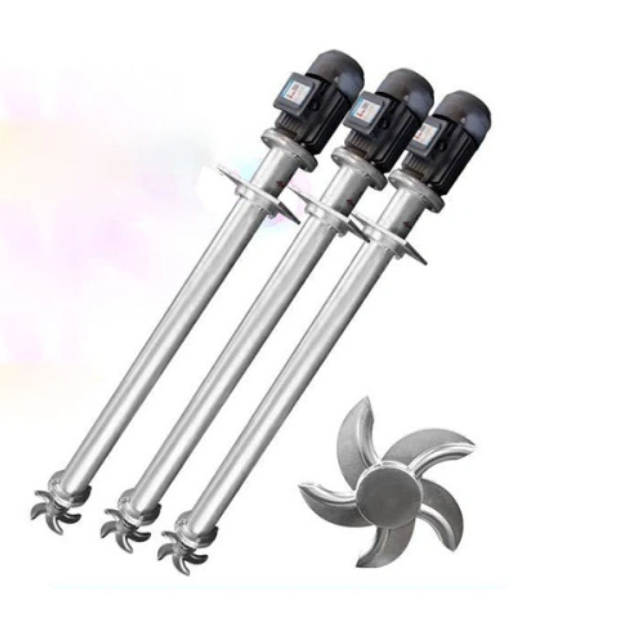

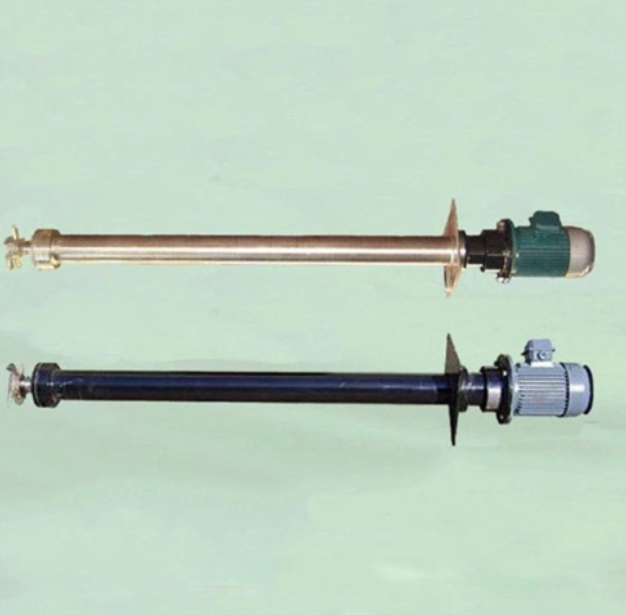

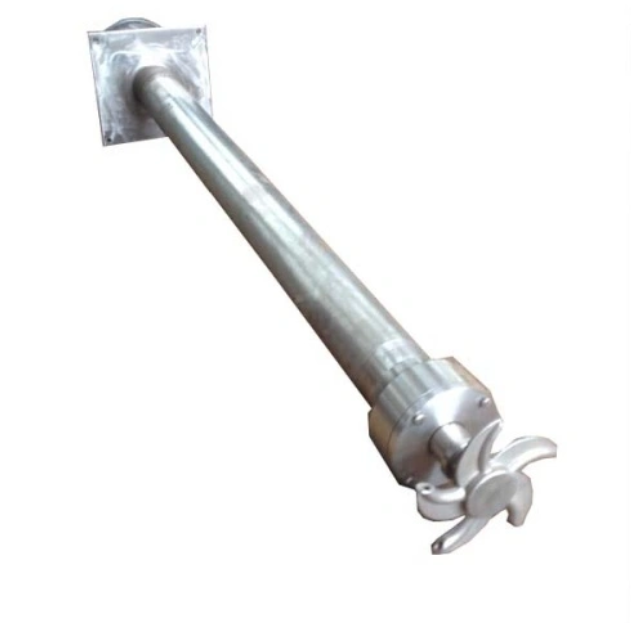

CAF Fuel Oil Dispenser Aeration System

Definition and Working Principle of Trap Water Dispenser

Loren Cavitation Air Flotation Machine Aerator is An Idea Suspend Solid Water Separation Machine Esp. For oil water separation

Its High Speed Motor will Rotate with High Speed Impeller with Water to Generate Negative Pressure by naturally Absorbing the Normal Air in The Outside Atmosphere thus to generate DN40-80 um Micro Bubble (HRT: 15-30 Seconds ) which will take the suspend solid and oil lifting on the water surface to form Layer Sludge or Scum being Drain Out By Matching Skimmer or Scraper, While the below water will remain clean for next process dealing

Composition of Beverage Dispenser

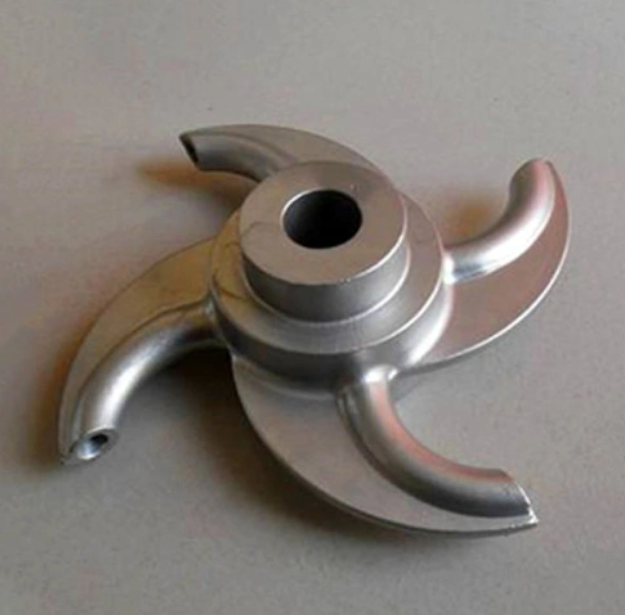

The Micro Aerator consists of a Motor, Motor Base, Fixed Square Plate, Coupling, Central Suction Rotating Shaft, Fixed Rotating Bearing, Outer Cylinder, Oil Seal, Mechanical Water Seal, Aeration Impeller Etc.

Feature of bottom load water dispenser

-Large Scale Oil and Suspend Solid Treated Capacity

-Micro Bubble Lifting Speed is Very Fast

- Little Power Consumption

-Little Noise

-Simple Structure and Easy Maintenance

-Long Working Life

-Can Be Used to Replace Air Compressor or other Dispenser

-Stable Operation

-No Clogging Performance

-Can Choose One Set or Multiple Set for Working

Loren CAF Application Fields of SS and Cod Removal

-Oil Plant and Oil Refinery

-Chemical Industry

-Textile

-Food

-Papermaking

-Printing And Dyeing

-Brewing

-Pharmaceutical

-Tanning

-Sugar Making

-Slaughter

-Municipal

-STP

Main Parameter of The Matching olive oil dispenser Aerator

SN	Model	Power (kw)	Pool Depth （MM）	Water Depth (MM)	Capacity (M3/h)
1	LA-950	1.5	1000	800	5-80
2	LA1150	1.5	1200	1000	5-80
3	LA-1450	2.2	1500	1300	5-80
4	LA-1750	2.2	1800	1600	5-80
5	LA-1950	2.2	2000	1800	5-80
6	LA-2150	3.0	2200	2000	5-80
7	LA-2350	3.0	2400	2200	5-80
8	LA-2550	3.0	2600	2400	5-80

Comment:

1. Material Optional: CS, SS304,SS316, Duplex Steel 2205 etcs

2. Accept Special Customized Design or Order

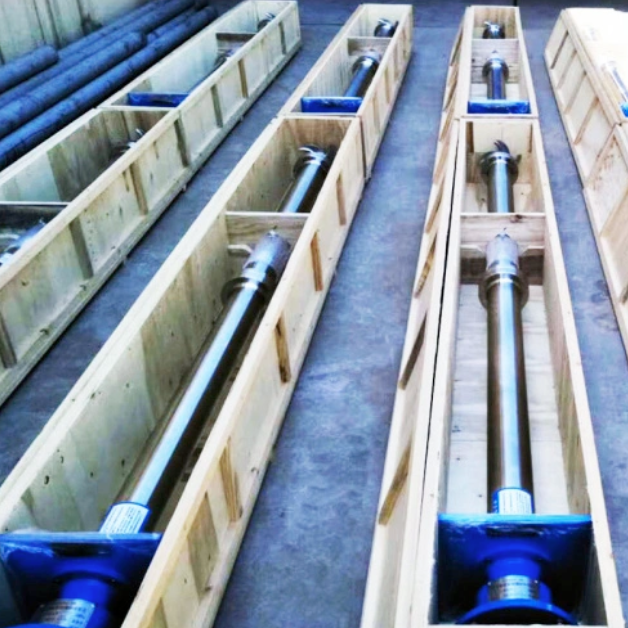

Packaging & Delivery
